ASSEMBLY INSTRUCTIONS
Quadro Loop
2P workstation
Sizes: 1200, 1400, 1600, 1800 mm

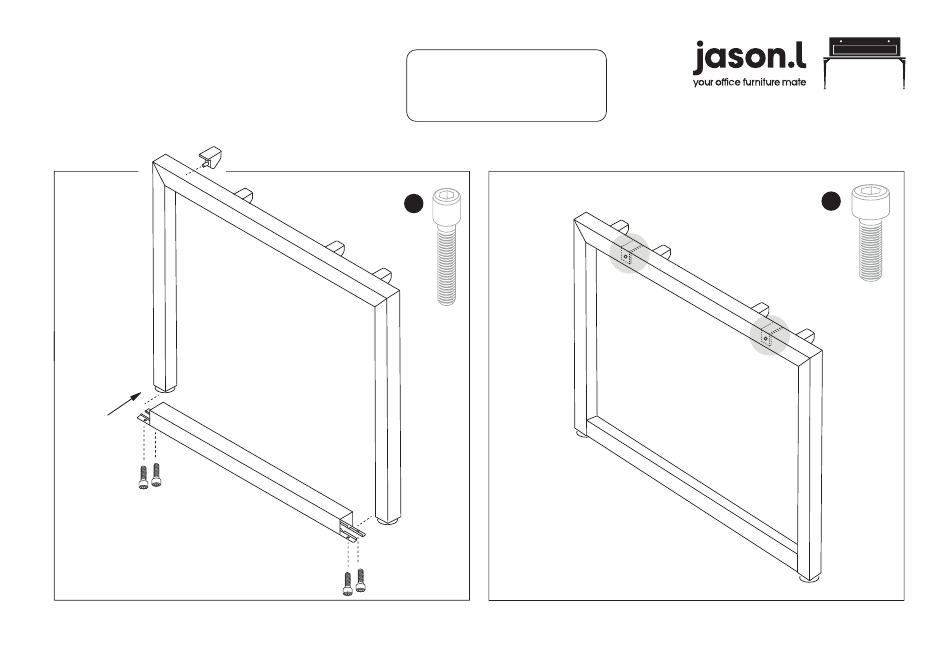

STEP 01
Using Allen Key provided, attach 4 plastic brackets per leg (E)
(as per picture above) using M6x20MM (H) Socket head screw.
Connect Loop Legs (C) to Bottom of Quadro Legs (B) by using 4
bolts per leg
All manuals and user guides at all-guides.com
www.jasonl.com.au
Need help!
Call us on
1300 527 665
STEP 02
H
Using Allen Key provided, attach M8x20MM Socket head (G)-
screw socket half way into leg for both legs (B).
G
