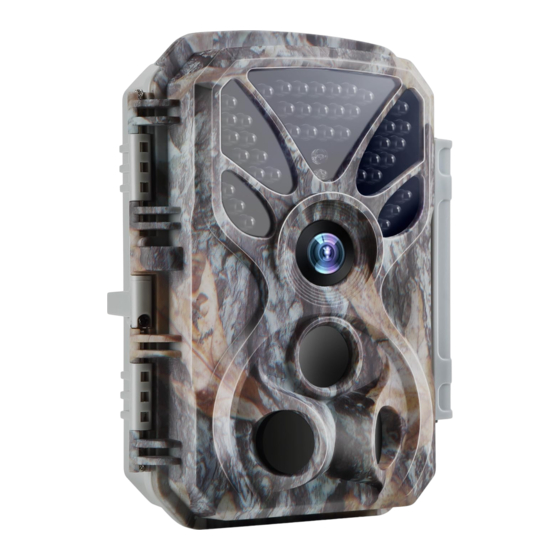

- Page 1 TRAIL CAMERA MODEL: T326 INSTRUCTION MANUAL V1.0...
-
Page 2: Table Of Contents
TABLE OF CONTENT 1. IN THE BOX ............... 1 2. IMPORTANT NOTE ............1 3. INTRODUCTION ..............2 3.1. About The Camera ...........2 3.2. Applications ............. 3 4. PARTS AND CONTROLS ..........3 5. INSTALLING THE BATTERIES AND SD CARD ...7 5.1. Loading Batteries ............ 7 5.2. -
Page 3: In The Box
1. IN THE BOX 1 x Camera, 1 x Mounting Strap, 1 x Instruction Manual, 1 x Mini USB Cord Note: Memory card and batteries are not included (user supplied). 2. IMPORTANT NOTE Require eight (8) 1.5V AA Alkaline or Lithium batteries. We recommend the use of Energizer AA Lithium batteries in this camera to obtain maximum battery life. -
Page 4: Introduction
3. INTRODUCTION 3.1. About The Camera The trail camera is a new generation of digital scouting camera, it can be triggered by any movement of game in a location, detected by a highly sensitive Passive Infra-Red (PIR) motion sensor, and then take high quality pictures , video clips. -
Page 5: Applications

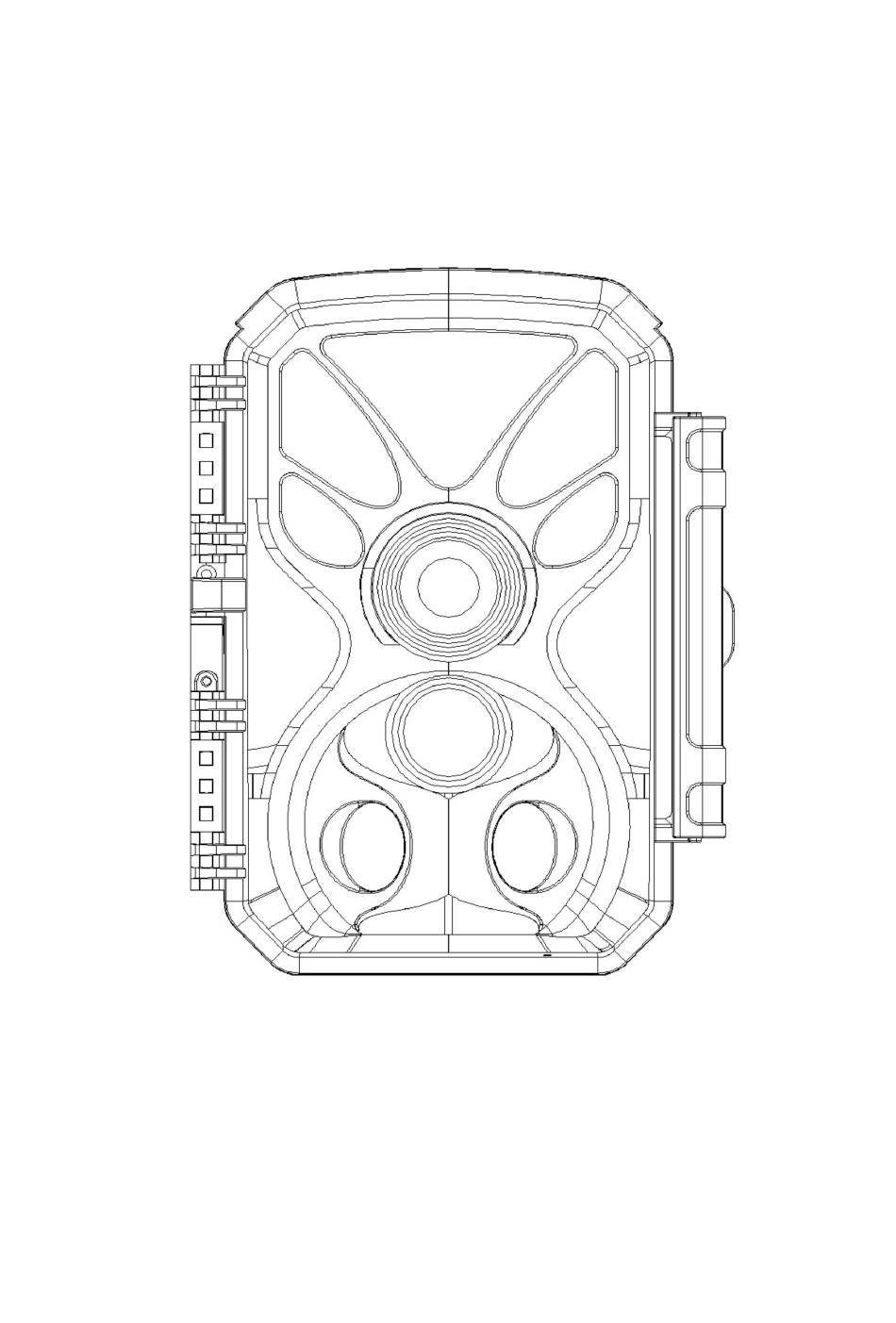

Password protected. Built for any climate - IP66 Waterproof designed for outdoor use and resistant against rain and snow. Operation Temperature -4~140°F. Support SD/SDHC/SDXC memory card, max capacity 128GB (user supplied). Extremely long in-field battery life up to 8 months in a ... - Page 6 IR LEDs Light Sensor Indicator Optical Lens Lock Hole Central Lock PIR Lens Buckle Side Side PIR Lens PIR Lens Figure 1: Front View The camera provides the following connections for external devices: Mini USB port and SD card slot etc. (Figure 2).
- Page 7 Microphone SD Card Holder Mini USB Port DC 12V/1A Tripod Base Plug 1/4" - 20 4.0x1.75mm Figure 2: Bottom View The camera has two strap holes on the back. The strap can be put through the strap holes and fastened securely around the tree trunk by pulling the end of the strap firmly (Figure Security Cable...
- Page 8 The camera has a 2.4-inch built-in LCD screen, which can be used for reviewing pictures or videos and menu displaying, and unique keypad design for easy program and operation, 8 AA batteries slot supported (Figure 4). Battery Compartment and Cover Color Screen Operation...
-
Page 9: Installing The Batteries And Sd Card
detection or time lapse) per your settings(Figure 5). When the camera is in the surveillance mode, press the START button to wake up the camera. 5. INSTALLING THE BATTERIES AND SD CARD Before you start learning how to use your camera, you will first need to install a set of batteries and insert an SD card. -
Page 10: Inserting The Sd Card
Figure 6: Loading the Batteries 5.2. Inserting The SD Card Insert the SD card (with the camera's power switch in the OFF position) before beginning to operate the camera. Don't 一 insert or remove the SD card when the camera is powered on or in the surveillance mode. -
Page 11: Using The Camera
The following describes how to insert and remove the SD card: Insert the SD card into the card slot with its label side upwards. A "click" sound indicates that the card is installed successfully. If the wrong side of the card is facing up, you will not be able to insert it without force, there is only one correct way to insert cards. -
Page 12: Off Mode
ON mode: Power switch in the ON position(The camera is powered on and its screen is on). SURVEILLANCE mode: When the camera is powered on, press START button to enter the surveillance mode. When the screen is off, the camera enters standby and will perform according to your settings. -
Page 13: Surveillance Mode
As mentioned earlier in "Parts & Controls", the keypads have secondary, "shortcut" functions when the camera is switched to ON mode: Press the UP key to quickly set the camera to shoot video clips. Press the DOWN key to quickly set the camera to take ... -
Page 14: Advanced Settings
8. ADVANCED SETTINGS The trail camera comes with preset manufacturer settings. You can change the settings to meet your requirements. Please make sure that the camera is turned on. Once the camera screen is on, press MENU key to enter/exit the menu. - Page 15 01, 02, 03, Select the number of photos taken in Picture No 04, 05 sequence per trigger. Select video resolution (pixels per 1440P/2K frame). Higher resolution produces 1296P Resolution better quality videos, but creates 1080P larger files that take more of the SD 720P card capacity.
- Page 16 Select the sensitivity of the PIR sensor. Temperature affects the sensitivity. The High setting is suitable when the ambient High temperature is warm or you want to Medium Sensitivity capture distant object or capture more, and the Medium/Low setting is helpful in cold weather.
- Page 17 when observing cold-blooded animals like snakes, or the process of flowering, etc. Note: This option is invalid if Mode is set as “Motion mode”. Select On if you only want the camera to work within a specified time period every day. For instance, if the starting time is set at 18:30 and the ending Monitoring time at 8:20, the camera will function...
- Page 18 12h - AM/PM Select OK to assign a 12-character long in the form of Capital A-Z, a-z, 0-9 to record the location in the Camera photos (e.g. A123 for Yellow Stone Name Park). This helps multi-camera users identify the location when reviewing the photos.
-
Page 19: Mounting And Positioning The Camera
9. MOUNTING AND POSITIONING THE CAMERA 9.1. Mounting After you've set up the camera's parameters to your personal preferences at home, you're ready to take it outside. When setting up the camera for scouting game or other outdoor applications, you must be sure to mount it in place correctly and securely. -
Page 20: Sensing Angle And Distance Test
Figure 8: Mounting the Camera 9.2. Sensing Angle and Distance Test To test whether the camera can effectively monitor the area you choose, this test is recommended to check the sensing angle and monitoring distance of the camera. To perform the test: Switch the camera to the ON mode. -
Page 21: Starting
light will blink only when the motion is within the sensing area of the PIR sensor.) In these sensing test, the camera would take pictures once motion captured. When you open the camera, the screen shows the number of times triggered, you can review the pictures on the screen. -
Page 22: Review Photos Or Videos
in the menu, the camera will be ready to go into “ Motion mode” soon after the START button is pressed, the camera will countdown 5-second delay, and then will be ready to go into standby (surveillance) and capture. Any motion detected by it will trigger the capture of images as programmed in the menu. -
Page 23: Technical Specifications
There are several ways this can be done. You can directly review the photos or videos on the camera screen. Or when the camera is powered on, you can use the provided USB cable to download the files to a computer. Or you can put the SD card to an SD card "reader"... - Page 24 PIR Sensing 90ft (Below 77°F/25°C) Distance Total 120°(while side motion sensors PIR Sensing enabled). Central zone:60°, Left side:30°, Angle Right side:30° Approx. 0.2-0.75 second Trigger Time (0.2s while side motion sensors enabled) Trigger Interval 0sec.-59min59sec, Programmable Shooting Numbers Video Length 5sec ~ 3min., Programmable Info Strip On /Off...
-
Page 25: Troubleshooting
Mounting Strap, Tripod Base (1/4-20) Waterproof IP66 Operation -4~140°F/-20~60°C Temperature Operation 5% ~ 95% Humidity Certificate FCC & CE & RoHS Product 5.9 x 4.3 x 3.3inches Dimensions 12. TROUBLESHOOTING If your camera does not seem to be functioning properly or if you are having photo/video quality issues, please run these simple and quick checks. -
Page 26: Warranty
13. WARRANTY ONE YEAR LIMITED WARRANTY Your trail camera warranty covers your trail camera for one year after the original purchase date. We warrant that your camera will be free from defects in materials and workmanship when operated in normal use and conditions. This warranty does not cover consumer caused damages such as misuse, abuse, improper handling or installation, damaged caused by wild animals, or repairs attempted by...
