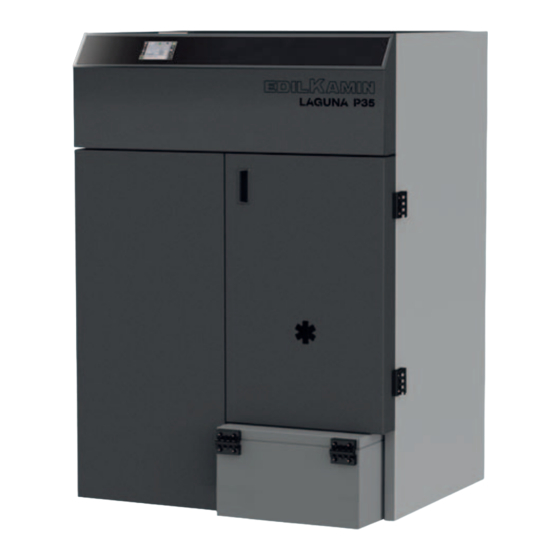

Pellet boiler
Hide thumbs
Table of Contents

Advertisement

Quick Links

LAGUNA P
12-18-24-35
PEllEt BOIlER
EN
Installation, use and maintenance

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LAGUNA 12 and is the answer not in the manual?

Questions and answers

Related Manuals for EdilKamin LAGUNA 12

Summary of Contents for EdilKamin LAGUNA 12

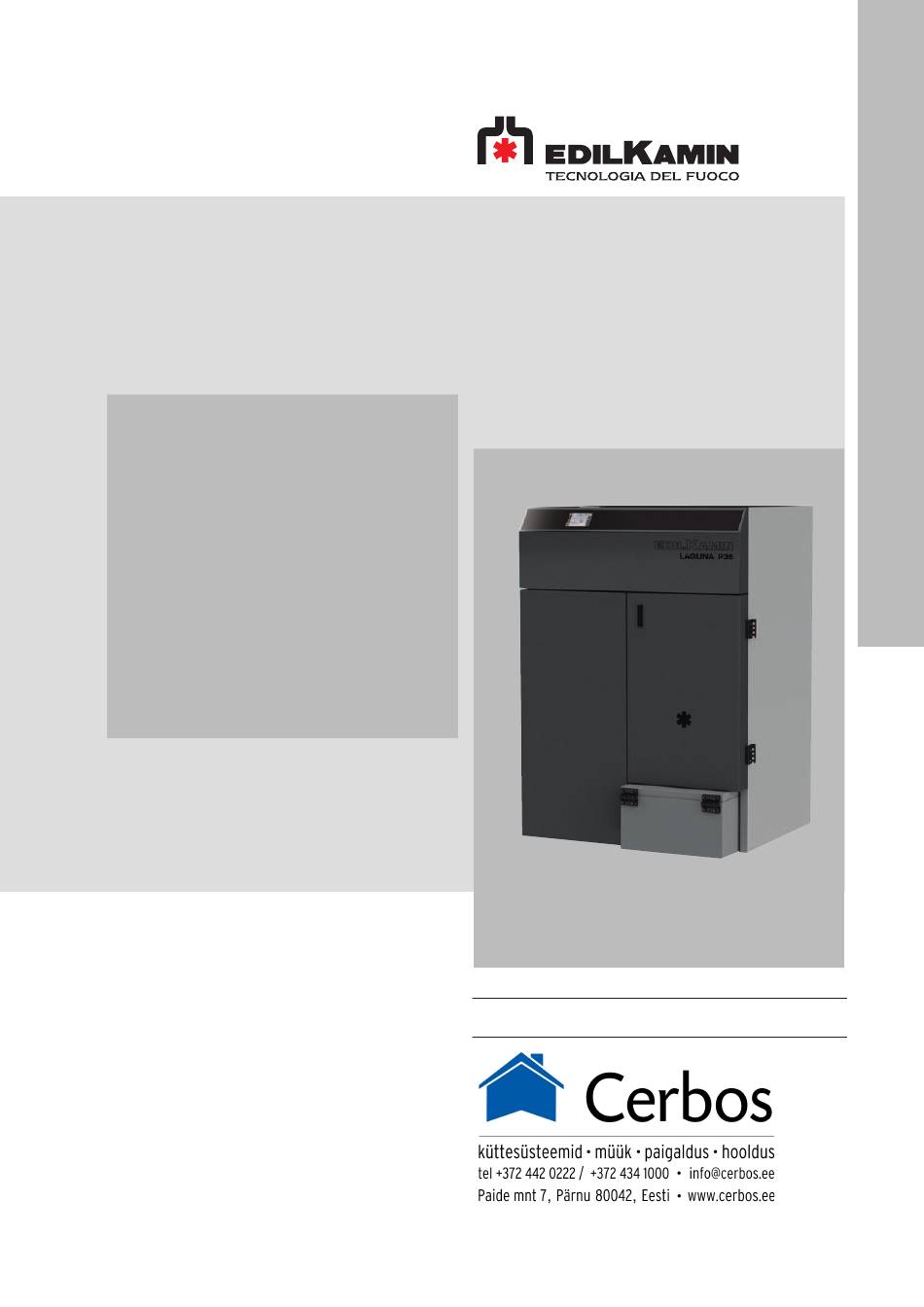

  • Page 1 LAGUNA P 12-18-24-35 PEllEt BOIlER Installation, use and maintenance...

  • Page 2: Table Of Contents

    Installation Instructions for use Maintenance troubleshooting the undersigned company, EDIlKAMIN S.p.A., with registered office in Via Vincenzo Monti 47 - 20123 Milan (Italy) - Italian tax Code 00192220192 Hereby declares, under its sole responsibility, that: the pellet boiler described below conforms to...
  • Page 3 Proper commissioning is required for activation of the Edilkamin warranty. the warranty is only valid in the country of sale of the product. If the appliance is not commissioned by an authorised technician, Edilkamin will not provide warranty service.

  • Page 4: Safety Information

    DO NOt PlACE DRYING RACKS At A refer to the warranty certificate inside the DIStANCE WHICH IS lESS tHAN tHE product: specifically, neither Edilkamin nor SAFEtY DIStANCES. Keep flammable the reseller are liable for damage resulting fluids away from the product. Risk of fire.

  • Page 5: Technical Data

    technical data technical chaRacteRistics in accord. with en 303-5 lagUna P12 lagUna P18 Reduced Reduced Nominal power Nominal power power power Heat input 12,4 18,1 Available power 11,4 16,5 Efficiency 92,1 91,3 92,1 CO emissions at 10% O 0,007 0,02 0,008 0,02 Fumes temperature...
  • Page 6 technical data technical chaRacteRistics in accord. with en 303-5 lagUna P24 lagUna P35 Reduced Reduced Nominal power Nominal power power power Heat input 24,5 34,1 Available power 22,2 30,8 Efficiency 90,7 89,7 90,2 89,7 CO emissions at 10% O 0,003 0,012 0,01 0,012...

  • Page 7: Dimensions

    diMensions laguna P12 and 18 (dimensions - cm) a compression nut Ø 10 cm fumes outlet Ø 5 cm combustion air...
  • Page 8 diMensions lAGUNA P 24 and P 35 (dimensions in cm) a compression nut Ø 10 cm fumes outlet Ø 6 cm combustion air...
  • Page 9 diMensions Delivery Return Cold water Hot water 3/4 “ M 3/4 “ M 1/2 “ M 1/2 “ M Please control the compression nut on the pipe (are closed) which must be tighten. the compression nut of the return is accessible from the slot on the rear (A at pag 8) to control the compression nut of the delivery: • open the pellet trap doort and the cover beside (C)

  • Page 10: Packaging

    PacKaging PRePaRation and UnPacKing the package contains: the packaging materials are neither toxic nor noxious • the boiler (1) and do not require special disposal. • the ash drawer (2) the user is responsible for storing, disposing or and recycling them in a regulatory fashion. to ReMoVe the boileR fRoM the Pallet • Open the door;...
  • Page 11 installation to install the ash dRaWeR • Open both front doors (P e P1) • Insert the drawer (2) • Please fasten the stop located on the left We remind that a part of the ash drawer will be out of the boiler.

  • Page 12: Optional Pellet-Loading Screw Feeder

    installation load the Pellets Using the scReW feedeR (optional) the boiler is designed for use with a pellet-loading screw feeder system. before proceeding, switch off the boiler and remove the electrical power cord. Proceed as follows for installation: • Remove the pre-cut cover on the back or on the side panel of the boiler (1), loosen the screws securing the closing flange located beneath the pre-cut cover and replace it with the flange configured for attaching the flexible tube (2)

  • Page 13: Electrical Connections

    installation electRical teRMinal connections On the back (with the protective cover removed), there is a bracket with two terminals and five cable glands. One terminal block (12 poles) is low voltage, the other (6 poles ) is high voltage). Below you can see the connection upper terminal block (low voltage) n°...

  • Page 14: Installation

    installation ReMaRKs on installation Note that: • installation must be carried out by authorised technical personnel. • all local and national laws and European standards must be met in the installation and use of the product. In Italy, the standard of reference is UNI 10683 • If installed in a condominium, the appliance must be approved by the administrator.
  • Page 15 • must be insulated, if routed through unheated areas or outdoors Edilkamin is not responsible for malfunctions resulting from an improperly earthed system. • must not be routed through rooms where the the power line must be of adequate section for the installation of combustion heat generators is power of the appliance.
  • Page 16 installation the flUe: eXteRnal aiR intaKe Further to the general prescriptions for the fumes duct and flue, the flue: In general, we suggest two ways to ensure a proper • must serve solely to exhaust fumes flow of combustion air. • must be correctly sized to satisfy the requirements of fumes exhaust (EN 13384-1) Indirect air intake...
  • Page 17 For installing a single heat source with instantaneous domestic hot water production. INStAllED WItHIN tHE BOIlER BY PURCHASING - KIt RW2 A KIt FROM EDIlKAMIN OR IF PREPARED BY tHE For combined installation with a second boiler with INStAllER. domestic hot water production and system separator.
  • Page 18 Kit All kits are supplied with instructions for their connection to the boiler Edilkamin Service has a paper template to help position the water pipes to connect to the boiler. Please be carefull to use the correct one...
  • Page 19 installation to install one of the kits described above: • remove the back cover (A), first removing the screws which fasten it to the boiler; • remove the metal side panel (B), first removing the screws which fasten it to the boiler. At this point, proceed with the installation of the chosen kit following the instructions provided, taking care to: • all work must be done with the electrical power disconnected;...
  • Page 20 installation First ignition procedure • Make sure you have read and understood this manual • Remove all flammable materials from the appliance (manuals, labels, etc). • Power is supplied to the product by switching the switch 0/1 circuit breaker from 0 to 1 On first ignition, there may be a slight smell of paint, which will disappear in a short time.

  • Page 21: Instructions For Use

    MODES OF OPERATION (details on the following pages) Once the technician (Edilkamin technical Assistance Centre) has input the “system configuration” (5 configurations are available in the table), the following adjustments may be accessed. the first operation is pressing the ON/OFF key to bring the boiler to the ON state and ready for any demands for heat.
  • Page 22 UseR instRUctions Description of the display (example at the side) Reference Parameters which can be read or notes figure modified (details provided in the diagrams on the following pages) Adjusting room temperature Display of the system configuration and temperature setting (e.g.: water in the boiler, puffer, etc.) Adjusting user settings: • date and time • display...
  • Page 23 Puffer ntc sensor sor/room thermostat lAGUNA P leaves the factory in configuration 1 Possible Kits and configURation PaiRings Suggestions to make installation easier Edilkamin Kit Configuration on the laguna P NOtES circuit board Kit R 1 / 3* / 4 / 5...
  • Page 24 UseR instRUctions Configuration 1 Configuration 4/5 Configuration 4/5 Configuration 2 Configuration 3...
  • Page 25 UseR instRUctions We describe the procedures below. Method of Use the views display the functions and are described in the following sections. the laguna P logic calculates on the Boards which then “open” on one or more screens (the numbers refer to those used in the description of the panel): 1.
  • Page 26 UseR instRUctions 3. User Settings Tab (five successive screens) to modify a field, select it by touching the touch-screen Allows the following to be viewed and input: corresponding to the field to be modified. Modify the date and time settings by touching the increase/decrease symbols. emperature hysteresis (lag) display specifications language...
  • Page 27 UseR instRUctions 3.4 Choose language screen 3.5 Firmware version display screens 4. Timer Programming Tab (a screen) Allows the daily temperature profile to be input. Can be modified by moving a finger over the profile.
  • Page 28 UseR instRUctions Method of Use the views display the functions and are described in the following sections. the outer keys are used to adjust or display the following: Boiler ON OFF Summer /Winter List of Alarms Technical menu the numbering is a continuation of the previous sections. Information menu 5.
  • Page 29 UseR instRUctions 8. Technical menu of the boiler Allows the following: • the user manual to be downloaded • some operational parameters to be set • the technician (only) to access regulation parameters 8. Technical menu of the boiler Settings: • Enable Chronothermostat • Forced Cleaning: clean the boiler when switched • load Screw/Auger Feeder: load the screw feeder...
  • Page 30 UseR instRUctions...
  • Page 31 UseR instRUctions 5. Information Menu Operational information for the technician. sPecific aUtoMatic fUnctions ANtIFREEZE: when the sensor detects a temperature water below 5°C, the circuit board actuates the circulator in continuous mode to stop the water freezing ANtIBlOCKAGE: when the boiler is connected to the mains but is switched OFF, the circuit board actuates the circulator for 1 minute every 24 hours to impede the formation of encrustation.

  • Page 32: Maintenance

    3 months. Using non-original spare parts may damage the appliance and relieves Edilkamin of all liability for You should clean the chimney system at least once a damage resulting therefrom.
  • Page 33 Maintenance Monthly checK Open the hatch and ensure: • the level in the ash and empty if necessary; • cleaning the burner the single internal refractor is the upper deflector which must not in any way be handled, unless it is by the technician at the end of the season.

  • Page 34: Troubleshooting

    tRoUbleshooting If problems occur, the product shuts itself off automatically. The display will show the reason (see below). Do not disconnect from the power supply. To start the product up again, allow the shut-down procedure to complete, then press the ON/OFF key on the panel.
  • Page 35 tRoUbleshooting Message PRobleM solUtion Shut-down due to gearmotor • Contact the technician failure. Switching OFF due to the inter- • Ensure the stove and flue are clean. vention of the safety pressure • Contact the technician switch. Switching OFF due to circuit • Contact the technician board overheating Room...
  • Page 36 tRoUbleshooting safety theRMostat If pellet loading fails, especially after a power failure, check whether the safety thermostat has intervened (a). If the temperature is too high, it switches OFF the product by cutting off the power supply to the gear motor. to get to the thermostat: • open the pellet trap doort and the cover beside • Remove the screw (V) in order to turn softly the...
  • Page 40 *941309-GB* w w w . e d i l k a m i n . c o m cod. 941309-GB 12.16/G...
