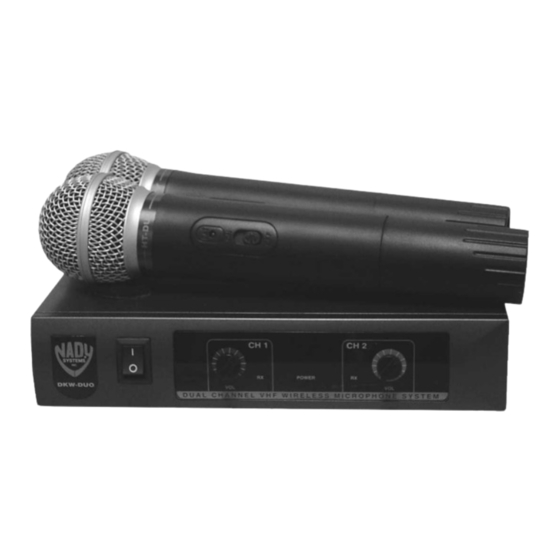

Nady Systems DKW Duo Operating Instructions

DKW-D
Congratulations on your purchase. The Nady DKW-D
level professional wireless, and delivers clear, transparent audio for a
variety of singing and speech applications. Although offered at a
breakthrough new low price for a professional wireless, this system is
loaded with features:
• All the advantages and freedom of 2 channels of wireless operation
without cumbersome cords
• Easy to use — simply plug in instead of your wired microphones
• Use both channels with single receiver and two handheld microphone
transmitters for simultaneous dual operation
• Excellent high fidelity audio — perfect for public speaking,
karaoke/recreational singers, DJ's, and many other applications
• VHF (170-216MHz) operation for reliable, interference-free performance
• 150+ feet typical operating range — up to 300+ feet line-of-sight

Receiver

• Easy to use —simply plug into your audio mixer or amplifier instead of your wired microphone. Operate either channel (1, 2) singly or both
simultaneously.
• High-band VHF (170-216 MHz) operation for interference-free performance
• Advanced audio processing circuitry for a wide dynamic range (no overloading for loud inputs or background hiss during quiet use)
• Complete controls and connections for professional operation include front panel power ON/OFF switch, CH 1 and CH 2 output volume
controls, Power ON LED, CH 1 and CH 2 transmitter on LED indicators. Back panel 1/4" audio output jack and DC power input jack for
supplied AC/DC adaptor. Dual retractable CH 1 and CH 2 antennas.
• Special added circuitry eliminates transmitter on/off "pop" noise

Handheld Microphone Transmitters

• Each transmitter operates on a separate single frequency in the VHF 170-216MHz band and can be used singly or together simultaneously with
the DKW-D dual receiver
UO
• Easy, convenient operation with on/off switch and low battery LED indicator which flashes once for unit "ON", and lights steady for low battery
alert
• Features the Nady DM-20 unidirectional dynamic cartridge for optimum true sound, maximum feedback rejection and minimal handling noise
• Each transmitter operates up to 15 hours on a single 9V alkaline battery
OPERATION
(1)
(4)
RECEIVER

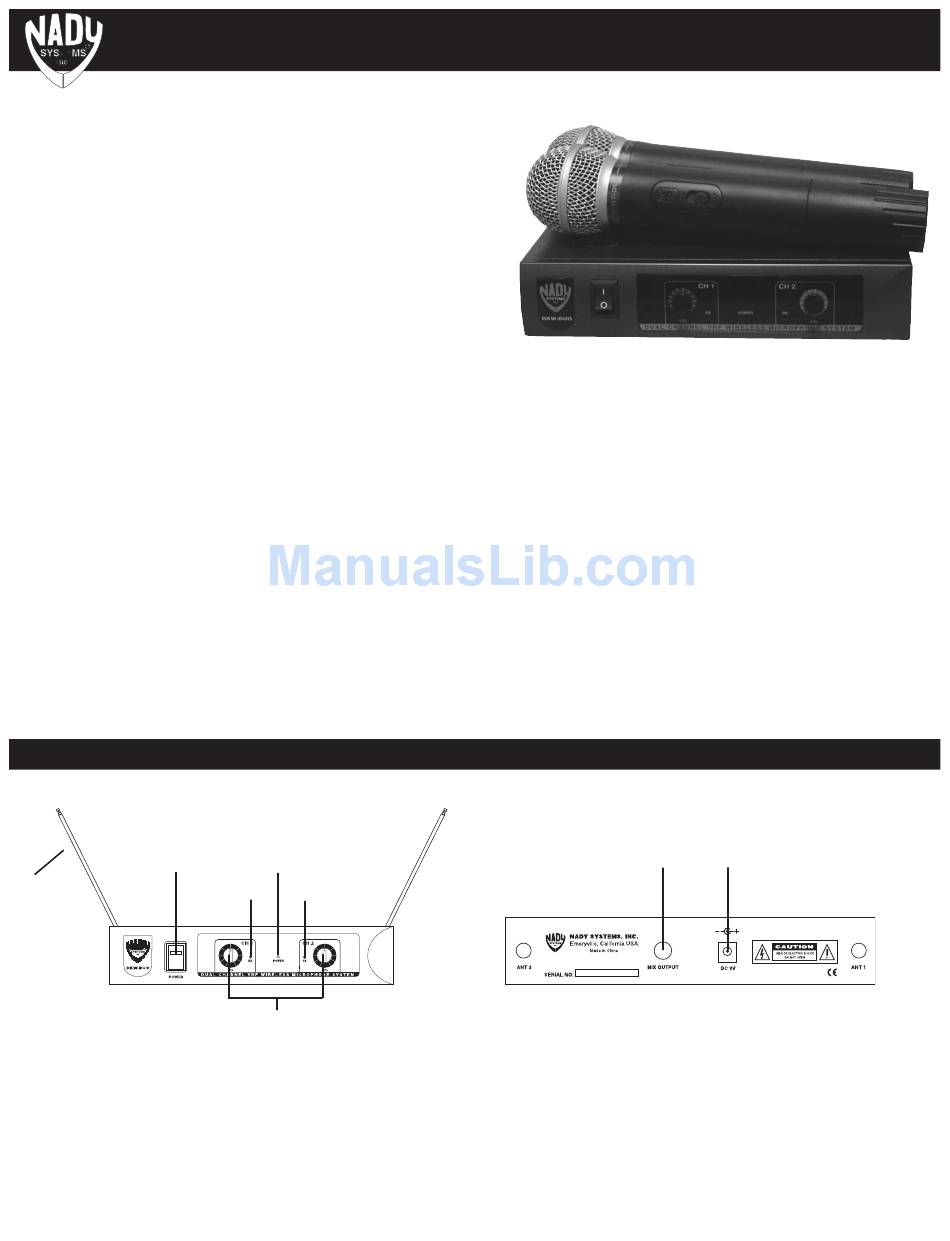

1. Plug the AC/DC adapter (provided) into the 9VDC INPUT JACK (3) on the back of the receiver. Then plug the power supply into
an AC outlet. Switch the POWER (1) to the ON position. The POWER ON LED (2) will now light and the receiver is operational.
2. Rotate and extend ANTENNAS (4) fully, angled at 60° position as shown.
3. The 1/4" AUDIO OUTPUT JACK (5) provides a fixed, unbalanced MIC level audio output for connection to your mixer with the
1/4" to 1/4" cord supplied. As when making any connection, make sure the mixing board's volume is at the minimum level
before plugging in the receiver to avoid possible sound system damage. [Note: this output is the sum of the signals received by both the internal
receivers (CH 1 + CH 2). Use the CH 1 & CH 2 VOLUME CONTROLS (6) to adjust the individual relative channel volumes.]
