LA GARD 700 SERIES
QUICK START GUIDE
TAMPER EVIDENT KEYPAD
Part #: 705285 RevC | 7042.3.1022
TEAR HERE

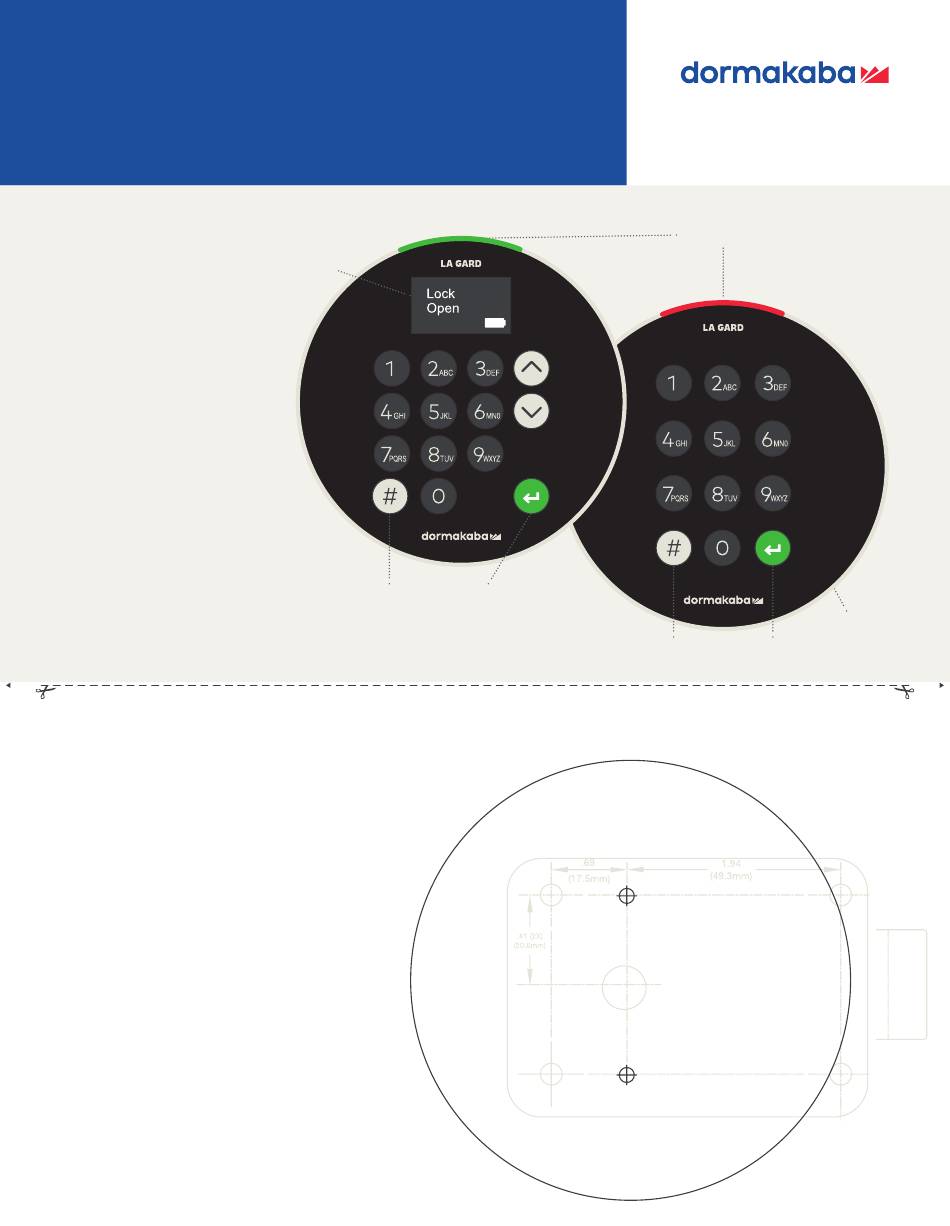

Drill-Deburr-Tap Template/Plantilla de Taladrar-Debastar-Roscar/
Bohrschablone/Gabarit de perçage/Gabarito de Perfuração
Installation Best Practice/Instalación Mejores Prácticas/Einbau Beste
Übung/Installation Meilleure Pratique/Instalação Melhor Prática
A & B: Physically mount the keypad.
Note: Do not install batteries or connect to power.
C: Physically mount the lock body.
Connect the keypad cable to the lock.
Note: Do not pull or over stretch the keypad
cable as it may be pulled out of the internal
connection port.
Install batteries or connect power.
Please Note: If programming lock and then
shipping to site, disconnect power and do not
reapply/insert battery power until all systems are
mounted and properly plugged in. If keypad does
not immediately respond, please allow 30 to 45
seconds for entry to properly pair with lock body.
Set Up: Open the Container and Follow these quick
set up instructions to program your system:
• 1 Manager Open and Audit Access
• 1 Standard Open and Audit Access
• Master/Super Master set for use
OLED Display Keypad
Menu
Display
Pound/Back
(Steps 1-4)
(Step 5)
(Step 6)
(Step 7)
Return
Pound/Back
#8-32 (M4-0.7) 2X
SPINDLE/CABLE HOLE
7/16" (11MM)
Indicator Light

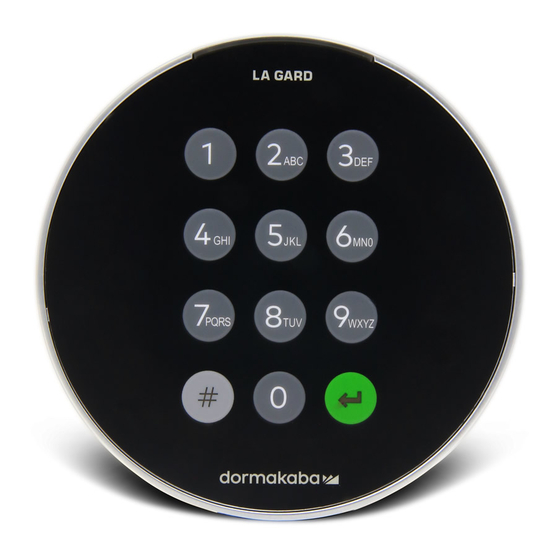

Non-Display Keypad
Battery Door
Return
1/4"-20 (M6-1)
3X AS REQUIRED
