Patio Heater
Model PH-CN-2210-S
Item 47595
Instruction Manual
Revised - 01/18/2023
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: service@omcan.com
www.omcan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PH-CN-2210-S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Omcan PH-CN-2210-S

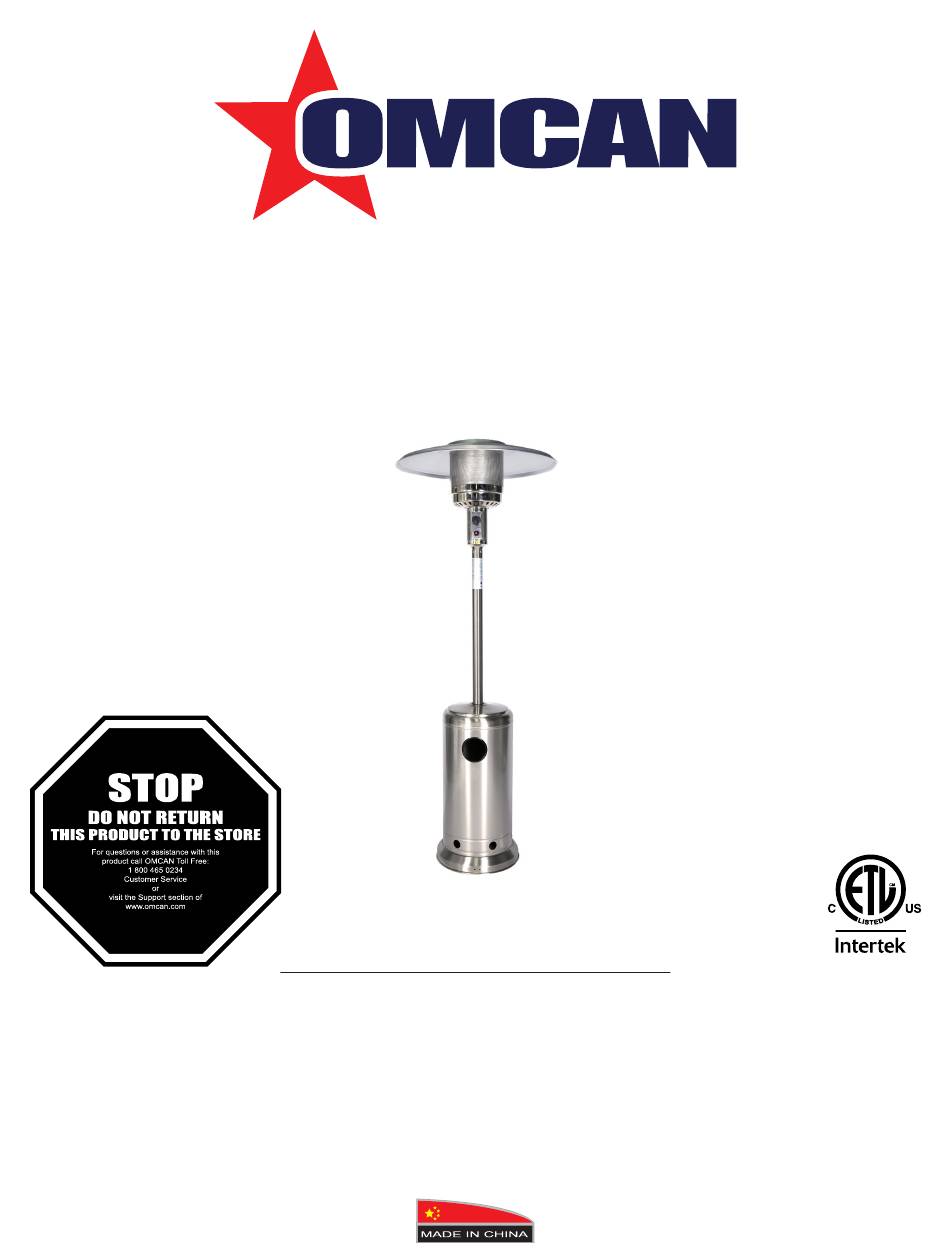

  • Page 1 Patio Heater Model PH-CN-2210-S Item 47595 Instruction Manual Revised - 01/18/2023 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
  • Page 2: Table Of Contents

    Table of Contents Model PH-CN-2210-S Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 7 Technical Specifications -------------------------------------------------------------------------- 8 Installation -------------------------------------------------------------------------------------- 8 - 11 Operation -------------------------------------------------------------------------------------- 11 - 12 Maintenance --------------------------------------------------------------------------------- 12 - 13 Troubleshooting...
  • Page 3: General Information

    If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents.
  • Page 4: Safety And Warranty

    Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.
  • Page 5 Safety and Warranty WARNING • The installation of this unit must adhere to local codes or Propane Storage and Handling Code, CSA B149.2. • THIS UNIT IS INTENDED FOR OUTDOOR USE ONLY! This product shall be used outdoors, in a ventilated space and shall not be used in any enclosed area.
  • Page 6 Safety and Warranty parts should this occur. • Do not disconnect any part while unit is in use. • Do not store a spare propane tank on or near this unit. • If the heating unit is indoors, detach the propane tank and leave outdoors. •...
  • Page 7 1 YEAR PARTS AND LABOUR BENCH WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment.
  • Page 8: Technical Specifications

    Technical Specifications Model PH-CN-2210-S Fuel Propane 48,000 BTU Consumption 945 g/hr Flux 945 g/hr Tank Required 20lb gas tank required Power 13 kW Heating Area 113-175 sq ft Weight 33.1 lbs. / 15 kgs. Packaging Weight 37.5 lbs. / 17 kgs.
  • Page 9: Installation

    Installation ASSEMBLY INSTRUCTIONS WARNING: Remove protective cover before assembling. 1. Turn the base upside down, then attach wheel assembly (I) to base (H) using 2pcs M8 flange nuts (AA) and 2pcs bolts M8x16 (BB). Attach 3pcs anchoring arm (MM) to base (H) using 6pcs M6 nuts (OO) and 6pcs bolt M6x10 (NN).
  • Page 10 Installation...
  • Page 11: Operation

    Installation Operation Before performing a leak test, be sure that no sparks can occur and you are in a spacious outdoor area. Connect the propane gas tank to the regulator and turn the valve on the unit to the “off” position. Brush a soap and water mixture on all connections.
  • Page 12: Maintenance

    Operation replace the hose (if applicable). TO LIGHT 1. Turn on the valve on the gas supply cylinder. 2. Press and turn the variable control knob to the ‘HI’ position. 3. Press down the variable control knob and hold for 3-5 seconds. 4.
  • Page 13: Troubleshooting

    Maintenance • Always place lid (if applicable) or protective cover on heating item when not in use. Troubleshooting Problem Cause Solution The burner will not light. The burner injector is clogged. Clean the burner injector. There is low gas supply pressure. Call your gas supplier.
  • Page 14 Troubleshooting The heater produces a clicking The metal is expanding and This is common with heaters. noise just after the burner is lit or contracting. If noise is excessive, contact a turned off. qualified service person. There is a gas odor even when the There is a gas leak.
  • Page 15: Parts Breakdown

    Parts Breakdown Model PH-CN-2210-S 47595...
  • Page 16 Parts Breakdown Model PH-CN-2210-S 47595...
  • Page 17 Parts Breakdown Model PH-CN-2210-S 47595 Item No. Description Position Item No. Description Position Item No. Description Position AH975 Reflector Assembly for 47595 AH984 M8 Flange Nut for 47595 AH992 Cap Nut for 47595 AH977 Burner Assembly for 47595 AH985 Bolt M8x16 for 47595...
  • Page 18: Notes

    Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
  • Page 19: Warranty Registration

    Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté...
