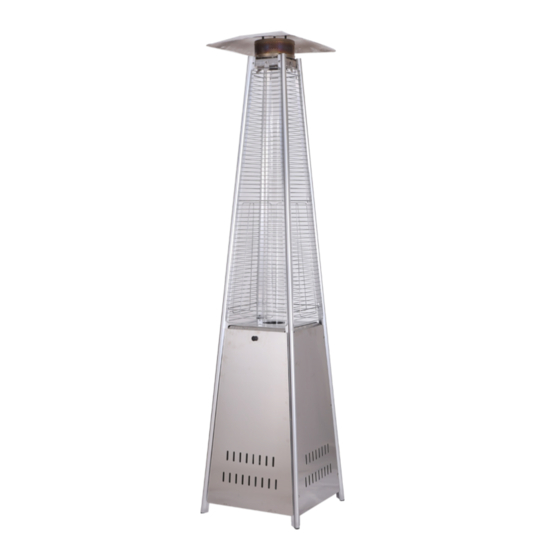

- Page 1 Patio Heaters Models PH-CN-2270-P, 2270-S Items 47878, 47879 Instruction Manual Revised - 11/05/2021 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model PH-CN-2270-P / Model PH-CN-2270-S Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 7 Technical Specifications -------------------------------------------------------------------------- 8 Installation -------------------------------------------------------------------------------------- 8 - 12 Operation ------------------------------------------------------------------------------------------- 13 Maintenance --------------------------------------------------------------------------------- 13 - 14... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 Safety and Warranty WARNING • The installation of this unit must adhere to local codes or Propane Storage and Handling Code, CSA B149.2. • THIS UNIT IS INTENDED FOR OUTDOOR USE ONLY! This product shall be used outdoors, in a ventilated space and shall not be used in any enclosed area.
- Page 6 Safety and Warranty parts should this occur. • Do not disconnect any part while unit is in use. • Do not store a spare propane tank on or near this unit. • If the heating unit is indoors, detach the propane tank and leave outdoors. •...
- Page 7 1 YEAR PARTS AND LABOUR BENCH WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment.
-
Page 8: Technical Specifications
Technical Specifications Model PH-CN-2270-P PH-CN-2270-S Fuel Propane 42,000 BTU Consumption 945 g/hr Flux 945 g/hr Tank required 20lb gas tank required Power 13 kW Heating Area 113-175 sq ft Weight 50.7 lbs. / 23 kgs. Packaging Weight 61.7 lbs. / 28 kgs. -
Page 9: Installation
Installation Description Bolt M6x10 M6 Nut Screw M5x10 Stud Wing Nut Flat Washer Fixing Bracket Screw 3/16” Knob Large Flat Washer Screw M4x8 Philips Screwdriver Wrench AA Battery (1.5 V) Anchoring Arm Screw M6x12 Warning: Remove protective cover before assembling. 1. - Page 10 Installation supports. Secure the protective guards (E) with fixing brackets (GG) with 4pcs Screw 3/16” (HH). 8. Assemble three side panels to lower support using 18pcs screw 3/16” (HH). Attention: Do not cover the front side where the control knob is. 9.
- Page 11 Installation...
- Page 12 Installation...
-
Page 13: Operation
Operation Before performing a leak test, be sure that no sparks can occur and you are in a spacious outdoor area. Connect the propane gas tank to the regulator and turn the valve on the unit to the “off” position. Brush a soap and water mixture on all connections. -
Page 14: Troubleshooting
Maintenance this heating unit. • Keep the heating unit stored away from direct sunlight. • If storing this unit inside, disconnect the propane gas tank from the gas valve. • Not using manufacturer approved or supplied parts/accessories may result in a defective condition and void the warranty of this heating unit. - Page 15 Troubleshooting The heater produces a whistling Air passageways are blocked. Check the minimum installation noise when the burner is lit. clearances and air passageways for debris. There is air in the gas line. Operate the burner until the air is completely purged.
-
Page 16: Parts Breakdown
Parts Breakdown Model PH-CN-2270-P 47878 Model PH-CN-2270-S 47879... - Page 17 Parts Breakdown Model PH-CN-2270-P 47878 Model PH-CN-2270-S 47879...
- Page 18 Parts Breakdown Model PH-CN-2270-P 47878 Item No. Description Position Item No. Description Position Item No. Description Position AH941 Reflector for 47878 AH951 Control Box Assembly for 47878 AH961 Fixing Bracket for 47878 AH942 Top Plate Assembly for 47878 AH952 Lower Support for 47878 AH962 Screw 3/16”...
-
Page 19: Warranty Registration
