Patio Heater
Model PH-CN-0014
Item 23578
Instruction Manual
Revised - 09/01/2016
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: service@omcan.com
www.omcan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PH-CN-0014 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Omcan PH-CN-0014

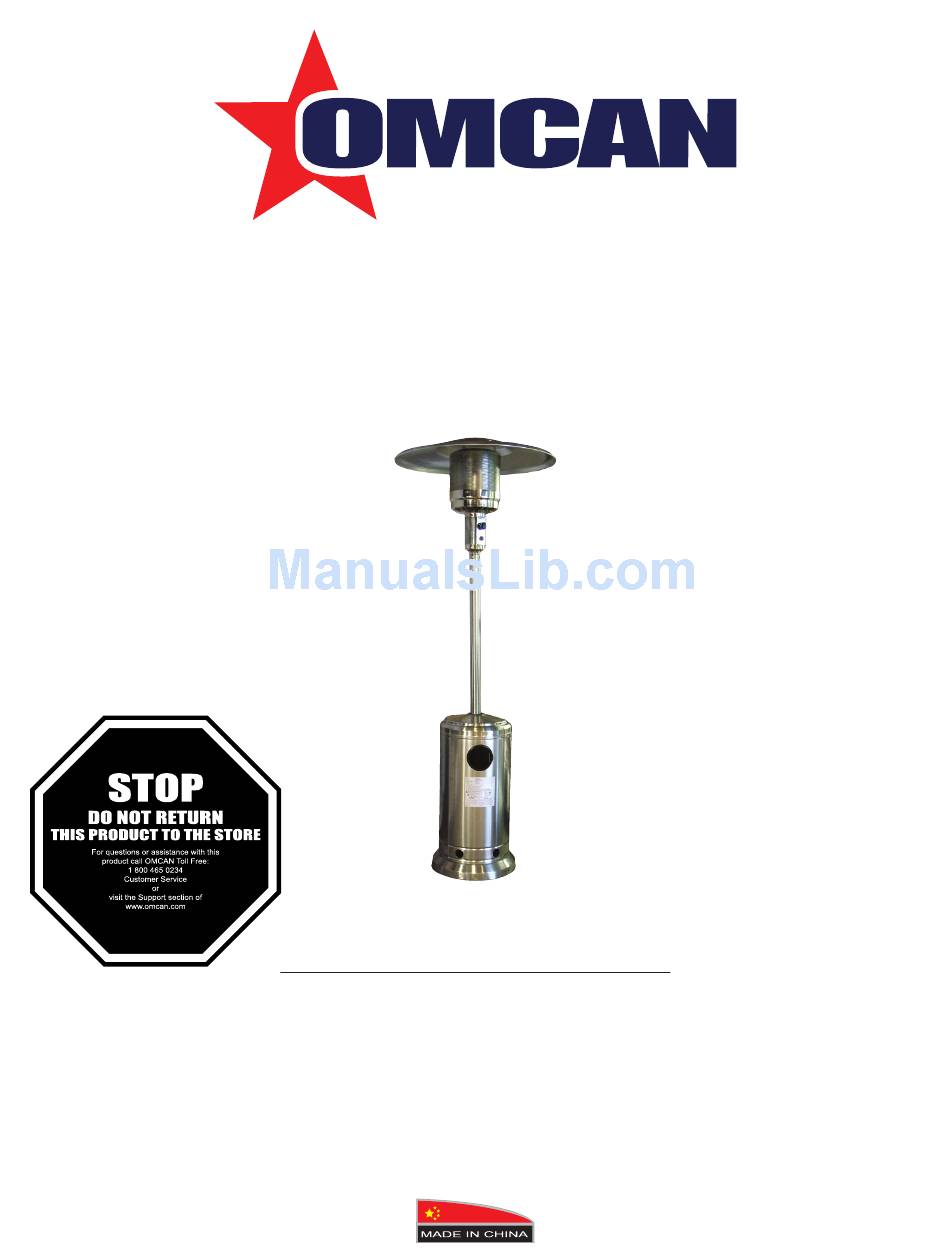

  • Page 1 Patio Heater Model PH-CN-0014 Item 23578 Instruction Manual Revised - 09/01/2016 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
  • Page 2: Table Of Contents

    Table of Contents Model PH-CN-0014 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 7 Technical Specifications -------------------------------------------------------------------------- 7 Installation --------------------------------------------------------------------------------------- 7 - 9 Operation --------------------------------------------------------------------------------------- 9 - 11 Maintenance --------------------------------------------------------------------------------- 11 - 12 Troubleshooting...
  • Page 3: General Information

    If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents.
  • Page 4: Safety And Warranty

    Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.
  • Page 5 For repairs contact Omcan and request the use of original spare parts. If in doubt do not use the appliance and contact Omcan. Not following the above conditions could risk the safety of those using the unit.
  • Page 6 Burner makes popping noises during use. Note: A slight pop is normal when burner is extinguished. 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally.
  • Page 7: Technical Specifications

    Installation Familiarize yourself with all components before proceeding. Do not attempt assembly unless all components are available. If you believe a component is missing or damaged, contact Omcan for assistance. Note: All hardware is mounted on a cardboard pack. Additional Requirements: The following items are not included but are necessary for the proper assembly of your heater.
  • Page 8: Installation

    Installation Tools needed: • Adjustable opening wrench (20 cm / 8” long). • Slip joint pliers (23 cm / 9” long). • Phillips screw-driver with medium blade. • Teflon plumbing tape for joints. • Spray bottle of soap solution for leakage test. ASSEMBLY Caution: You must follow all steps to properly assemble heater.
  • Page 9: Operation

    Reflector connection is secure. 9. Re-light clip. If you continue to see bubbles after several attempts, contact Omcan for assistance. CAUTION: The outdoor heater has been checked at all factory connections for leaks. Recheck all connections, as movement in shipping can loosen connections. Check for leaks even if your unit was assembled for you at the store.
  • Page 10 Operation LIGHTING 1. The gas supply cylinder should be completely turned ON. 2. Push Control Knob IN at the OFF position then turn counterclockwise to High/Light position. 3. Push the Control Knob In and press the ignitor button several times to light the burner. Hold for 30 seconds.
  • Page 11: Maintenance

    Operation 4. Always keep a dry chemical fire extinguisher readily available. Allow the product to completely shut off for 5 minutes before re-lighting the heater. 5. Do not move or cover the product with a protective cover until completely cooled down. CAUTION: Do not inhale the fumes emitted from the heater after.
  • Page 12: Troubleshooting

    Maintenance STORAGE DANGER: CARBON MONOXIDE HAZARD This appliance can produce carbon monoxide which has no odor. Using it in an enclosed space can KILL you. Never use this appliance in an enclosed space such as: camper, tent, car or home. FOR YOU SAFETY: Storage of an appliance indoors is permissible only if the cylinder is disconnected and removed from the appliance.
  • Page 13: Parts Breakdown

    3 pcs Pins (900mm(L)) for Reflector 23844 Post for HMXD-B 23851 Support for HMXD-B Caution: Use only original Omcan replacement parts. Use of unauthorized parts or modification of parts will void warranty and create an unsafe condition. Always allow heater to cool before attempting service.
  • Page 14 Parts Breakdown Model PH-CN-0014 23578...
  • Page 15: Warranty Registration

    Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté...
