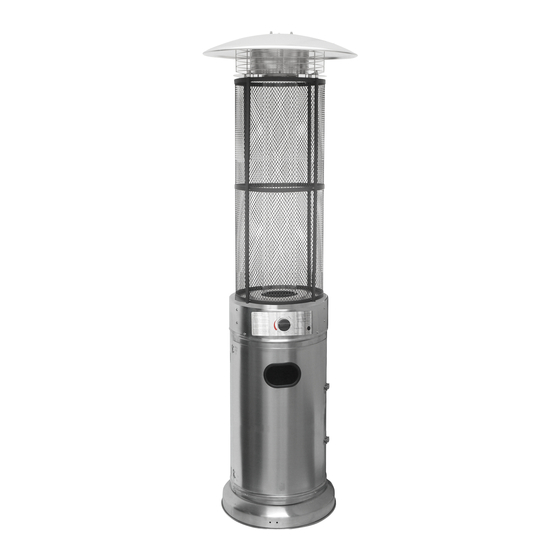

- Page 1 Patio Heaters Models PH-CN-1800-C, 2105-C Items 43584, 43585 Instruction Manual Factory CSA Revised - 07/14/2017 approved Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model PH-CN-1800-C / Model PH-CN-2105-C Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 7 Technical Specifications -------------------------------------------------------------------------- 8 Installation -------------------------------------------------------------------------------------- 8 - 10 Operation ------------------------------------------------------------------------------------- 10 - 13 Maintenance --------------------------------------------------------------------------------- 13 - 14... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 Safety and Warranty WARNING Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. An LP-cylinder not connected for use shall not be stored in the vicinity of this or any other appliance. WARNING: For Outdoor Use Only DANGER: CARBON MONOXIDE HAZARD This appliance can produce carbon monoxide which has no odor.
- Page 6 Safety and Warranty present during operation of this product get fresh air immediately! • For outdoor use only. • Never use inside house, or other unventilated or enclosed areas. • This heater consumes air (oxygen). Do not use in unventilated or enclosed areas to avoid endangering your life.
- Page 7 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.
-
Page 8: Technical Specifications
Technical Specifications Model PH-CN-1800-C PH-CN-2105-C Material Stainless Steel #202 Base Dimensions φ18.1" x 3.2" / φ460 x 81mm Safety Mesh φ14.2" x 33.9" / φ360 x 860mm φ14.2" x 42.1" / φ360 x 1070mm Dimensions Tank Housing φ14.8" x 28.1"(H) / φ375 x 715mm(H) -
Page 9: Installation
Installation - Secure the ground fixer with nuts. - Fix another two ground fixer with bolts and nuts, and reverse the base. 2. Assemble the tank housing. - Secure the tank housing to the base using 4pcs screw M5X10. 3. Assemble the heating body. - Secure the heating body to the tank housing using 4pcs screw M5X10. -
Page 10: Operation
Installation WARNING: Use a standard 20 lb. propane cylinder only. Use this heater only with a propane vapor withdrawal supply system. See chapter 5 of the standard for storage and handling of liquefied petroleum gas, ANS/NFPA 58. Your local library or fire department should have this book. - Page 11 Operation • NEVER leak test when smoking. • Do not use the heater until all connections have been leak tested and do not leak. 1. Make 2-3 oz. of leak check solution (one part liquid dishwashing detergent and three parts water). 2.
- Page 12 Operation 2. Fully open gas valve. Note: For initial start or after any cylinder change, hold control knob in for 2 minutes to purge air from gas lines before proceeding. 3. Depress control knob and turn knob counter. - Clockwise to IGNITE position, then to PILOT position (you will hear 2 clicks). 4.
-
Page 13: Maintenance
Operation WARNING: FOR YOUR SAFETY Heater will be hot after use. Handle with extreme care. SHUT DOWN 1. Turn control knob clockwise to PILOT. (Normally, burner will make a slight popping sound when extinguished.) Burner will extinguish but PILOT will remain ON. 2. - Page 14 Maintenance • Heater makes popping noises. • Spiders and insects can nest in burner or orifices. This dangerous condition can damage heater and render it unsafe for use. Clean burner holes by using a heavy-duty pipe cleaner. Compressed air may help clear away smaller particles.
-
Page 15: Troubleshooting
REFERENCE Manufacturer Model Item Number Model Number Description Number Patio Heater Column 71" / 1800mm 43584 PH-CN-1800-C BYH-A-SS Stainless Steel 34000 BTU Propane Patio Heater Column 83" / 2105mm 43585 PH-CN-2105-C BYH-B-SS Stainless Steel 42000 BTU Propane... -
Page 16: Parts Breakdown
Parts Breakdown Model PH-CN-1800-C 43584 Model PH-CN-2105-C 43585... -
Page 17: Parts Breakdown
Parts Breakdown Model PH-CN-1800-C 43584 Model PH-CN-2105-C 43585 Item No. Description Position Item No. Description Position Item No. Description Position 63396 Reflector for BYHASS/BYHCSS 63401 Round Top for BYHASS/BYHCSS 63406 Tank Cover for BYHASS/BYHCSS Protective Guard Support Tube for Burner and Control Box for BYHASS/... -
Page 18: Notes
Notes... -
Page 19: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 20 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
