Models PH-CN-0042-S, 0042-P
Items 31879, 37878
Instruction Manual
Revised - 09/02/2016
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: service@omcan.com
www.omcan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PH-CN-0042-S and is the answer not in the manual?

Questions and answers

Summary of Contents for Omcan PH-CN-0042-S

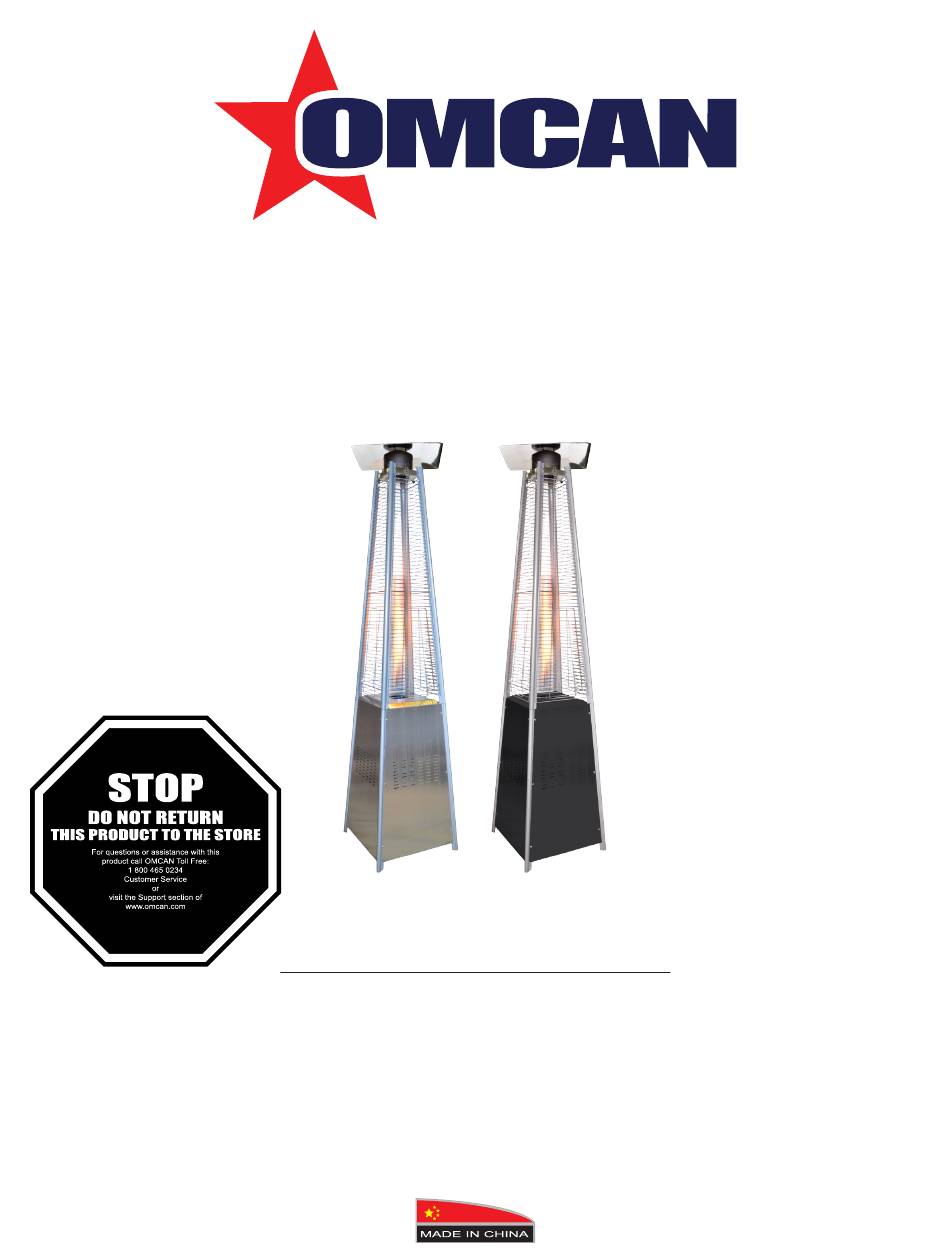

  • Page 1 Patio Heaters Models PH-CN-0042-S, 0042-P Items 31879, 37878 Instruction Manual Revised - 09/02/2016 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
  • Page 2: Table Of Contents

    Table of Contents Model PH-CN-0042-S / Model PH-CN-0042-P Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 8 Technical Specifications -------------------------------------------------------------------------- 8 Installation -------------------------------------------------------------------------------------- 9 - 11 Operation -------------------------------------------------------------------------------------- 11 - 14 Maintenance --------------------------------------------------------------------------------- 15 - 16...
  • Page 3: General Information

    If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents.
  • Page 4: Safety And Warranty

    Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.
  • Page 5 Safety and Warranty property damage. The following symbols shown below are used extensively throughout this manual. Always heed these precautions, as they are essential when using any mechanical or fueled equipment. DANGER Failure to comply with the precautions and instructions provided with this heater can result in death, serious bodily injury and property loss or damage from hazards of fre, explosion, burn, asphyxiation, and/or carbon monoxide poisoning.
  • Page 6 Safety and Warranty propane cylinder for outdoor storage. DANGER • CARBON MONOXIDE HAZARD. • This heater is a combustion appliance. All combustion appliances produce carbon monoxide (CO) during the combustion process. This product is designed to produce extremely minute, non-hazardous amounts of CO if used and maintained in accordance with all warnings and instructions.
  • Page 7 Safety and Warranty WARNING CALIFORNIA PROPOSITION 65 Combustion by-products produced when using this product contain chemicals known to the State of California to cause cancer, birth defects, and other reproductive harm. WARNING BURN HAZARD • Never leave heater unattended when hot or in use. •...
  • Page 8: Technical Specifications

    1 YEAR PARTS AND LABOUR BENCH WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment.
  • Page 9: Installation

    PREPARATION Before beginning assembly of product, make sure all parts are present. If any part is missing or damaged, do not attempt to assemble the product. Contact Omcan for replacement parts. Estimated Assembly Time: 60 minutes. Tools Required for Assembly (not included): •...
  • Page 10 Installation - Washer 6 (x6). - Stud (x3). 7. Carefully install the glass tube by lifting up and inserting through the center hole in the upper plate. Ensure the black silicone ring is attached to the lower edge of the glass tube as illustrated. Slide the glass tube through the hole of the lower plate cover and onto the middle plate.
  • Page 11: Operation

    Installation A dented, rusted or damaged propane cylinder may be hazardous and should be checked by your cylinder supplier. Never use a propane cylinder with a damaged valve connection. The propane cylinder must be constructed and marked in accordance with the specifications for LP gas cylinders of the U.S.
  • Page 12 Operation 1. Turn cylinder valve OFF. 2. If leak is at hose/regulator connection: tighten connection and perform another leak test. If bubbles continue appearing, the hose should be returned to the place of purchase. 3. If leak is at regulator/cylinder valve connection: disconnect, reconnect, and perform another leak check. If you continue to see bubbles after several attempts, cylinder valve is defective and should be returned to cylinder’s place of purchase.
  • Page 13 Operation 7. If after repeating steps 4 to 6 unit does not light, then: - Push in control knob and turn counterclockwise to “PILOT”. - As you are depressing the control knob, place long stem lighter through the glass tube to light the pilot. - Repeat step 6.
  • Page 14 Operation 2. To extinguish PILOT depress control knob and continue to turn it clockwise to OFF. 3. Turn cylinder valve clockwise to OFF and disconnect regulator when heater is not in use. Note: After use, some discoloration of the emitter screen is normal. OPERATION CHECKLIST For a safe and pleasurable heating experience, perform this check before each use.
  • Page 15: Maintenance

    Maintenance WARNING - FOR YOUR SAFETY • Do NOT touch or move heater for at least 45 minutes after use. • Reflector is hot to the touch. • Allow reflector to cool before touching. To enjoy years of outstanding performance from your heater, make sure you perform the following maintenance activities on a regular basis: 1.
  • Page 16: Troubleshooting

    Maintenance During periods of extended inactivity or when transporting: • Turn Control Knob OFF. • Disconnect LP cylinder and move to a secure, well-ventilated location outdoors. • Store heater upright in an area sheltered from direct contact with inclement weather (such as rain, sleet, hail, snow, dust and debris).
  • Page 17: Parts Breakdown

    Patio Heater Pyramid 90” / 2286mm 31879 PH-CN-0042-S Stainless Steel 42000 BTU Propane Patio Heater Pyramid 90” / 2286mm 37878 PH-CN-0042-P Powder Coating 42000 BTU Propane Parts Breakdown Model PH-CN-0042-S 31879 Model PH-CN-0042-P 37878 Item No. Description Position Item No. Description Position Item No.
  • Page 18 Parts Breakdown Model PH-CN-0042-S 31879 Model PH-CN-0042-P 37878...
  • Page 19: Warranty Registration

    Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté...
