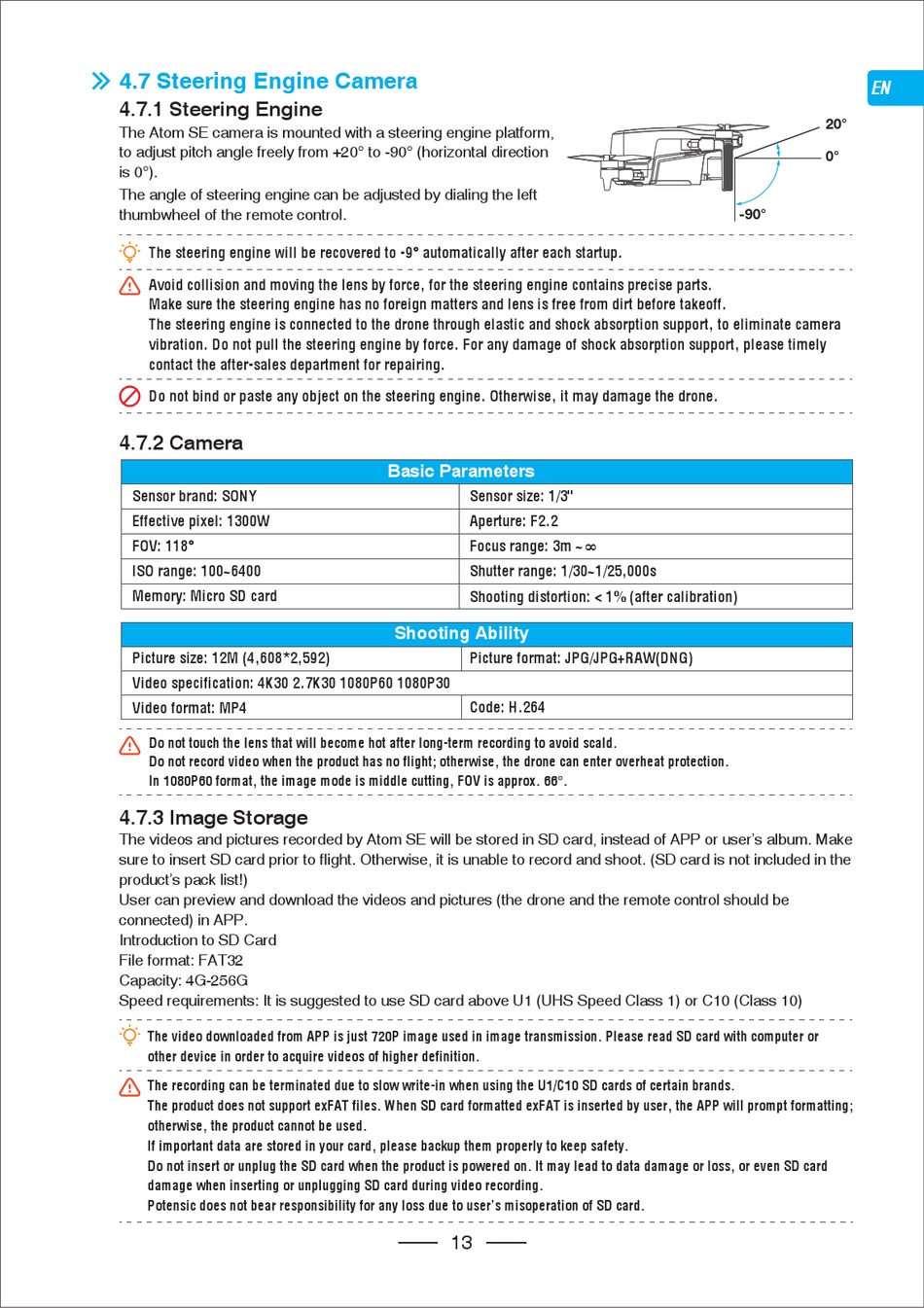

4.7 Steering Engine Camera
4.7.1 Steering Engine
The Atom SE camera is mounted with a steering engine platform,
to adjust pitch angle freely from +20° to -90° (horizontal direction
is 0°).
The angle of steering engine can be adjusted by dialing the left
thumbwheel of the remote control.
The steering engine will be recovered to -9° automatically after each startup.
Avoid collision and moving the lens by force, for the steering engine contains precise parts.
Make sure the steering engine has no foreign matters and lens is free from dirt before takeoff.
The steering engine is connected to the drone through elastic and shock absorption support, to eliminate camera
vibration. Do not pull the steering engine by force. For any damage of shock absorption support, please timely
contact the after-sales department for repairing.
Do not bind or paste any object on the steering engine. Otherwise, it may damage the drone.
4.7.2 Camera
Sensor brand: SONY
Effective pixel: 1300W
FOV: 118°
ISO range: 100~6400
Memory: Micro SD card
Picture size: 12M (4,608*2,592)
Video specification: 4K30 2.7K30 1080P60 1080P30
Video format: MP4
Do not touch the lens that will become hot after long-term recording to avoid scald.
Do not record video when the product has no flight; otherwise, the drone can enter overheat protection.
In 1080P60 format, the image mode is middle cutting, FOV is approx. 66°.
4.7.3 Image Storage
The videos and pictures recorded by Atom SE will be stored in SD card, instead of APP or user's album. Make
sure to insert SD card prior to flight. Otherwise, it is unable to record and shoot. (SD card is not included in the
product's pack list!)
User can preview and download the videos and pictures (the drone and the remote control should be
connected) in APP.
Introduction to SD Card
File format: FAT32
Capacity: 4G-256G
Speed requirements: It is suggested to use SD card above U1 (UHS Speed Class 1) or C10 (Class 10)
The video downloaded from APP is just 720P image used in image transmission. Please read SD card with computer or
other device in order to acquire videos of higher definition.
The recording can be terminated due to slow write-in when using the U1/C10 SD cards of certain brands.
The product does not support exFAT files. When SD card formatted exFAT is inserted by user, the APP will prompt formatting;
otherwise, the product cannot be used.
If important data are stored in your card, please backup them properly to keep safety.
Do not insert or unplug the SD card when the product is powered on. It may lead to data damage or loss, or even SD card
damage when inserting or unplugging SD card during video recording.
Potensic does not bear responsibility for any loss due to user's misoperation of SD card.
Basic Parameters
Sensor size: 1/3"
Aperture: F2.2
Focus range: 3m ~∞
Shutter range: 1/30~1/25,000s
Shooting distortion: < 1% (after calibration)
Shooting Ability
Picture format: JPG/JPG+RAW(DNG)
Code: H.264
