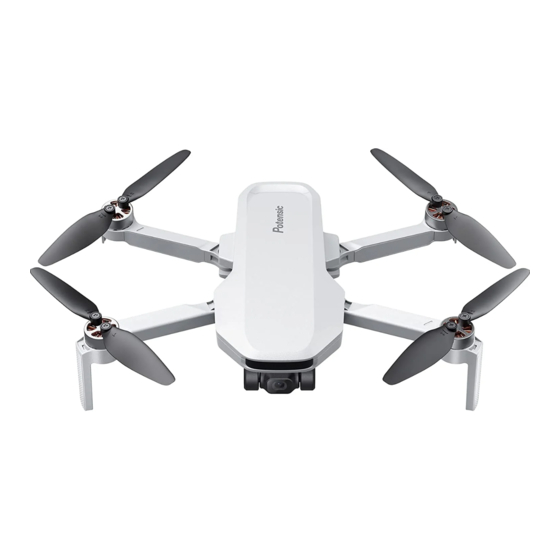

Potensic ATOM SE User Manual

Hide thumbs Also See for ATOM SE:

Advertisement

Quick Links

Download this manual
Email: support@potensic.com
Email: support.uk@potensic.com
Email: support.de@potensic.com
ATOM
User Manual
V01. 23. 03
Email: support.fr@potensic.com
Email: support.it@potensic.com
Email: support.es@potensic.com
SE
Email: support.jp@potensic.com
Web: www.potensic.com
FB: www.facebook.com/Potensic
DANGER
Only suitable
for ages 14+

Advertisement

loading
Need help?

Need help?

Do you have a question about the ATOM SE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Potensic ATOM SE

Summary of Contents for Potensic ATOM SE

  • Page 1 DANGER ATOM Only suitable for ages 14+ User Manual V01. 23. 03 Email: support@potensic.com Email: support.fr@potensic.com Email: support.jp@potensic.com Email: support.uk@potensic.com Email: support.it@potensic.com Web: www.potensic.com Email: support.de@potensic.com Email: support.es@potensic.com FB: www.facebook.com/Potensic...
  • Page 2 For any problem in use, handling and maintenance, please feel free to contact our local dealer or the Company. Potensic reserves the final interpretation right of this document and related product documents, and is subject to change without notice. Please visit https://www.potensic.com for the latest information.
  • Page 3 2. Make sure to read Disclaimer & Precautions first when consulting the Manual. 2.3 Tutorial Video / PotensicPro APP Scan the QR Code at the right side to watch Potensic Atom SE (Atom SE) tutorial video and download PotensicPro APP (APP) Please do watch the tutorial video in order to use the product correctly and safely.
  • Page 4 Contents 01 Disclaimer & Precautions 13 Remote Controller Disclaimer Overview Safety & Precautions Control Stick Mode Warning & Prompts Function Introduction Antenna Angle 02 Reading Tips Symbols 17 PotensicPro APP Suggestions of Use APP Homepage Tutorial Video/Download APP Flight Interface Registration &...
  • Page 5 Overview This chapter introduces the functional characteristics of Atom SE, as well as the component name of the drone and the remote control. 3.1 Introduction With foldable arms and weight below 250g, the product is portable, and can also be used without real-name registration in most countries.
  • Page 6 3.3 Remote Controller Diagram 1. Power button 6. Control stick Long press it for 2s to power on/off. 7. Foldable double antennas 2. Power indicator 8. Installation position of mobile device Indicate the power level or other status of To place mobile device. the remote controller 9.
  • Page 7 3.4 Preparing the Drone The product is delivered under folded status. Please unfold it as follows: 1. Unfold the front arm before the rear arm. 2. Unfold the propeller blades. 3.5 Preparing the Remote Controller Installation of mobile phone and control stick 1.
  • Page 8 3.6 Charging / Startup and Shutdown When receiving a new drone battery, it is required to charge it to wake it up, otherwise the drone wouldn't start. Connect the TYPE-C charging port of battery and a USB charger to the AC power supply to finish one-time charging (USB charger is not included in the package.
  • Page 9 This chapter sets down the functions of all parts of the drone. 4.1 Positioning Atom SE adopts Potensic's new SurgeFly™ flight control technology, which supports the following two positioning modes: GPS positioning: Provide precise positioning and navigation to the drone; support precise hovering, smart flight and auto return.
  • Page 10 4.4 Smart Battery 4.4.1 Function Atom SE smart battery is mounted with high-energy cell and advanced BMS. The details are as follows: Basic Parameters Model: DSBT02A Cell Qty. Battery Capacity 2 series...
  • Page 11 4.4.2 Battery Installation & Removal Installation: Removal: Push the battery into the product’s battery bin Firstly, press the buckle of smart battery, hold horizontally as shown in picture below, the battery the upper cover of battery to pull out the battery. buckle is bounced and locked when hearing “click”...
  • Page 12 4.5 Propellers There are two types of ATOM SE propellers, which are designed to spin in different directions. Marks are used to indicate which propellers should be attached to which motors, the two blades attached to one motor are the same.
  • Page 13 4.7.3 Image Storage The videos and pictures recorded by Atom SE will be stored in SD card, instead of APP or user’s album. Make sure to insert SD card prior to flight. Otherwise, it is unable to record and shoot. (SD card is not included in the product’s pack list!)
  • Page 14 Pixsync 2.0™ image transmission technology, offering a maximum transmission range of 4km/13,123ft and 720p when displaying video from the drone to Potensic Pro on your mobile device. Easily control the drone and camera using the onboard buttons. The detachable control sticks make the remote controller easier to store.
  • Page 15 5.3 Function 5.3.1 Function List 1. Connect the USB Charger to the USB C charging port. Charge 2. The battery is being charged when power indicator starts flashing. 3. Charging is completed when 4 LED indicators are solid on and data cable can be removed. Recharge mobile When a mobile device is connected, the remote controller automatically charges devices phone...
  • Page 16 5.3.2 Indicator As shown in the picture below, the remote control is fitted with 4 white LED indicators to indicate the power level and other status. Indicator is on LED 4 LED 1 Indicator is flashing LED 2 LED 3 Indicator is off Charging indication LED 1...
  • Page 17 5.3.3 Remote Controller Function The Atom SE drone and the remote controller can be used immediately after startup since they have passed frequency pairing before delivery. If a new remote controller or drone is used for the first time, user must conduct frequency pairing for them as follows prior to use: 1.
  • Page 18 6. PotensicPro APP 6.1 APP Homepage Tap the icon to view the tutorials, flight tips, flight records, flight logs and manual documents Tap to choose the corresponding model. The drone model will be matched automatically if user has connected the remote control to the mobile phone Display connection status Tap to enter the flight interface...
  • Page 19 6.2 Flight Interface 1. Return button: 5. Positioning mode: Tap to return to the homepage GPS positioning Visual positioning 2. Navigation prompt bar: Attitude mode, no positioning Display drone status and flight mode 6. GPS status: 3. Flight mode: Display GPS signal status and quantity of satellites Video searched Normal...
  • Page 20 It is recommended to replace any outdated mobile device which may have a negative impact on user experience of APP and lead to potential dangers. For any poor user experience and safety problems due to the use of an outdated mobile device, Potensic does not bear any liability.
  • Page 21 It is advised to tap and read for first-time users. Follow the animated guide and operate 7.4 Flight Mode ATOM SE has three flight modes-Video/Normal/Sport, which can be switched via the APP. Video Mode Ascending: 2m/s, descending: 1.5m/s, horizontal movement: 6m/s The system will enter beginner mode by default when using the drone for the first time, and the flight mode will be limited at beginner mode.
  • Page 22 7.5 Compass Calibration 7.5.1 Scenarios Requiring Compass Calibration 1. Compass calibration is required for first time using. 2. Flying at a location further than 31 miles (50 km) away from the location the drone was last flown. DO NOT calibrate the compass in locations where magnetic interference may occur such as close to magnetite deposits or large metallic structures such as parking structures, steel reinforced basements, bridges, cars, or scaffolding.
  • Page 23 7.7 Takeoff/Landing/Hovering 7.7.1 Manual Takeoff/Landing Takeoff Step 1: Start the motors Use a combination stick command to start the motors. Push both sticks to the bottom inner or outer corner depending on your control stick mode to start the motors. Release both sticks simultaneously once the motors are spinning.
  • Page 24 7.8.2 Circle Flight Start circle flight, the drone will fly forwards by taking the current position as circle center Description until it reaches the starting point of circle flight; When user tap in APP, the drone will fly around the circle at a set speed and direction. Adjustable parameter User can set the flight radius, speed and direction of circle flight in setting menu.
  • Page 25 7.9 Return(RTH) The return consists of three steps, as follows: 1. Ascent: The drone ascends to the set return altitude (this step is skipped if the drone's altitude is already higher than the return altitude). 2. Level flight: The drone maintains a straight flight at the set altitude towards the home point. 3.
  • Page 26 8. Appendix 8.1 Specification & Parameters Drone Takeoff weight: < 249 g (the takeoff weight includes battery Operating temperature: 0 °C ~ 40 °C and propeller blades) GNSS: GPS + GLONASS Fold size: 88x143x58 mm Operating frequency: 2.400 ~ 2.4835 GHz Unfold size (propeller blades included): 300x242x58 mm Transmission power: 2.4 GHz: <...
  • Page 27 DANGER Only suitable for ages 14+ Warning: The product should only be used by adults and children over 14 years. Adult supervision is required for children under 14 years. Hinweis: Dieses Produkt ist für die Erwachsene und die Kinder ab 14 Jahren. Die Kinder unter 14 Jahren müssen von Erwachsenen beaufsichtigt werden.
