Ages 14+

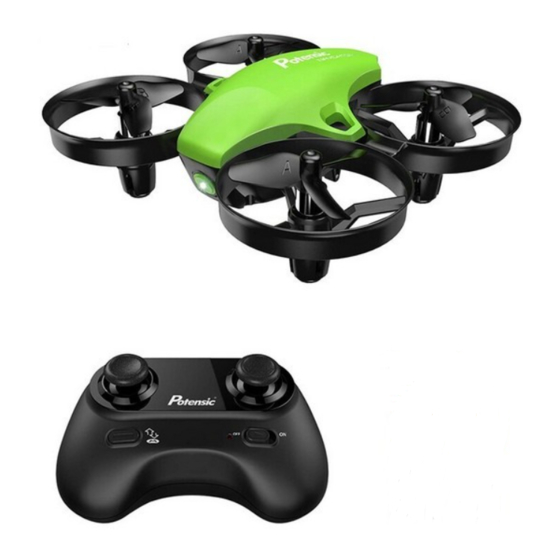

A20
Operations Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Potensic A20

Summary of Contents for Potensic A20

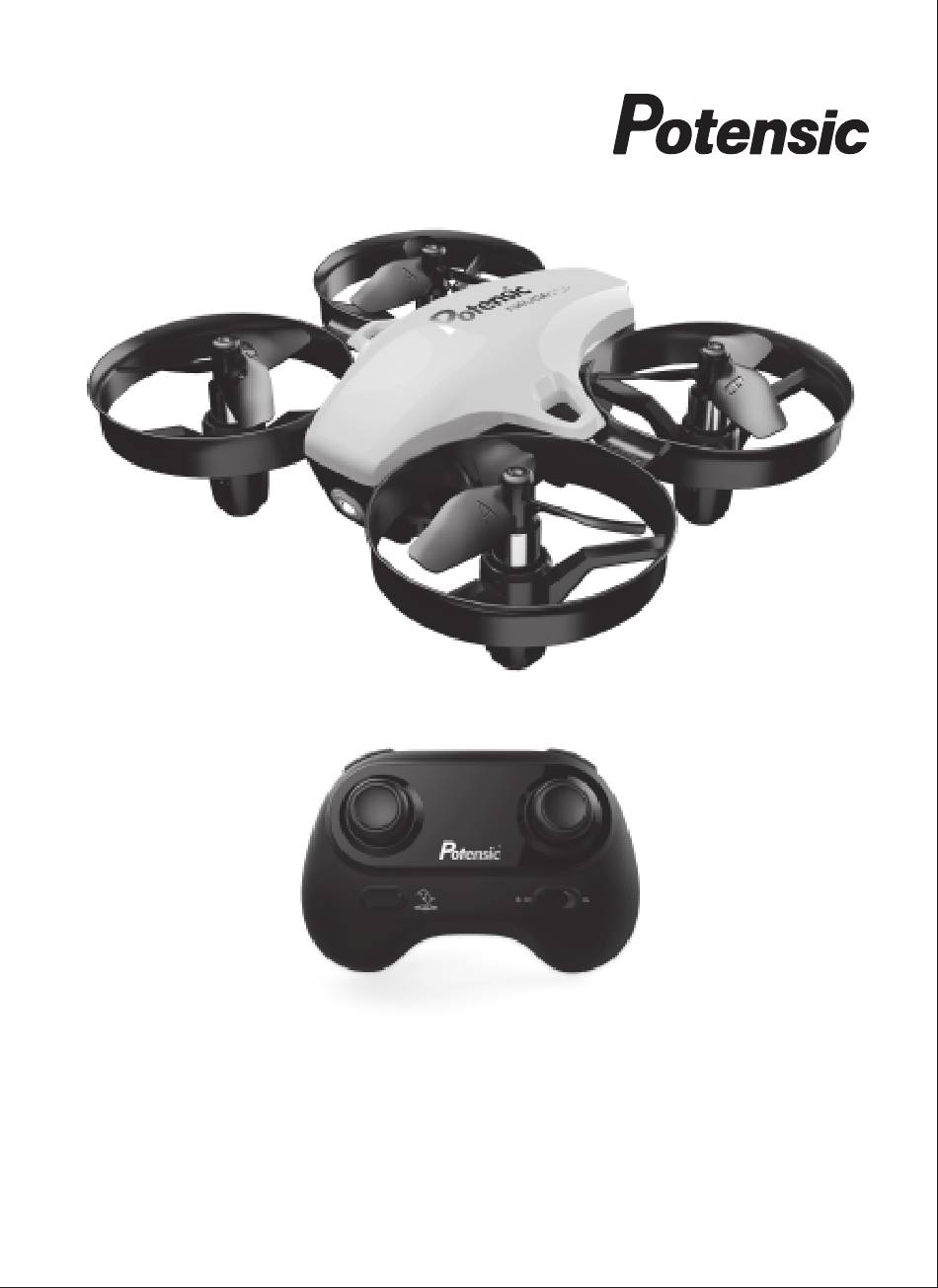

  • Page 1 Ages 14+ Operations Guide...
  • Page 2 CAUTION This toy is recommended for children 14 years of age and older. To ensure that the child’s play is both safe and fun, please read the operating instruction and the general safety rules with your child. Keep eyes, face, fingers and hair away from the rotor blade, tail blade and gear, as they will rotate at very high speed while the aircraft is flying.

  • Page 3: General View

    General View 1. Drone Front Propeller B Propeller A Left Right Drone cover Propeller B Propeller A Rear LED light Motor Motor Holder Holder Motor Motor Holder Holder Power switch...

  • Page 4: Specifications

    2. Specifications Drone size 90x80x32mm Flight time 5~6 mins The main Weight of drone 25.8g 0615x4 motor Remote Propeller diameter Ø32mm 2.4Ghz control mode Drone battery 3.7Vx180mAh Flying distance 10~15 m 40 mins Charging time of drone battery 3. Overview Chart Name Name Drone cover...

  • Page 5: Remote Control

    4. Remote Control Rotation Button Headless High / Medium/ Circle Fly Button Low Speed button Left Joystick Right Joystick One button Power Switch Take Off / Landing / Emergency Stop Button Power indicator...

  • Page 6: Introduction To Button Functions

    Flip mode button ( press ) / Fine tuning mode button ( long press ) 5. Introduction to Button Functions Move the joystick forward / backward / left / right Left Joystick to make the drone fly upward / downward / left / right Move the joystick forward / backward / left / right Right Joystick...

  • Page 7: Remote Control Battery Installation

    6. Remote Control Battery Installation Open the battery cover of the remote control, insert 3 AAA batteries according to the instructions (as shown below, batteries are not included), and then close the battery cover. Battery Cover 3X1.5V Alkaline Batteries Notice: 1.
  • Page 8 Phone Power Computer Charger Bank Charging Charger * For faster charging, it is recommended to use an adapter with an output current of 5V 2A ( not included ) to charge the battery. Li-po Battery Disposal & Recycling Disposed lithium polymer batteries must not be placed with household garbage.
  • Page 9 3. Battery Loading and Unloading Diagram Buckle down the battery cover, put the battery into the drone, and then buckle up the battery cover ( Picture 3 / 4). Picture 3 Picture 4 4. Pre-flight Precautions 1. Make sure the remote control and the battery of the drone are fully charged.

  • Page 10: Flight Steps

    Flight Steps 1. Frequency Pairing When the drone is turned on, the light on the fuselage will flash rapidly. When the light flashes slowly, it indicates that frequency pairing is entered. It must be placed on a surface! Turn on the remote control, the power indicator lights up and flashes rapidly.

  • Page 11: Emergency Landing

    2. Take Off After a successful calibration, press this button and the drone will automatically take off and remain at an altitude of approximately 1.2 meters. 3. Landing Press this button to land the drone automatically. (When pressing this button, do not touch the left joystick, otherwise it may not work).
  • Page 12 5. Calibration (This function is used in case of flight abnormalities) Push the right joystick as picture shown after successful frequency pairing (Do not push the left joystick until then). Please release it when the drone front body indicator light flash 3 times and turn to solid color, indicating that calibration is completed.

  • Page 13: Flight Control

    7. Flight Control Push the joystick upwards, then the drone flies up. Pull the joystick downwards, Left the drone goes down. Joystick Move the joystick to the left, the drone rotates counterclockwise Move the joystick to the right, the drone rotates clockwise.
  • Page 14 Push the joystick upwards, the drone flies forward. Right Joystick Pull the joystick downwards, the drone goes backward. Move the joystick to the left, the drone moves to the left Move the joystick to the right, the drone moves to the right...

  • Page 15: Stunt Flying

    8. Stunt Flying Rotation Mode: Short press the rotation button to start / quit the rotation mode, the remote control will beep at this time. Rotation Button Circle Fly Mode: Short press the circle button to start / quit circle fly mode, then the remote control will beep.
  • Page 16 9. 3D Flip Step 1: Short press the left joystick to start the flip mode, at this time the remote control emits a continuous "beep" sound. Step 2: Push the right joystick forward and the drone will immediately flip forward 360°. Tips: If you want to flip in another direction, push the right joystick to another direction.
  • Page 17 Forward and Backward Fine-tuning While in flight, if the drone tilts forward, press down the fine-tuning button, and push the right joystick backwards. Otherwise push forwards. Left / Right Rotates Fine-tuning While in flight, if the drone head rotates to the left, press the fine-tuning button, and push left joystick to right.

  • Page 18: Functions Mode

    Functions Mode 1. Altitude Hold Mode Intelligent flight control system calculates the hovering position, makes it easier for beginners to control. Note: If there’s propeller or motor is damaged, the constant height function will not work. The altitude hold function will also not work due to unstable atmospheric pressure or unsuitable weather.
  • Page 19 3. Headless Mode The default setting is Non-headless Mode Under headless mode, the users can operate the drone without worrying about the orientation (left is left and right is right all the time, regardless of where your drone is pointing at).

  • Page 20: Low Battery Alarm

    * Press headless mode button to activate the function, then the LED light at the rear of the drone will keep flashing 3 times and stop for 1 second. To exit the Headless Mode, press the button again, at this time the LED light on the rear of drone will turn to solid color.

  • Page 21: Important Notice

    Drone Cover Drone Bottom Propeller A/B Lampshade Pressure Parts Receiver Board LED Light Drone Battery USB Cable Clockwise Motor Counterclockwise Motor Remote Control (Red and Blue wire) (Black and White wire) Important Notice Our products are always being improved and designs and specifications are subject to change without notice.

  • Page 22: Troubleshooting

    Troubleshooting Problem Problem Cause Solution 1. Replace the remote control 1. Low battery. battery. Indicator 2. The positive and 2. Install the battery in light of the negative poles of accordance with the user remote the battery are in manual. reverse order.
  • Page 23 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio...
  • Page 24 EC REP 1: DST Co., Ltd. Fifth Floor 3 Gower Street, London, WC1E 6HA, UK EC REP 2: Like Sun GmbH. Planckstr.59, 45147 Essen, Germany FCC ID: ZKWUA221803001 C020009V02 MADE IN CHINA www.potensic.com support@potensic.com support.uk@potensic.com support.de@potensic.com support.fr@potensic.com support.it@potensic.com support.es@potensic.com support.jp@potensic.com 210-113141...
