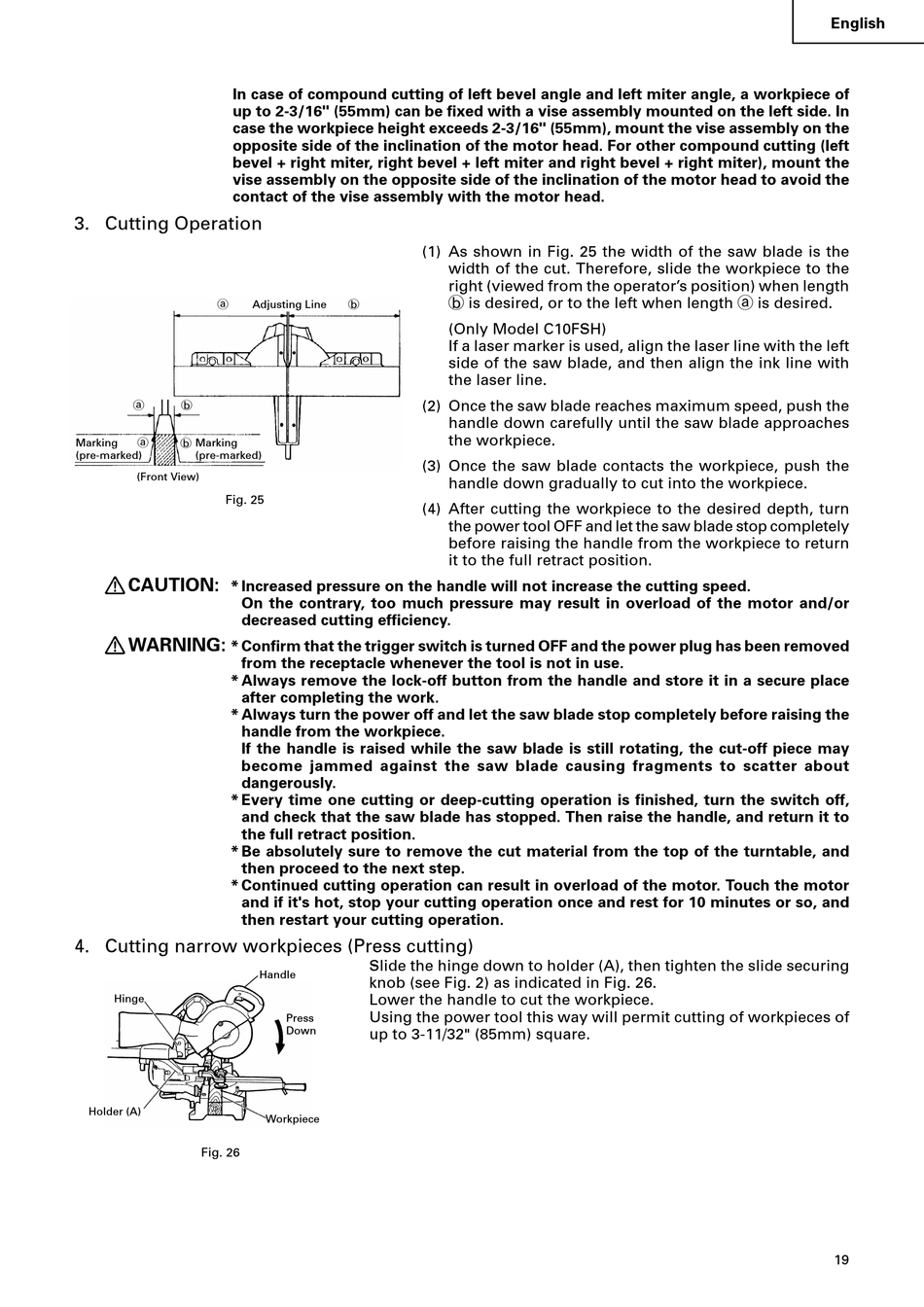

Hitachi C 10FSH Instruction Manual page 19

In case of compound cutting of left bevel angle and left miter angle, a workpiece of
up to 2-3/16" (55mm) can be fixed with a vise assembly mounted on the left side. In
case the workpiece height exceeds 2-3/16" (55mm), mount the vise assembly on the
opposite side of the inclination of the motor head. For other compound cutting (left
bevel + right miter, right bevel + left miter and right bevel + right miter), mount the
vise assembly on the opposite side of the inclination of the motor head to avoid the
contact of the vise assembly with the motor head.
3. Cutting Operation
a
a b
a b
Marking Marking
(pre-marked) (pre-marked)
(Front View)
Fig. 25
CAUTION:
* Increased pressure on the handle will not increase the cutting speed.
On the contrary, too much pressure may result in overload of the motor and/or
decreased cutting efficiency.
WARNING:
* Confirm that the trigger switch is turned OFF and the power plug has been removed
from the receptacle whenever the tool is not in use.
* Always remove the lock-off button from the handle and store it in a secure place
after completing the work.
* Always turn the power off and let the saw blade stop completely before raising the
handle from the workpiece.
If the handle is raised while the saw blade is still rotating, the cut-off piece may
become jammed against the saw blade causing fragments to scatter about
dangerously.
* Every time one cutting or deep-cutting operation is finished, turn the switch off,
and check that the saw blade has stopped. Then raise the handle, and return it to
the full retract position.
* Be absolutely sure to remove the cut material from the top of the turntable, and
then proceed to the next step.
* Continued cutting operation can result in overload of the motor. Touch the motor
and if it's hot, stop your cutting operation once and rest for 10 minutes or so, and
then restart your cutting operation.
4. Cutting narrow workpieces (Press cutting)
Hinge
Holder (A)
Fig. 26
(1) As shown in Fig. 25 the width of the saw blade is the
b
Adjusting Line
(2) Once the saw blade reaches maximum speed, push the
(3) Once the saw blade contacts the workpiece, push the
(4) After cutting the workpiece to the desired depth, turn
Slide the hinge down to holder (A), then tighten the slide securing
Handle
knob (see Fig. 2) as indicated in Fig. 26.
Lower the handle to cut the workpiece.
Using the power tool this way will permit cutting of workpieces of
Press
Down
up to 3-11/32" (85mm) square.
Workpiece
width of the cut. Therefore, slide the workpiece to the
right (viewed from the operator's position) when length
b is desired, or to the left when length a is desired.
(Only Model C10FSH)
If a laser marker is used, align the laser line with the left
side of the saw blade, and then align the ink line with
the laser line.
handle down carefully until the saw blade approaches
the workpiece.
handle down gradually to cut into the workpiece.
the power tool OFF and let the saw blade stop completely
before raising the handle from the workpiece to return
it to the full retract position.
English
19
