DAHT Adapter
Assembly
Crimp Head
Mounting Holes
Typical Closed-End Splice
Crimping Head for Use with
DAHT Assembly (Ref)

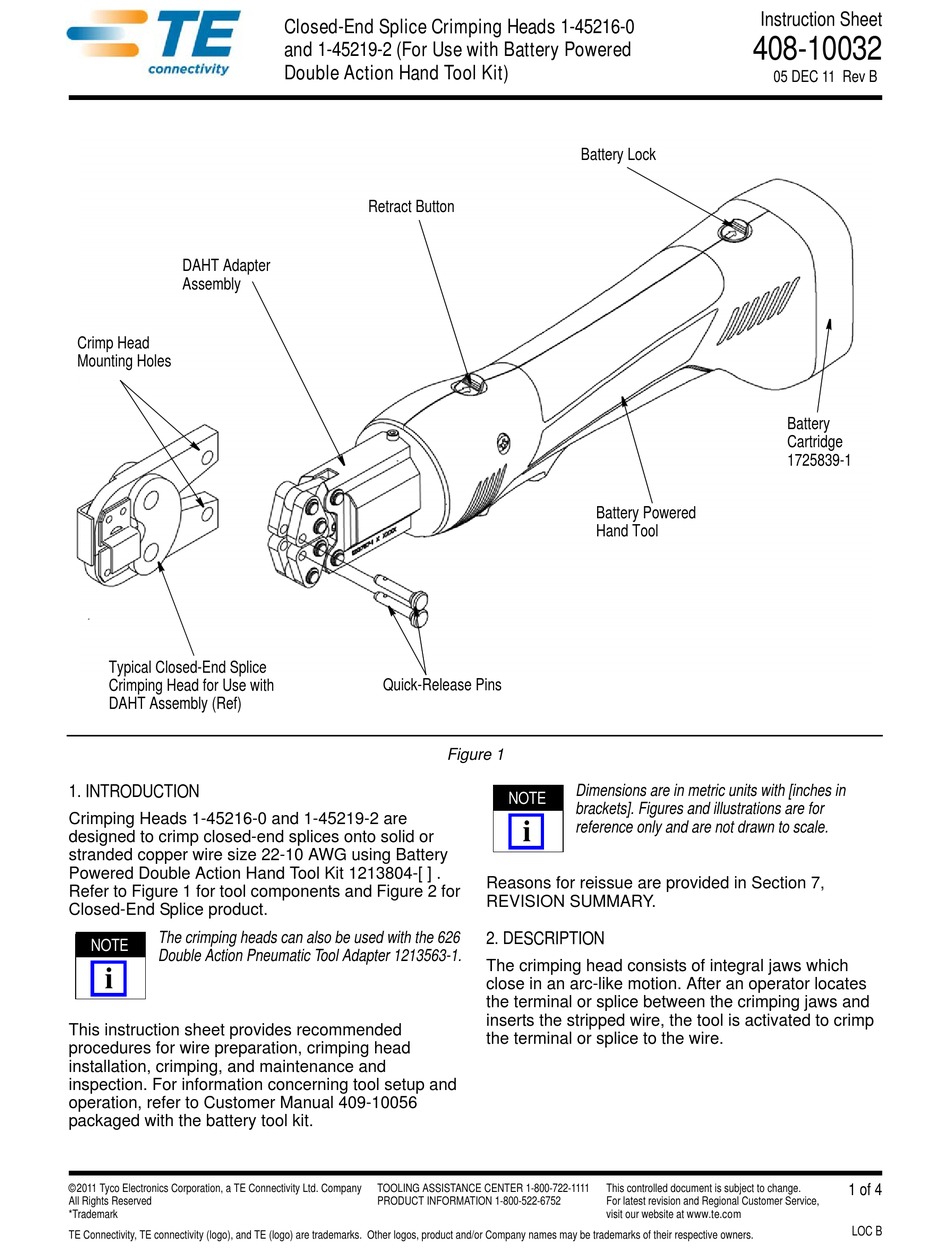

1. INTRODUCTION
Crimping Heads 1-45216-0 and 1-45219-2 are
designed to crimp closed-end splices onto solid or
stranded copper wire size 22-10 AWG using Battery
Powered Double Action Hand Tool Kit 1213804-[ ] .
Refer to Figure 1 for tool components and Figure 2 for
Closed-End Splice product.
The crimping heads can also be used with the 626
NOTE
Double Action Pneumatic Tool Adapter 1213563-1.
i
This instruction sheet provides recommended
procedures for wire preparation, crimping head
installation, crimping, and maintenance and
inspection. For information concerning tool setup and
operation, refer to Customer Manual 409-10056
packaged with the battery tool kit.
© 2011 Tyco Electronics Corporation, a TE Connectivity Ltd. Company
All Rights Reserved
*Trademark
TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product and/or Company names may be trademarks of their respective owners.
Closed-End Splice Crimping Heads 1-45216-0
and 1-45219-2 (For Use with Battery Powered
Double Action Hand Tool Kit)
Retract Button
Quick-Release Pins
Figure 1
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
Battery Lock
Battery Powered
Hand Tool
Dimensions are in metric units with [inches in
NOTE
brackets]. Figures and illustrations are for
reference only and are not drawn to scale.
i
Reasons for reissue are provided in Section 7,
REVISION SUMMARY.
2. DESCRIPTION
The crimping head consists of integral jaws which
close in an arc-like motion. After an operator locates
the terminal or splice between the crimping jaws and
inserts the stripped wire, the tool is activated to crimp
the terminal or splice to the wire.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.te.com
Instruction Sheet
408-10032
05 DEC 11 Rev B
Battery
Cartridge
1725839-1
1 of 4
LOC B
Advertisement
Table of Contents
Related Manuals for TE Connectivity 1-45216-0
Summary of Contents for TE Connectivity 1-45216-0
- Page 1 PRODUCT INFORMATION 1-800-522-6752 For latest revision and Regional Customer Service, *Trademark visit our website at www.te.com LOC B TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product and/or Company names may be trademarks of their respective owners.
- Page 2 SPLICE TYPE CODE TYPE CHART MIN. MAX. CODE (AWG) DOCUMENT 34304 Vinyl 408-1394 35115 NYLON Trans 408-1271 18-16 1-45216-0 22-14 8.38 [.330] 9.14 [.360] ECV-ECN 36964 Vinyl Purple 408-1394 2-328375-3 Vinyl Purple 408-1394 35653 NYLON Trans 408-1021 10.67 [.420] 11.43 [.450]...
- Page 3 408-10032 4. Depress the trigger to advance the moving ram. 3. Make certain all surfaces are protected with a thin This closes the crimp jaws in order to hold the coat of any good SAE 20 motor oil. Do NOT oil terminal in place.
- Page 4 1-800-526-5142, or send a TOOL NUMBER NO-GO facsimile of your purchase order to 1-717-986-7605, or write to: 2.311 - 2.319 2.461 - 2.464 1-45216-0 [.0910 - .0913] [.0969 - .0970] CUSTOMER SERVICE (038-035) 3.124 - 3.132 3.274 - 3.277 TYCO ELECTRONICS CORPORATION...
