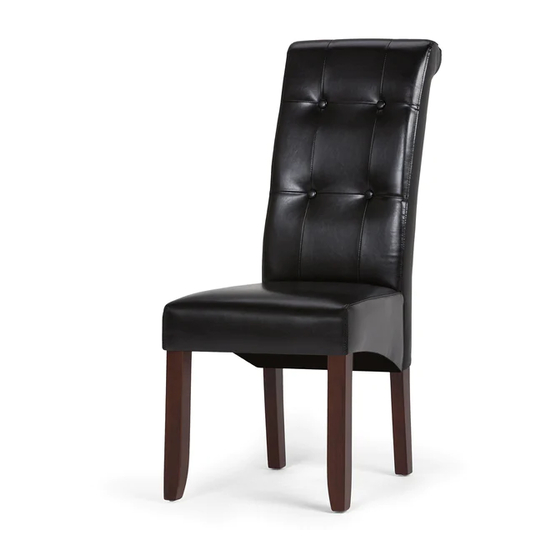

- Page 1 COSMOPOLITAN / ESSEX / CITY DELUXE TUFTED PARSON CHAIR MODEL # WS5109-4-LBL...
- Page 2 PRE-ASSEMBLY INFORMATION PARTS DESCRIPTION CHAIR BACK FRONT LEG SEAT QTY 1 QTY 2 QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext. 262 (9 am to 4 pm EST)
- Page 3 PRE-ASSEMBLY INFORMATION HARDWARE DESCRIPTION ALLEN KEY ALLEN KEY SCREW ALLEN KEY SCREW 5 MM M8 x 45 MM M8 x 55 MM QTY 1 QTY 5 QTY 4 LOCK WASHER FLAT WASHER Ø13 MM Ø22 MM QTY 9 QTY 9 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext.
- Page 4 ASSEMBLY STEP 1 Attach Seat (B) to Chair Back (A) by inserting Allen Key Screws (1) and five Washers each of (4) and (5). Use Allen Key (3) to tighten. Do not over-tighten.
- Page 5 ASSEMBLY STEP 2 Attach Front Legs (C) to Seat (B) using Allen Key Screws (2) and four Washers each of (4) and (5) into pre-drilled holes. Use Allen Key (3) to tighten. Do not over-tighten.
- Page 6 ASSEMBLY STEP 3 Place Chair on a flat level surface to ensure it is level. If it is uneven, adjust either the Seat (B) or Front Legs (C). Ensure the Chair is level and then fully tighten all bolts.
- Page 7 ASSEMBLY STEP 5 Attach fabric with Velcro to bottom of Seat.
