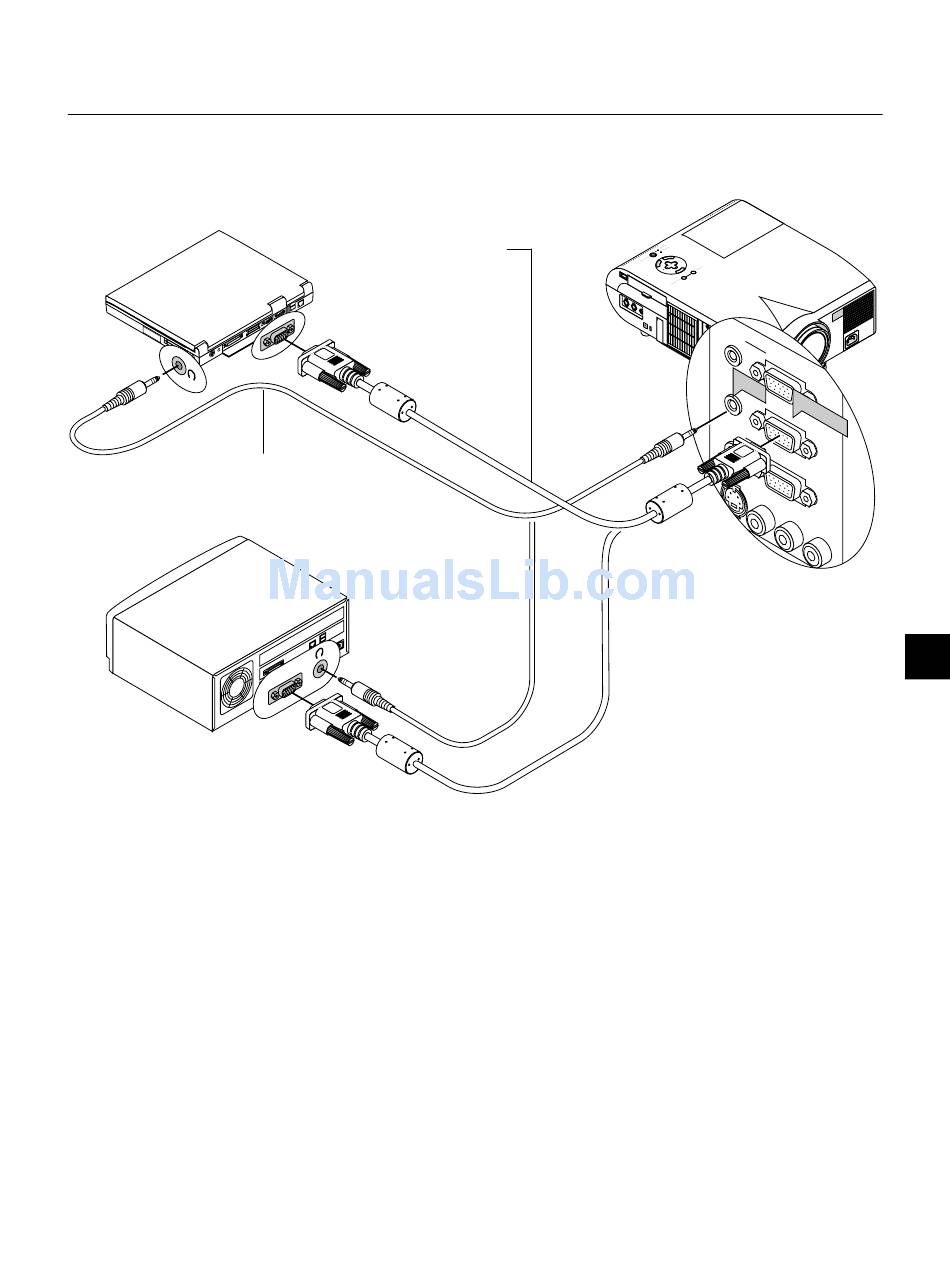

Connecting Your PC

IBM VGA or Compatibles (Notebook type)
Audio cable (not supplied)
IBM VGA or Compatibles (Desktop type)
Connecting your PC to your MultiSync MT1055 and MT1050 (XGA)/
MT850 (SVGA) projector will enable you to project your computer's
screen image for an impressive presentation.
To connect to a PC, simply:
1. Turn off the power to your projector and computer.
2. Use the supplied signal cable to connect your PC to the projector.
3. Turn on the projector and the computer.
4. If the projector goes blank after a period of inactivity, it may be caused
by a screen saver installed on the computer you've connected to the
projector.
RGB signal cable (supplied)
To mini D-Sub 15-pin connector on the
projector. It is recommended that you
use a commercially available distribu-
tion amplifier if connecting a signal
cable longer than the supplied one.
E – 19
