Distance Chart

Screen top
B
D
Screen Bottom

Ceiling Installation

D
B
Screen Bottom
WARNING
• Installing your projector on the ceiling must be done by a quali-
fied technician. Contact your NEC dealer for more information.
* Do not attempt to install the projector yourself.
• Only use your projector on a solid, level surface. If the projector
falls to the ground, you can be injured and the projector se-
verely damaged.
• Do not use the projector where temperatures vary greatly. The
projector must be used at temperatures between 32˚F (0˚C)
and 104˚F (40˚C).
• Do not expose the projector to moisture, dust, or smoke. This
will harm the screen image.
• Ensure that you have adequate ventilation around your projec-
tor so heat can dissipate. Do not cover the vents on the side or
the front of the projector.

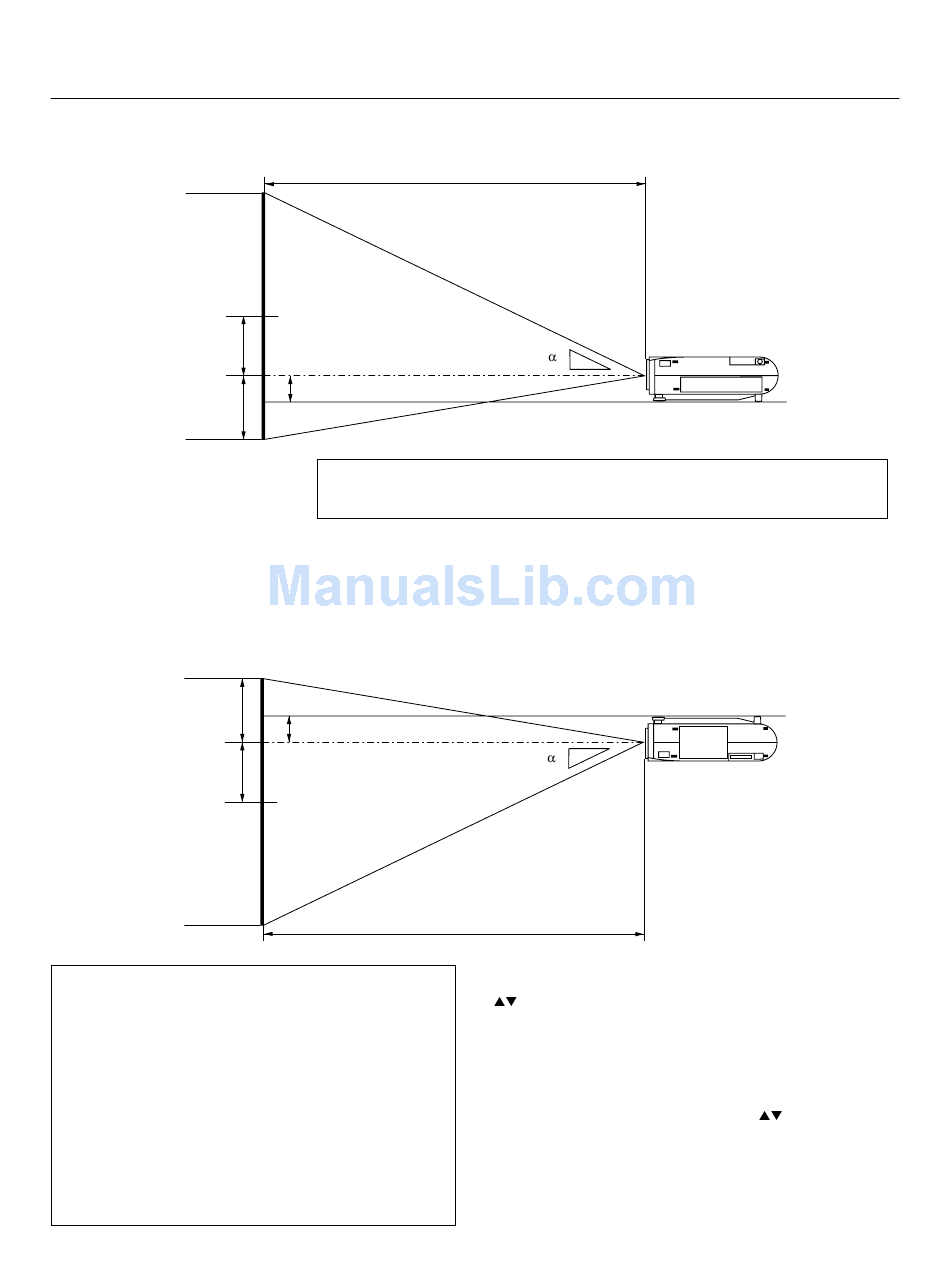

Throwing Distance (C)
Screen center
Lens Center
2.9" (79.5mm)
B=Vertical distance between lens center and screen center
C=Throw distance
D=Vertical distance between lens center and screen bottom (screen top for ceiling installation)
Screen top
2.9" (79.5mm)
Lens Center
Throwing Angle ( )
Screen center
Throwing Distance (C)
Throwing Angle ( )
If your projector is mounted on the ceiling and your image is upside
down, use the "Menu" and "Select" buttons on your projector cabinet or
button on your remote control to correct the orientation. (See page
E-36.)

Reflecting the Image

Using a mirror to reflect your projector's image enables you to enjoy a
much larger image. Contact your NEC dealer if you need a mirror. If
you're using a mirror and your image is inverted, use the "Menu" and
"Select" buttons on your projector cabinet or
mote control to correct the orientation. (See page E-36.)
