Connecting Your PC

IBM VGA or Compatibles
(Notebook type)
IBM VGA or Compatibles
(Desktop type)
Connecting your PC to your MultiSync VT440 (SVGA)/ VT540 (XGA) projector will enable you to project your computer's screen image for
an impressive presentation.
To connect to a PC, simply:
1. Turn off the power to your projector and computer.
2. Use the supplied signal cable to connect your PC to the projector.
3. Turn on the projector and the computer.
4. If the projector goes blank after a period of inactivity, it may be caused by a screen saver installed on the computer you've connected to the
projector.

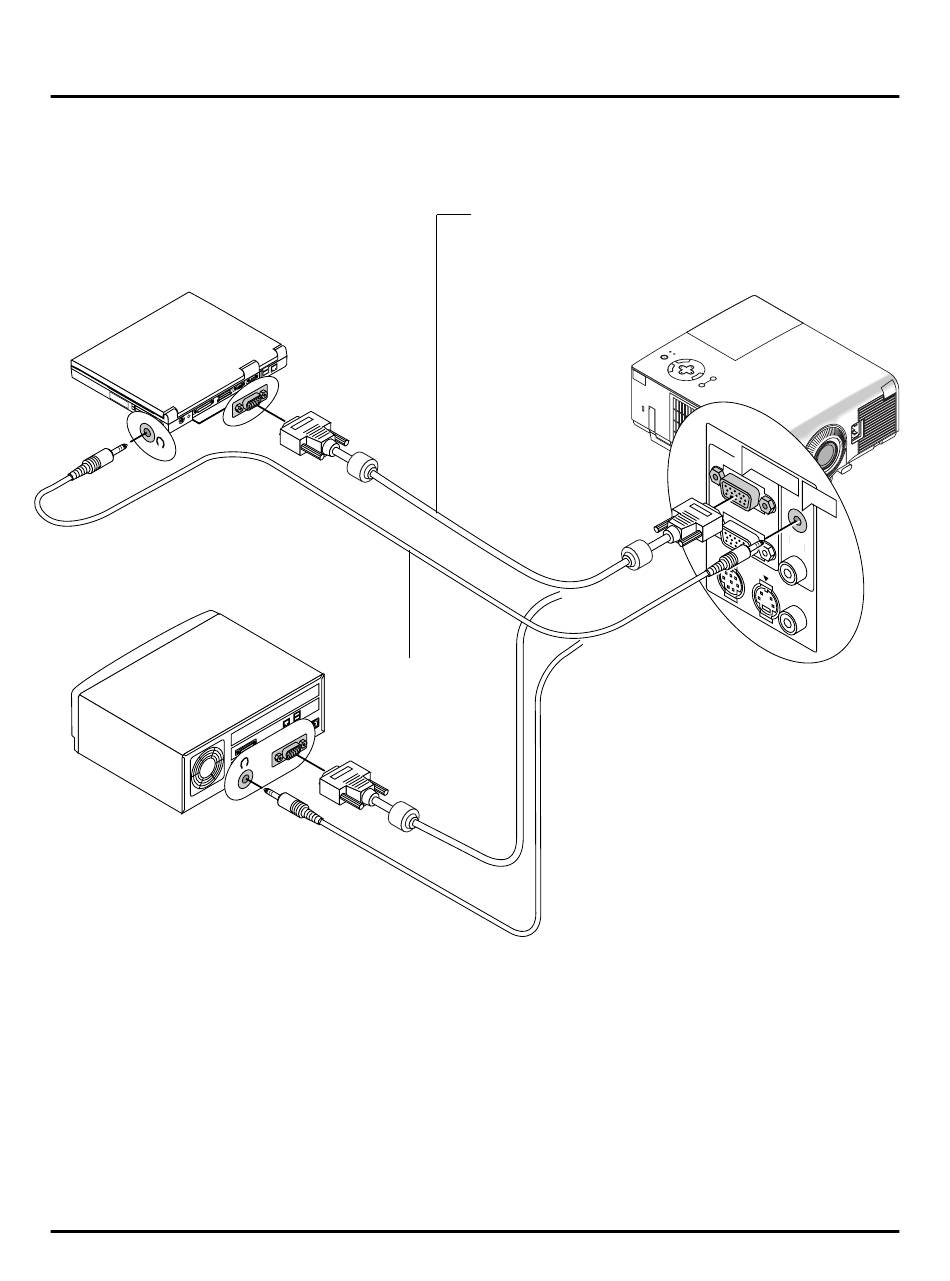

Signal cable (supplied)
To mini D-Sub 15-pin connector on the projector. It is recom-
mended that you use a commercially available distribution ampli-
fier if connecting a signal cable longer than the supplied one.
Audio cable
(not supplied)
