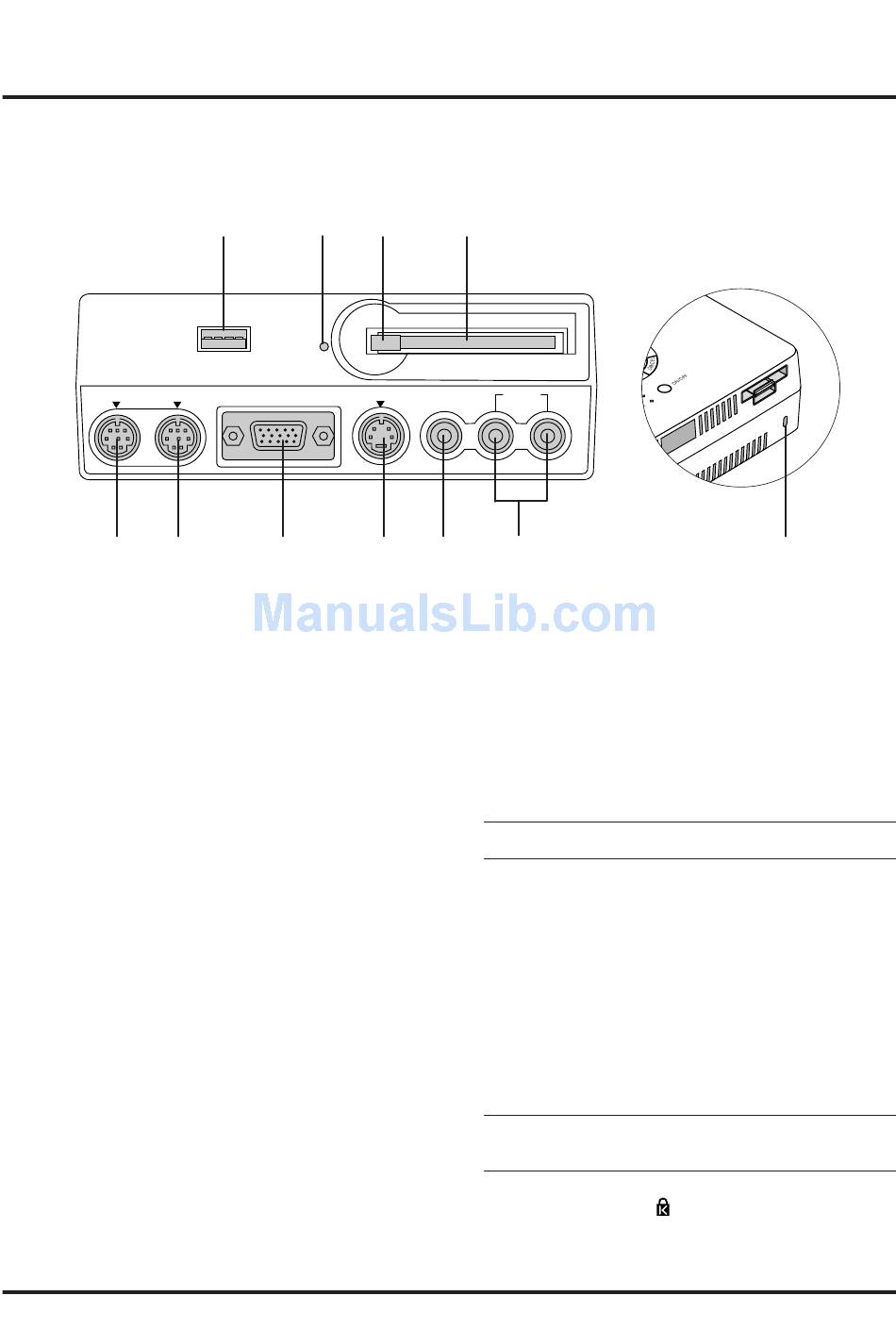

Terminal Panel Features

USB
PC CONTROL MOUSE OUT
5
This panel is located on the left side and is where you connect your
cables.
1 USB (Mouse) Terminal
Connect a commercially available mouse that supports USB. You
can operate the menu or PC Card Viewer with the USB mouse via
this terminal.
Note that this terminal is not used with a computer and that there
may be some brands of USB mouse that the projector does not
support.
2 PC Card Access Indicator
Lights while accessing a CompactFlash memory card.
3 Eject Button
Press to eject a CompactFlash memory card.
4 PC Card Access Slot
Insert a CompactFlash memory card here.
5 PC Control Port (Mini DIN 8 Pin)
Use this port to connect your PC to control your projector. This
enables you to use your PC and serial communication protocol to
control the projector. If you are writing your own program, typical
PC control codes are on page E-42.
A cap is put on the port at the factory. Remove the cap when using
the port.
6 Mouse Output Port (Mini DIN 8 Pin)
Not available when the supplied card remote is used.
Use this port to operate your computer's mouse functions from the
NEC optional full function remote control. When your computer
is connected here with the NEC optional full function remote con-
trol (LT40RT), the remote sensors on the projector cabinet will
receive your mouse commands.
2
1
PC CARD
ACCESS
RGB INPUT
6 7
3 4
S-VIDEO VIDEO AUDIO
L ( MONO )
8 9 10
7 RGB Input/ Component Input Connector (Mini D-Sub 15 pin)
Connect your PC or other RGB equipment such as IBM or compatible
computers. Use the signal cable that's supplied to connect to a PC. Or
connect a Macintosh or compatible computer here using the signal
cable and the pin adapter that is supplied. This also serves as a compo-
nent input connector which allows you to connect a component video
output of a component equipment such as a DVD player.
8 S-Video Input (Mini DIN 4 Pin)
Here is where you connect the S-Video input from an external
source like a VCR.
NOTE: S-Video provides more vivid color and higher resolution
than the traditional composite video format.
9 Video Input (RCA)
Connect a VCR, DVD player, laser disc player, or document cam-
era here to project video.
10 Left Channel/Mono Audio Input Jack (RCA)
This is the left channel audio input for stereo sound coming from
video equipment or audio system. This also serves as your monau-
ral audio input. (Video and S-video only)
Right Channel Audio Input Jack (RCA)
This is the right channel audio input for stereo sound. (Video and
S-video only)
NOTE: Although stereo Audio input jacks are provided, the pro-
jector will only produce Mono sound. This is due to one speaker
limitation of the projector.
11 Built-in Security Slot ( )
This security slot supports the MicroSaver
MicroSaver
The logo is trademarked and owned by Kensington Microware Inc.
E–9
Slot for Kensington
MicroSaver Security System
R
® is a registered trademark of Kensington Microware Inc.
11
® Security System.
