D-Sub Pin Assignments

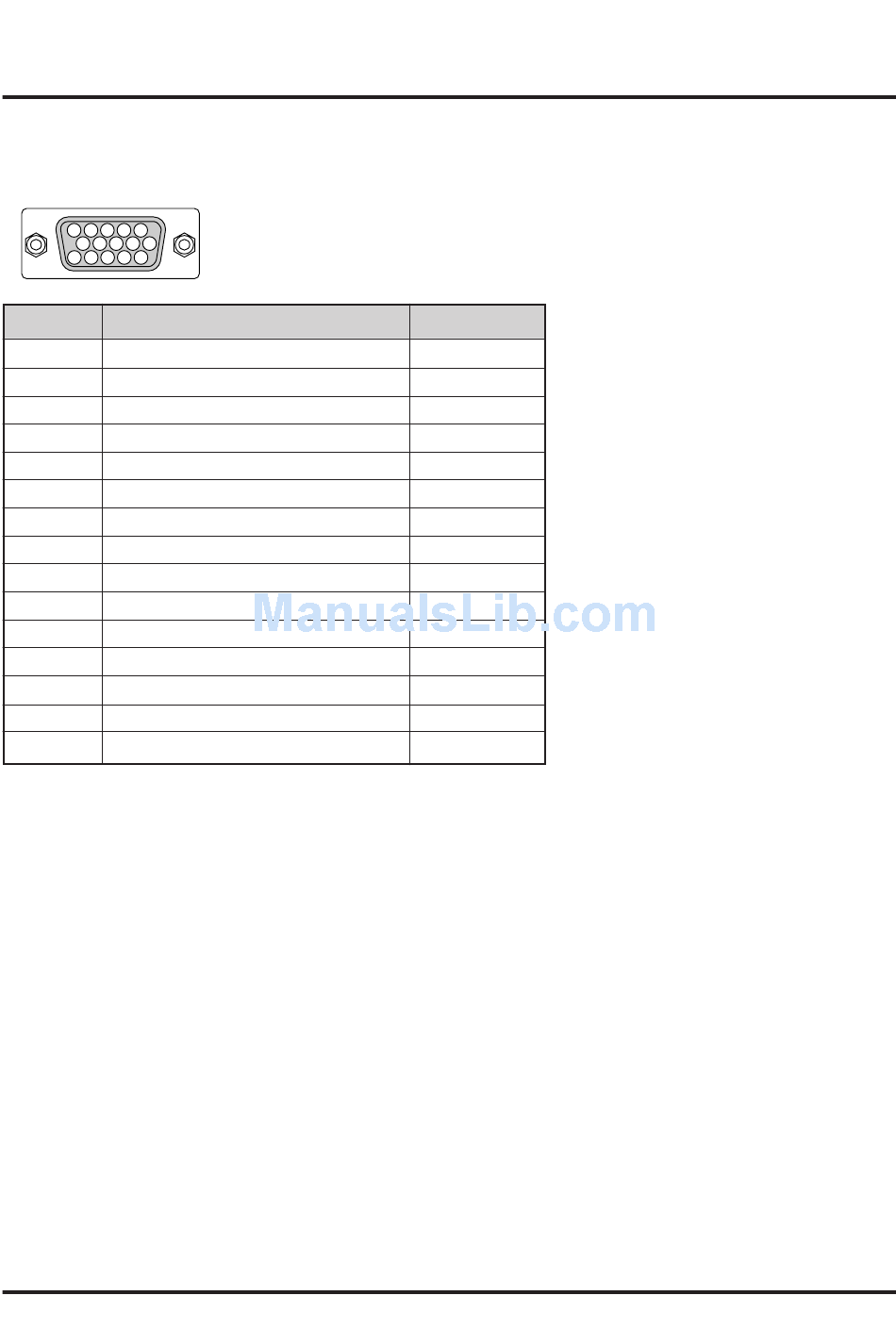

Mini D-Sub 15 Pin Connector
5 4 3 2 1
10 9 8 7 6
15 14 13 12 11
Pin No. RGB Signal (Analog)
1 Red
2 Green or Sync on Green
3 Blue
4 Ground
5 Ground
6 Red Ground
7 Green Ground
8 Blue Ground
9 No Connection
10 Sync Signal Ground
11 Ground
12 Bi-directional DATA (SDA)
13 Horizontal Sync or Composite Sync
14 Vertical Sync
15 Data Clock
Signal Level
Video signal : 0.7Vp-p (Analog)
Sync signal : TTL level
YCbCr Signal
Cr
Y
Cb
Cr Ground
Y Ground
Cb Ground
E–40
