Summary of Contents for SIMPLIHOME brooklyn + max WyndenHall AXCBED39-TB

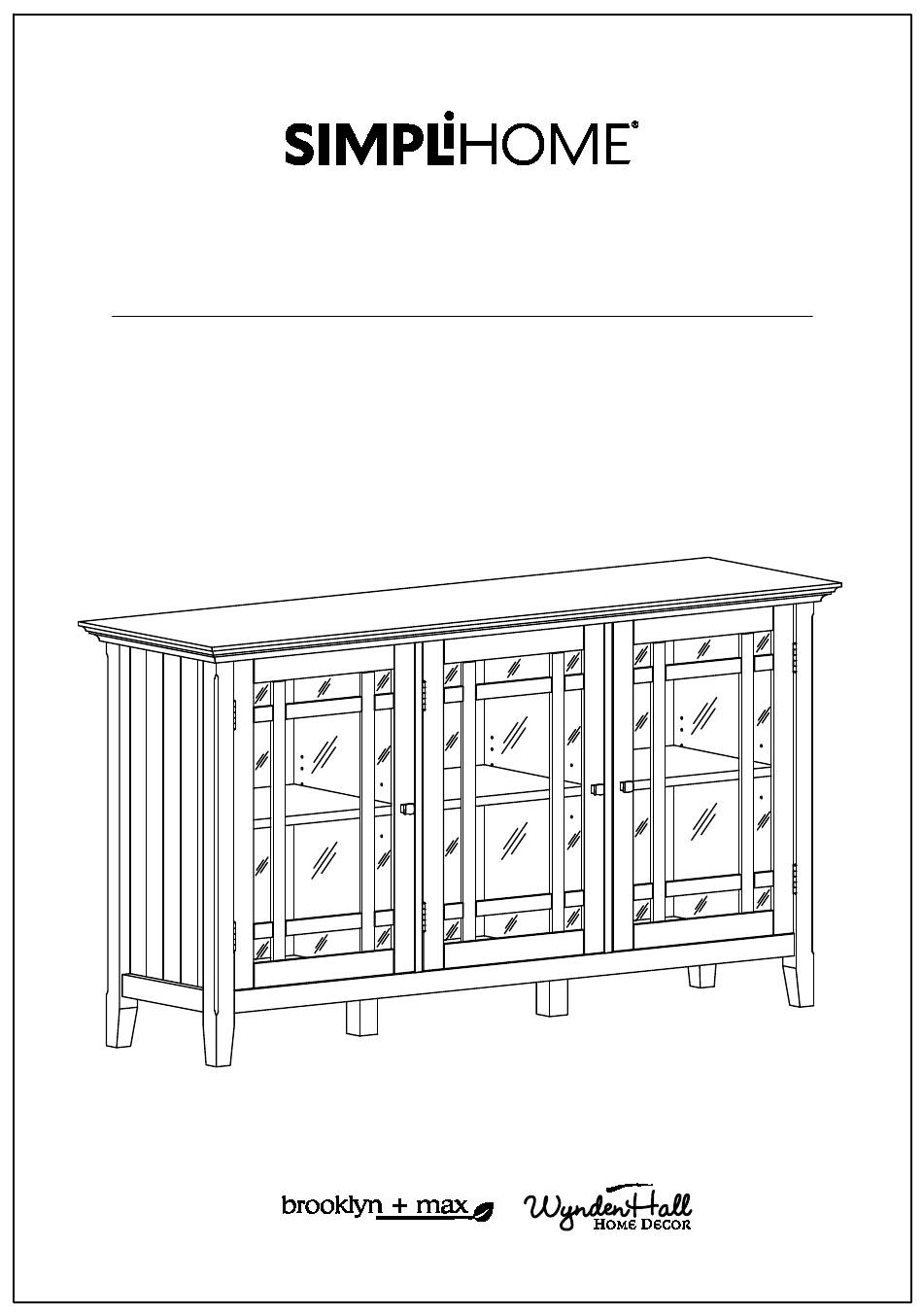

- Page 1 Bedford / Freemont / Hampton Wide Storage Cabinet Model # AXCBED39-TB...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 Pre-Assembly Information Model # AXCBED39-TB Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 LEFT DIVIDER RIGHT DIVIDER BOTTOM FRAME QTY 1 QTY 1 QTY 1 DOOR LEFT BACK PANEL SHELF QTY 3 QTY 3 QTY 1 Warning Label BOTTOM SUPPORT LEG RIGHT BACK PANEL...
- Page 8 Pre-Assembly Information Model # AXCBED39-TB Hardware Description CAM LOCK PIN HANDLE ALLEN KEY BOLT ALLEN KEY SCREW CAM LOCK M4 X 25mm M6 X 35mm M6 X 30mm QTY 6 SETS QTY 3 SETS QTY 6 QTY 12 PHILLIPS SCREW ROUND HEAD ALLEN KEY SHELF SUPPORT...
- Page 9 Components - Key Diagram Model # AXCBED39-TB...
- Page 10 Assembly Model # AXCBED39-TB Step 1 1. Attach three Cam Lock Pins 3 into pre-drilled holes on each Side BL , BR . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten.
- Page 11 Assembly Model # AXCBED39-TB Step 2 1. Insert Wood Dowels 12 into guide holes on Dividers CL , CR and Bottom Frame D . 2. Use rubber mallet to tap Dowels 12 into bottom of holes securely. 1/3 length of Dowels should be exposed.
- Page 12 Assembly Model # AXCBED39-TB Step 3 1. Align Wood Dowel with guide hole and attach Dividers CL , CR to Bottom Frame D . 2. Use six Allen Key Screws 2 to attach Bottom Frame D through guide holes. 3. Use Allen Key 5 to tighten screws. Do not over-tighten. 4.
- Page 13 Assembly Model # AXCBED39-TB Step 4 1. Align Cam Lock Pins and Wood Dowels with guide holes and attach Sides BL , BR to Bottom Frame D . 2. Insert six Cam Locks 3 into guide holes on Bottom Frame D . 3.
- Page 14 Assembly Model # AXCBED39-TB Step 5 1. Turn product stay upward before install the Top A . 2. Attach Top A to Sides BL , BR using six Allen Key Bolts 1 ( Three Bolts on each Side ). 3. Attach Top A to Dividers CL , CR using six Allen Key Screws 2 ( Three Screws on each Divider ).
- Page 15 Assembly Model # AXCBED39-TB Step 6 Note: Warning Label 1. Attach the Back Panels GL , GR , G to back frame using Phillips Screws Round Head 6 through guide holes from Back Panels. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten.
- Page 16 Assembly Model # AXCBED39-TB Step 7 First Step Last Step ( after adjust the door ) 1. Attach hinges on Doors F to Sides BL , BR and Left Divider CL using Phillips Screws 9 into pre-drill holes: - Using Phillips screwdriver to attach Screws 9 at middle hole of hinges for both top &...
- Page 17 Assembly Model # AXCBED39-TB Step 8 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Magnet Plates 8 to bottom corner of Doors F using Phillips Screws 10 into pre-drilled holes on Doors F . 2. Attach Magnets 8 using Phillips Screws 10 into pre-drilled holes on Bottom Frame D .
- Page 18 Assembly Model # AXCBED39-TB Step 9 shelf support shelf level 1 anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 7 for each Cabinet Shelf E in desired location. 2. Two Shelf Supports 7 may be used on back top of each Cabinet Shelf E as a tipping restraint.
- Page 19 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 10 NOTE: The screwdriver is not included in the hardware pack.
- Page 20 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
