SIMPLIHOME WyndenHall Brooklyn+Max AXCBAN-10 Manual

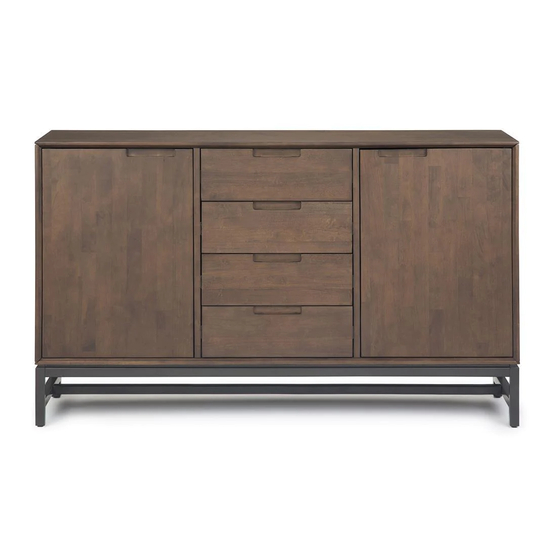

Banting / devlin / argyle mid century sideboard with centre drawers
Hide thumbs

Advertisement

Quick Links

Download this manual
Banting / Devlin / Argyle
Mid Century Sideboard with Centre Drawers
Model # AXCBAN-10
TM
TM
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the WyndenHall Brooklyn+Max AXCBAN-10 and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME WyndenHall Brooklyn+Max AXCBAN-10

Summary of Contents for SIMPLIHOME WyndenHall Brooklyn+Max AXCBAN-10

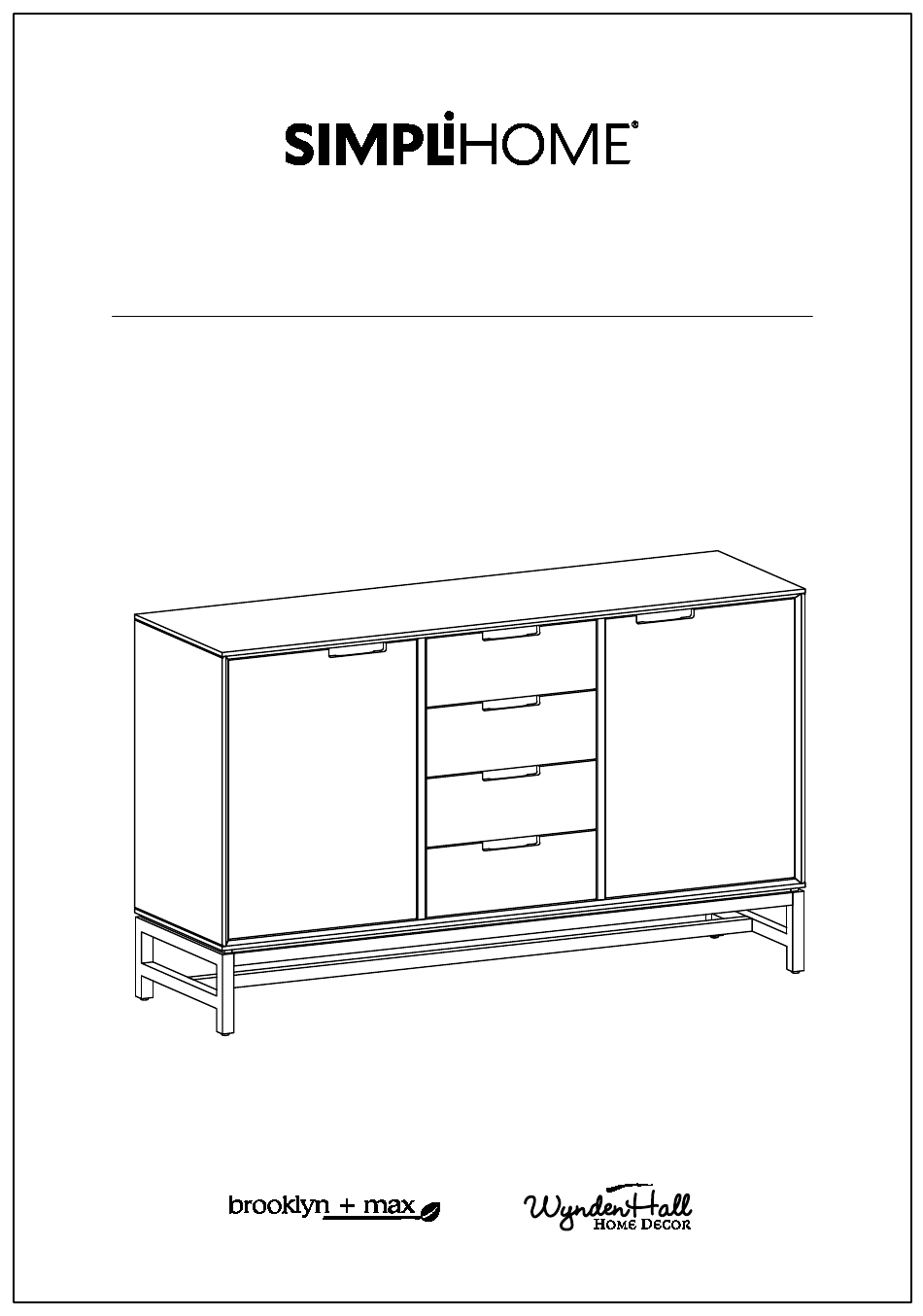

  • Page 1 Banting / Devlin / Argyle Mid Century Sideboard with Centre Drawers Model # AXCBAN-10...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.

  • Page 5: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Damage to furniture can come from temperature changes in relative humidity (RH) in our homes. Humid air oxidizes metal which results in rusting, corrosion, tarnishing and roughness. Wood absorbs water as relative humidity rises and falls, and in doing so it swells and shrinks.
  • Page 7 Pre-Assembly Information Model # AXCBAN-10 Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 LEFT DIVIDER RIGHT DIVIDER BOTTOM SHELF QTY 1 QTY 1 QTY 1 Warning Label TOP BACK PANEL BOTTOM BACK PANEL LEFT DOOR QTY 1 QTY 1 QTY 1 RIGHT DOOR...

  • Page 8: Drawer Bottom

    Pre-Assembly Information Model # AXCBAN-10 Part Description LEFT DRAWER SIDE RIGHT DRAWER SIDE DRAWER BACK QTY 4 QTY 4 QTY 4 LEG UPPER CONNECTOR DRAWER BOTTOM LEG (L&R Same) QTY 2 QTY 4 QTY 2 LEG LOWER CONNECTOR QTY 1...
  • Page 9 Pre-Assembly Information Model # AXCBAN-10 Hardware Description WOOD DOWEL ALLEN KEY SCREW CAM LOCK PIN M6 X 30mm Ø8 X 30mm ALLEN KEY CAM LOCK QTY 28 QTY 16 QTY 16 SETS QTY 1 LOCK WASHER WASHER ALLEN KEY BOLT ALLEN KEY BOLT Ø10 / Ø6.5 x 1.5 mm Ø16 / Ø6.5 x 1.5 mm...
  • Page 10 Components - Key Diagram Model # AXCBAN-10...
  • Page 11 Assembly Model # AXCBAN-10 Step 1 1. Attach four Cam Lock Pins 3 into pre-drilled holes at back of Drawer Front I . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten. Step 2...
  • Page 12 Assembly Model # AXCBAN-10 Step 3 Step 4 1. Align Drawer Back K with Drawer Bottom L and press firmly into slot . 2. Attach Drawer Back using two Allen Key Screws 4 through drilled holes on each Drawer Side JL , JR . 3.
  • Page 13 Assembly Model # AXCBAN-10 Step 5 1. Insert four Dowels 1 into guide holes on each Divider CL , CR . 2. Use rubber mallet to tap Dowels 1 into bottom of holes securely. 1/2 length of Dowels should be exposed. Step 6 1.
  • Page 14 Assembly Model # AXCBAN-10 Step 7 1. Insert four Dowels 1 into guide holes on each Sides BL , BR . 2. Use rubber mallet to tap Dowels 1 into bottom of holes securely. 1/2 length of Dowels should be exposed. Step 8 1.
  • Page 15 Assembly Model # AXCBAN-10 Step 9 1. Align Wood Dowels with guide holes on Top A and attach Top A to parts BL , BR , CL , CR .
  • Page 16 Assembly Model # AXCBAN-10 Step 10 1. Align Parts N , O to Leg M . 2. Use one Bolt 6 , one Lock Washer 7 and one Washer 8 to secure each part N , O with M . 3.
  • Page 17 Assembly Model # AXCBAN-10 Step 11 1. Repeat Step 10 for second Leg M . 2. Use Allen Key 2 to tighten Bolts.
  • Page 18 Assembly Model # AXCBAN-10 Step 12 1. Align iron dowels with guide holes on wooden frame and attach the assembled metal frame to bottom wooden frame . 2. Use four Bolts 6 , four Lock Washers 7 and four Washers 8 to secure metal frame and wooden frame .
  • Page 19 Assembly Model # AXCBAN-10 Step 13...
  • Page 20 Assembly Model # AXCBAN-10 Step 14 Note: Warning Label 1. Attach the Back Panel E to back frame using Phillips Screws Round Head 9 through guide holes. 2. Attach the Back Panels E , F to back frame using Phillips Screws Round Head 9 through guide holes.
  • Page 21 Assembly Model # AXCBAN-10 Step 15 1. Attach Adjustable Hinges 13 to Doors GL , GR using Phillips Screws 14 into pre-drilled holes on Doors GL , GR . Step 16 1. Attach Adjustable Hinges 13 on Doors GL , GR to Sides BL , BR using Phillips Screws 14 into pre-drilled holes on Sides BL , BR .

  • Page 22: Important Note

    Assembly Model # AXCBAN-10 IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1. Side adjustment 4 mm To move the door towards the side panel, loosen screw I and tighten screw II .
  • Page 23 Assembly Model # AXCBAN-10 Step 17 2. Attach Magnets 11 using Phillips Screws 12 into pre-drilled holes on Divider CL , CR . 3. Use Phillips screwdriver to snugly tighten screw.
  • Page 24 Assembly Model # AXCBAN-10 Step 18 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Use four Shelf Supports 10 for each Shelf H in desired location . 2. Two Shelf Supports 10 may be used on back top of each Shelf H as a tipping restraint.
  • Page 25 Assembly Model # AXCBAN-10 Step 19 1. Insert assembled drawers into glides on assembled Sideboard. Note: Levelers on bottom of legs can be adjusted if floor is uneven.
  • Page 26 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 20 NOTE: The screwdriver is not included in the hardware pack.
  • Page 27 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
