Home Decorators Collection Easton Owner's Manual

Home Decorators Collection Easton Owner's Manual

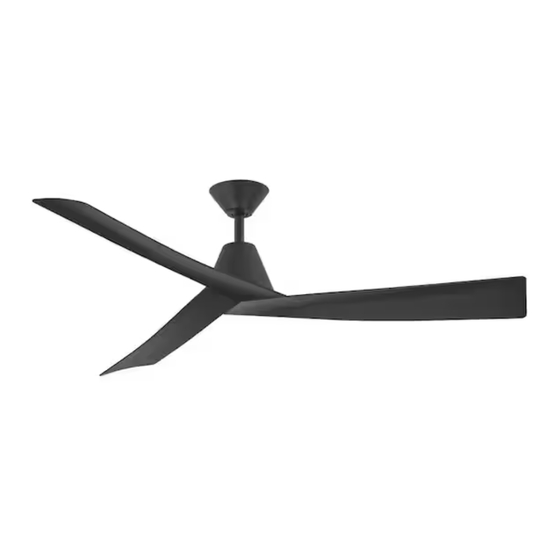

52 in ceiling fan

Advertisement

Quick Links

N381-52-CB
120 V~ 60 Hz 33 W
Read and follow all the instructions
before using this product.
Easton
52
Ceiling Fan
in
Owner's Manual
Easton
Ventilador de Techo de 1,32 m
Manual del Propietario
170 843

Advertisement

loading
Need help?

Need help?

Do you have a question about the Easton and is the answer not in the manual?

Questions and answers

Summary of Contents for Home Decorators Collection Easton

  • Page 1 170 843 N381-52-CB 120 V~ 60 Hz 33 W Read and follow all the instructions before using this product. Easton Ceiling Fan Owner’s Manual Easton Ventilador de Techo de 1,32 m Manual del Propietario...
  • Page 2 We’re certain that your Home Decorators Collection fan will The Home Decorators Collection provide you with many years of Fan Company offers a wide variety comfort, energy savings and of ceiling fans. We offer combinations satisfaction.
  • Page 3 VENTILADOR DE TECHO / CEILING FAN Marca / Brand: Home Decorators Collection Modelo / Model: 170 843 (N381-52-CB) 120 V ~ 60 Hz 33 W Consumo de energía por unidad de tiempo en operación (Energy Consumption): 24.4 Wh Importador / Importer: SERVICIOS HOME DEPOT, S. DE R.L. DE C.V.
  • Page 4: Table Of Contents

    52” EASTON Ceiling Fan by HDC Thank you for purchasing our ceiling fan. This product has been manufactured with the highest standards of safety and quality. Date Purchased Store Purchased Table of Contents 170 843 (N381-52-CB) Model No. Safety Rules ....1 Serial No.
  • Page 5: Safety Rules

    Safety Rules - Read and Save These Instructions To reduce the risk of electric shock, insure electricity has been turned All set screws must be checked and retightened where necessary before off at the circuit breaker or fuse box before beginning. installation.
  • Page 6: Unpacking Your Fan

    Unpacking Your Fan Unpack your fan and check the contents. You should have the following items: Set of blades (3) Blade Attachment Hardware Blade Attachment Hardware (additional) Blade support plates with screws and (7 Screws, 7 Lock Washers) (1 screw with lock washer) Canopy assembly lock washers (3) Ball/downrod assembly...
  • Page 7: Installing Your Fan

    Installing Your Fan Provide strong support Tools Required Figures 1~3 are examples of different ways to mount the outlet box. Phillips screwdriver, straight slot screwdriver, step ladder and wire cutters. Recessed Ceiling outlet box mounting plate Mounting Options Figure 3 Outlet box NOTE: You may need a longer downrod to If there isn't an existing NOM listed mounting...
  • Page 8 Attaching the Fan Blades Hanging the Fan Carefully feed the motor wires up through the downrod. Thread the downrod into the collar. Align the holes and replace the clevis pin and Attach the blade to the motor. Align the holes in REMEMBER to turn off the power.
  • Page 9 Installing Fan to the Extension cord Electrical Box Cross pin Ground lead Ground lead Cross pin Ground lead WARNING Set screw Clevis pin Clevis pin TO REDUCE THE RISK OF FIRE, ELECTRIC Hanger ball Hanger ball Set screw Downrod Downrod SHOCK OR OTHER PERSONAL INJURY.
  • Page 10 Making the Electrical * There are four green grounding leads: one from NOM listed the mounting bracket and one from the hanger outlet box Connections ball/downrod assembly and two from the receiver if installed. Mounting 4. Turn the wire nut connections upward, If you feel you do not have enough electrical wiring screws (Supplied 120V...
  • Page 11 Finishing the Fan Ground conductor Installation Black White Outlet Ceiling WARNING mounting MAKE SURE THE TAB O N T H E MOUNTING bracket Outlet Box BRACKET PROPERLY SITS IN THE GROOVE IN Mounting THE HANGER BALL BEFORE ATTACHING THE screw Mounting CANOPY TO THE BRACKET BY TURNING THE screw...
  • Page 12 Blade Balancing If deviation is greater than 1/8” , please call Customer Service (800-004-6633) to order complimentary replacements of your brackets. All blades are grouped by weight during assembly. The following procedure should correct most fan wobble. Check after each step. Verify that all blades and blade bracket screws Touching ceiling are secure (most fan wobble problems are...
  • Page 13: Operation

    Operation Learning Process Within 60 seconds of turning AC power on, press and release the " Pairing" button located NOTE in the remote's battery compartment to enter Preparing the Transmitter the learning function. Once the fan has THE DIP SWITCH IN THE BATTERY COMPARTMENT detected the remote controls's frequency, the HAS BEEN SET ON “0”...
  • Page 14 Operation (continued) To clear all other remotes from your fan’ s memory, use the steps below: Ensure AC power to the fan is OFF to begin the learning process. Fan on/off Slide the dip switch in the battery compartment Increases fan speed LED bar to the "0"...
  • Page 15 Operation (continued) Speed functions + button, increases the fan speed Pressing the - button while in Comfort Breeze Operating Your Fan and mode will automatically cancel the Comfort Pressing and releasing the + button one time will Remote Control Breeze mode and resume normal fan increase the speed of the fan.
  • Page 16 Operation (continued) Operating Your Fan and Setting 1 Setting 2 Setting 3 Disable Comfort Breeze Remote Control Comfort Breeze NOTE IF YOU ARE USING COMFORT BREEZE MODE, PRESSING THE BUTTON OR THE F A N S P E E D B U T T O N S W I L L C A N C E L Figure 18 COMFORT BREEZE MODE AND RESUME...
  • Page 17 Operation (continued) Speed settings for warm or cool weather depend on factors such as the room size, ceiling height, numbers of fans, etc. Operating Your Fan and Remote Control Warm weather - (Counter-Clockwise direction) A downward air flow creates a cooling effect. (Fig.20) Fan reverse button (Must be pushed when the This allows you to set your air conditioner on a higher fan is in operation)
  • Page 18: Care Of Your Fan

    Care of Your Fan Troubleshooting PROBLEM SOLUTION Here are some suggestions to help you maintain your fan. Check the main and branch circuit fuses or breakers. The fan will not start. Because of the fan's natural movement, some Check the line wire connections to the fan and switch wire connections in connections may become loose.
  • Page 19: Troubleshooting

    Troubleshooting (continued) PROBLEM SOLUTION The fan wobbles. Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by loose parts). Once the fan is properly installed, run the ceiling fan for 10 minutes to let the fan self-adjust. If wobble occurs after running the fan for 10 minutes, verify blade level using the following process: - Select a point on the ceiling above the tip of one of the blades, then...
  • Page 20: Specifications

    Specifications FAN SIZE SPEED VOLTS AMPS WATTS N.W. G.W. C.M. LOW (1) 0.05 2.73 5.24 kg 8.05 kg 52” MED. (5) 0.06 0.18 (11.53 lbs) (17.70 lbs) HIGH (9) 32.55 These are approximate measures. They do not include Amps and Wattage used by the light kit. Importer: SERVICIOS HOME DEPOT, S.
