4 Cabling
1.
NETWORK CONNECTIONS – If you are using a PoE Switch, connect the camera using
an Ethernet cable for both data and power.
2.
NETWORK CONNECTIONS – If you are using a non-PoE switch, connect the camera to
the switch using an Ethernet cable for data transmission and use a power adapter to
power the camera.

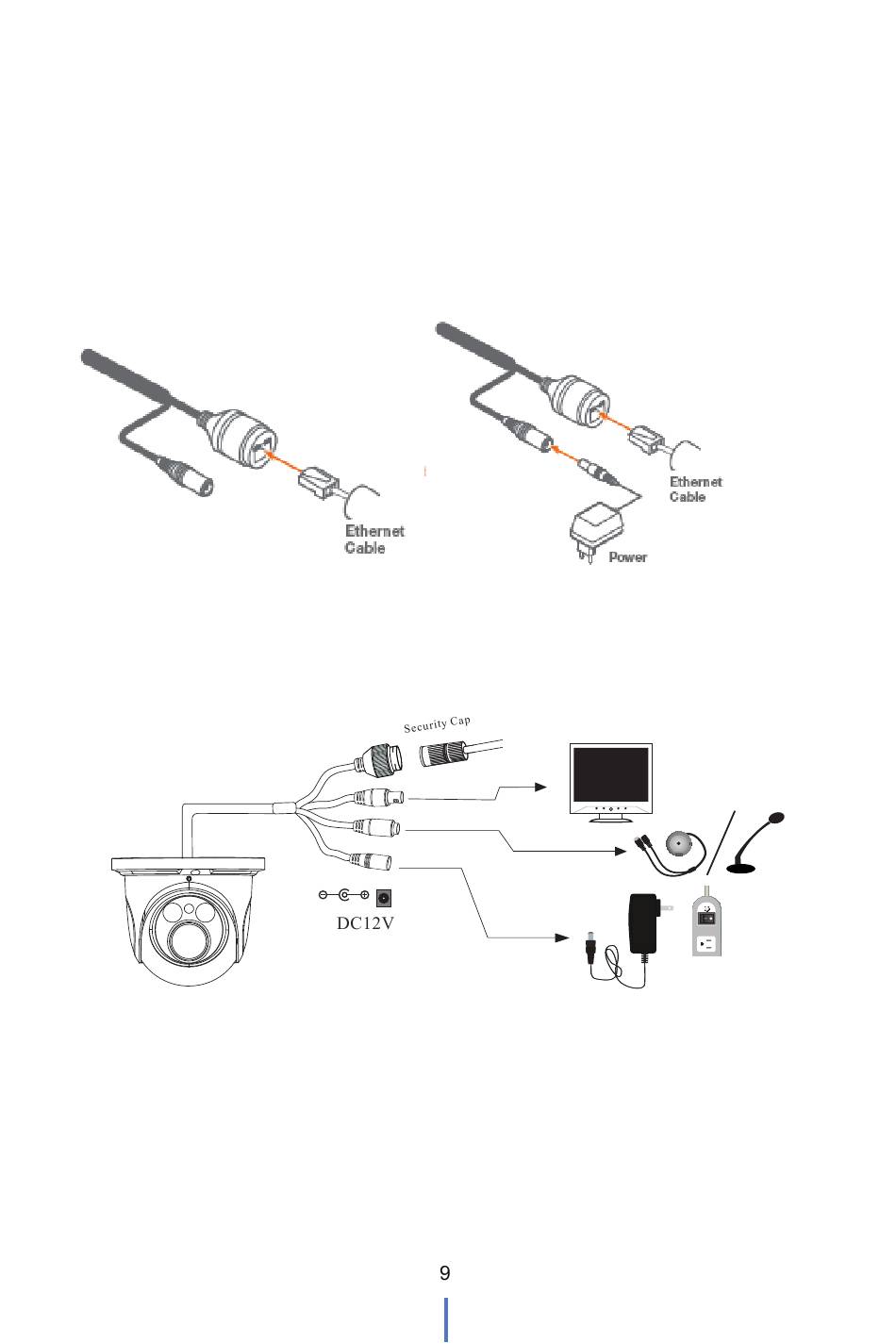

Use the diagram below to connect all external devices to the camera:
