Technical Manual
Twilight-/Temperature Sensor KNX [SCN-DTSEN1.01]
2.4 Structure & Handling

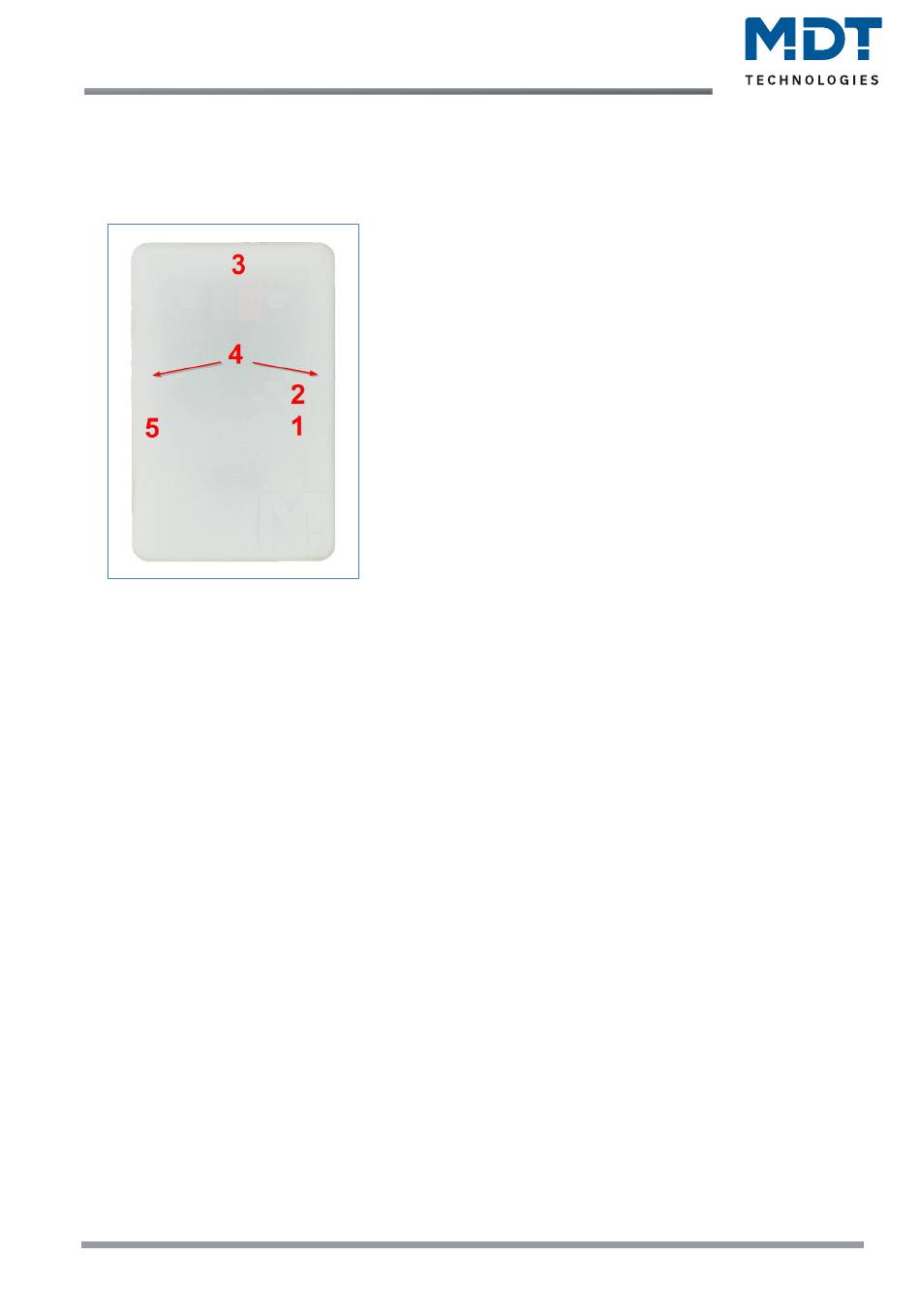

The following picture shows the structure of the device (circuit board visible after opening the
cover):
Figure 2: Structure & Handling
1 = Programming button
3 = Bus connection terminal
5 = Temperature sensor

2.5 Commissioning

After wiring the unit, the physical address is assigned, and the application is programmed:
(1) Connect the programming interface with the bus, e.g. with MDT USB Interface.
(2) Switch-on bus voltage.
(3) Press the programming button (red programming LED lights up).
(4) Loading the physical address from the ETS software via the interface (red LED goes out as
soon as this has been successfully completed).
(5) Loading the application, with desired parameterization.
(6) If the device is enabled, you can test the requested functions (also possible by using the
ETS-Software).
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1 • Germany
5
Phone: +49-2263-880 • knx@mdt.de • www.mdt.de
2 = Programming LED
4 = Brightness sensors
