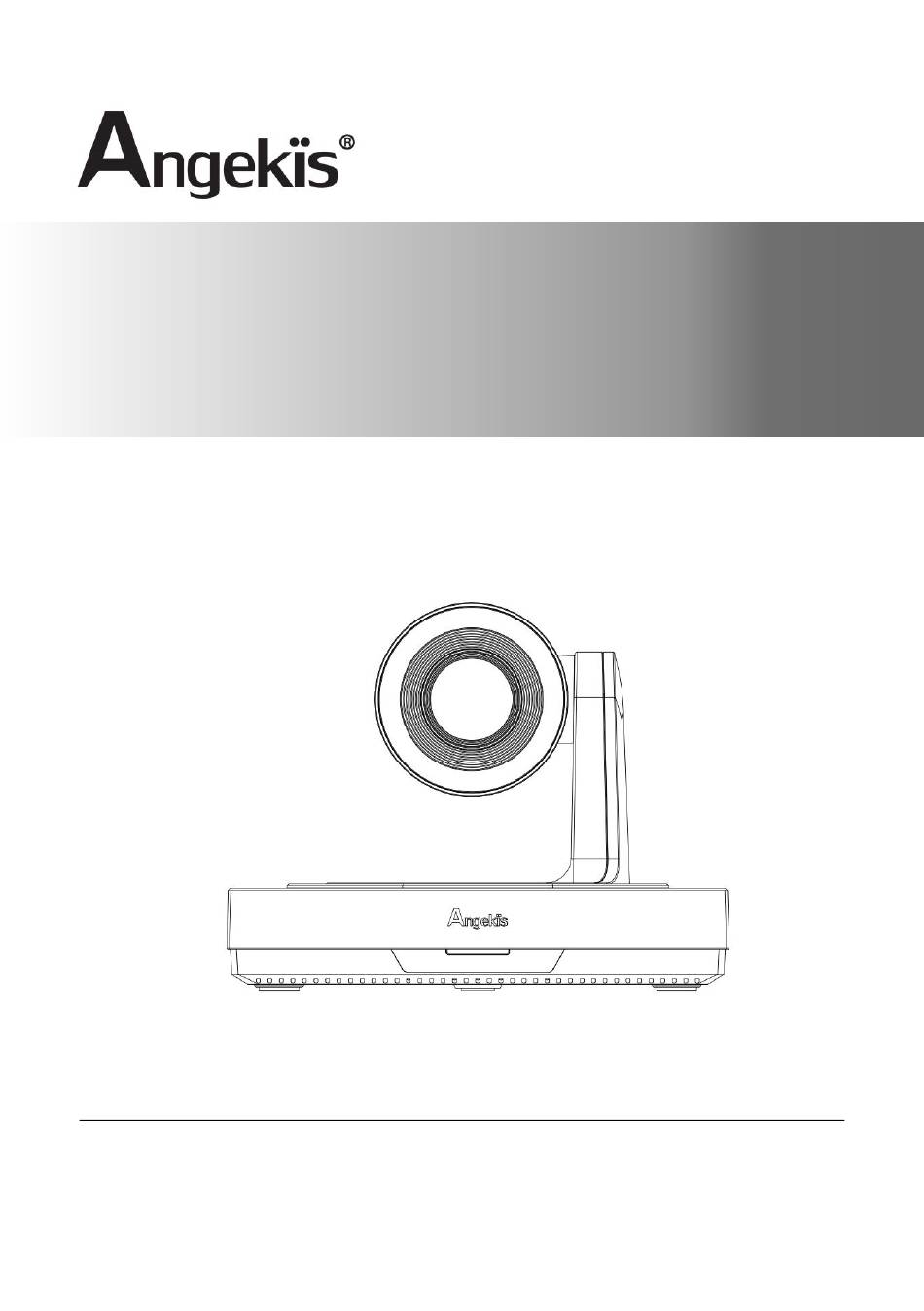

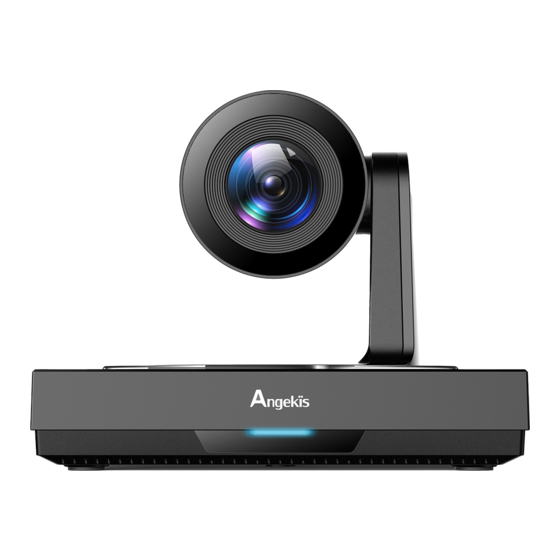

- Page 1 HD PTZ Camera Blade VS+ User Manual V1.0 EN Please refer this document before using...
-
Page 2: Table Of Contents
CONTENT ......................1 SAFETY GUIDES ....................2 ACCESSORY......................2 PRODUCT HIGHLIGHTS ...................4 PRODUCT SPEC ....................5 CAMERA INTERFACE ..................6 CAMERA DIMENSION ..................7 IR REMOTE CONTROLLER ................8 VISCA IN(RS232 PORT) ................. 10 VISCA PROTOCOL ................... 11 PELCO-D PROTOCOL ..................18 PELCO-P PROTOCOL ..................19 OSD MENU ...................... -
Page 3: Safety Guides
Blade VS+ Safety Guides ● Before operation, please fully read and follow all instructions in the manual. For your safety, always keep this manual with the camera. ● The camera power voltage is 12V DC, rated currency is 2A. We suggest you use it with the original power supply adapter supplied by the factory. - Page 4 Blade VS+ QUICK START Dial Switch Setting (at the bottom of the camera) Dial Switch (ARM) SW-1 SW-2 Instruction Upgrading mode Debugging mode Undefined Working mode Dial Switch Dial Switch SW-3 SW-4 Instruction SW-5 SW-6 Instruction Reserved Reserved Reserved Reserved Reserved Reserved Reserved...
-
Page 5: Product Highlights
Blade VS+ Product Highlights ★With the most advanced HD DSP, 1/2.8-inch 2.4 million image sensor. ★High-quality 10x 62.5-degree wide-angle optical lens, to ensure the smooth and transparent HD images. ★ Independent intellectual property rights of the focus algorithm, fast and accurate focus performance, to ensure that the image remains clear in the process of zooming, focusing process is fast and smooth. -
Page 6: Product Spec
Blade VS+ PRODUCT SPEC U2-10FHD3 Sensor 1/2.8inch high quality, 2.4 MP CMOS Sensor 1920*1080P60/59.94/50/30/29.97/25/24 HDMI 1920*1080I60/59.94/50 1280*720P60/59.94/50/30/29.97/25 Video Format MJPG: 1920*1080P60; 1280*960P60; 1280*720P60; 1024*768P60; 800*600P60; 640*480P30; 320*240P60 Type-C YUY2：640*480P30；320*240P30 Video Interface HDMI, USB Type-C Focal Length 4.7mm~47mm Aperture F1.6~3.0 View Angel 62.5°(Wide)~6.43°(Tele) Lens 10x optical zoom + 4x digital zoom... -
Page 7: Camera Interface
Blade VS+ 2D Noise Supported Reduction 3D Noise Supported Reduction Anti-flicker OFF, 50Hz, 60Hz Pan Tilt Flip Supported Mirroring Supported Input Voltage DC 12V / USB 5V Dimension 148mm×132mm×162mm Net Weight 0.9kg(2LBS) Working -10℃~50℃ Temperature Working ≤80% Humidity CAMERA INTERFACE 1.Camera Lens 5.Dial Switch 9.DC 12V plug... -
Page 8: Camera Dimension
Blade VS+ CAMERA DIMENSION（MM） — 7 —... -
Page 9: Ir Remote Controller
Blade VS+ IR REMOTE CONTROLLER Power Key Under Normal working mode ， short press Power key to let the camera enter standby mode；Press it again ， the camera will do self-configuration and then go back to HOME position；It will go to preset position if the power on mode has been set. - Page 10 Blade VS+ Menu Key OK: to confirm the menu selection Menu：enter/exit menu Back：Back to previous menu F+/F-: Set focus by manual, only valid under manual focus mode. T/W: Set the lens zoom rate Navigating Key: Up/Down/Left/Right Under normal working mode, use navigate key to set the pan tilt, and select values when enter OSD.
-
Page 11: Visca In(Rs232 Port)
Blade VS+ VISCA IN （RS232 PORT） Functions IR OUT VISCA IN and DB9 Connection VISCA IN and Mini DIN Camera VISCA IN Mini DIN CameraVISCA IN Windows DB- A(+) A(+) IR OUT IR OUT B(-) B(-) SERIAL PORT CONFIGURATION： Parameter Value Baud rate 2400/4800/9600/115200... -
Page 12: Visca Protocol
Blade VS+ VISCA PROTOCOL Part1 Camera Return Command Ack/Completion Message command Note z0 41 FF Returned when the command is accepted. Completion z0 51 FF Returned when the command has been executed. Error Messages command Note Returned when the command format is different or when a Syntax Error z0 60 02 FF command with illegal command parameters is accepted. - Page 13 Blade VS+ Command type function command Near (Variable) 8x 01 04 08 3p FF p=0 (Low) to 7 (High) Direct 8x 01 04 48 0p 0q 0r 0s FF pqrs: Focus Position Auto Focus 8x 01 04 38 02 FF Manual Focus 8x 01 04 38 03 FF One Push AF...
- Page 14 Blade VS+ Command type function command 8x 01 04 3D 02 FF Exposure Compensation 8x 01 04 3D 03 FF ON/OFF CAM_WDR pq: ExpComp Position Direct 8x 01 04 D3 pq FF (0~0x6) CAM_Back 8x 01 04 33 02 FF BackLight On Light(BLC) 8x 01 04 33 03 FF...
- Page 15 Blade VS+ Command type function command pp: Video format 1080P60 0x00 1080P50 0x01 1080I60 0x02 1080I50 0x03 1080P30 0x04 1080P25 0x05 720P60 0x06 720P50 0x07 Video System 8x 01 06 35 00 pp FF 720P30 0x08 Set(Factory) 720P25 0x09 1080P5994 0x0E 1080I5994 0x0F...
- Page 16 Blade VS+ Command type function command Up right 8x 01 06 01 VV WW 02 01 FF Down Left 8x 01 06 01 VV WW 01 02 FF Down Right 8x 01 06 01 VV WW 02 02 FF Stop 8x 01 06 01 VV WW 03 03 FF Absolute 8x 01 06 02 VV WW 0Y 0Y...
- Page 17 Blade VS+ Command type command return note y0 50 03 FF Manual y0 50 0A FF Shutter priority y0 50 0B FF Iris priority y0 50 0D FF Bright p: 0: OFF CAM_Flicker Mode 8x 09 04 AA FF y0 50 0p FF 1: 50HZ 2: 60HZ CAM_Shutter Pos Inq...
- Page 18 Blade VS+ VISCA PAN TILT ABSOLUTE POSITION VALUE PAN ANGLE VISCA value TILT ANGLE VISCA value -170 0xF670 0xFE50 -135 0xF868 0x0000 0xFAF0 0x01B0 0xFD78 0x0360 0x0000 0x510 0x0288 0x0510 0x0798 0x0990 VISCA PAN TILT SPEED VALUE Pan(Degree/Second) Tilt(Degree/Second) — 17 —...
-
Page 19: Pelco-D Protocol
Blade VS+ PELCO-D PROTOCOL Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF Address 0x00 0x02... -
Page 20: Pelco-P Protocol
Blade VS+ PELCO-P PROTOCOL Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte Byte8 0Xa0 Address 0x00 0x08 Pan Speed Tilt Speed 0Xaf Down 0Xa0 Address 0x00 0x10 Pan Speed Tilt Speed 0Xaf Left 0Xa0 Address 0x00 0x04 Pan Speed Tilt Speed 0Xaf Right 0Xa0... -
Page 21: Osd Menu
Blade VS+ OSD MENU 1. Under working mode, press the MENU key on the IR remote controller, to enter the OSD menu as bellow: 2. After entering the main menu, use the navigate UP/DOWN key to select the main menu. Once selected, the main menu will change to blue background, and the right side will show sub-menu options. - Page 22 Blade VS+ Shutter speed: 1/30~1/10000, only valid SHUTTER Default: AUTO under MANUAL and SHUTTER mode Iris setting: CLOSE~F1.8, only valid under IRIS Default: AUTO MANUAL and IRIS mode Gain setting: 0dB~30dB, only valid under GAIN Default: AUTO MANUAL mode EXPOSURE Bright setting: 0~27, only valid under Default: AUTO BRIGHT...
- Page 23 Blade VS+ SPEED BY ZOOM Optional: OFF, ON Default: ON FLIP Flip horizontal Default: OFF HORIZONTAL FLIP VERTICAL Flip vertical Default: OFF PT SPEED Set Pan Tilt speed: 5~24 Default: 18 ZOOM SPEED Set Zoom speed: 1~7 Default: 5 PTZ SETTINGS PRESET FREEZE Optional：OFF, ON Default: OFF...
-
Page 24: Uvc Control
Blade VS+ UVC CONTROL 1. Only run the client software after the camera has completed self- configuration (the IR indicator in blue color and will not flash); otherwise may cause black video issue. 2. Make sure the camera is recognized by the PC Device Manager. 3.
