Summary of Contents for Angekis BLADE 4K

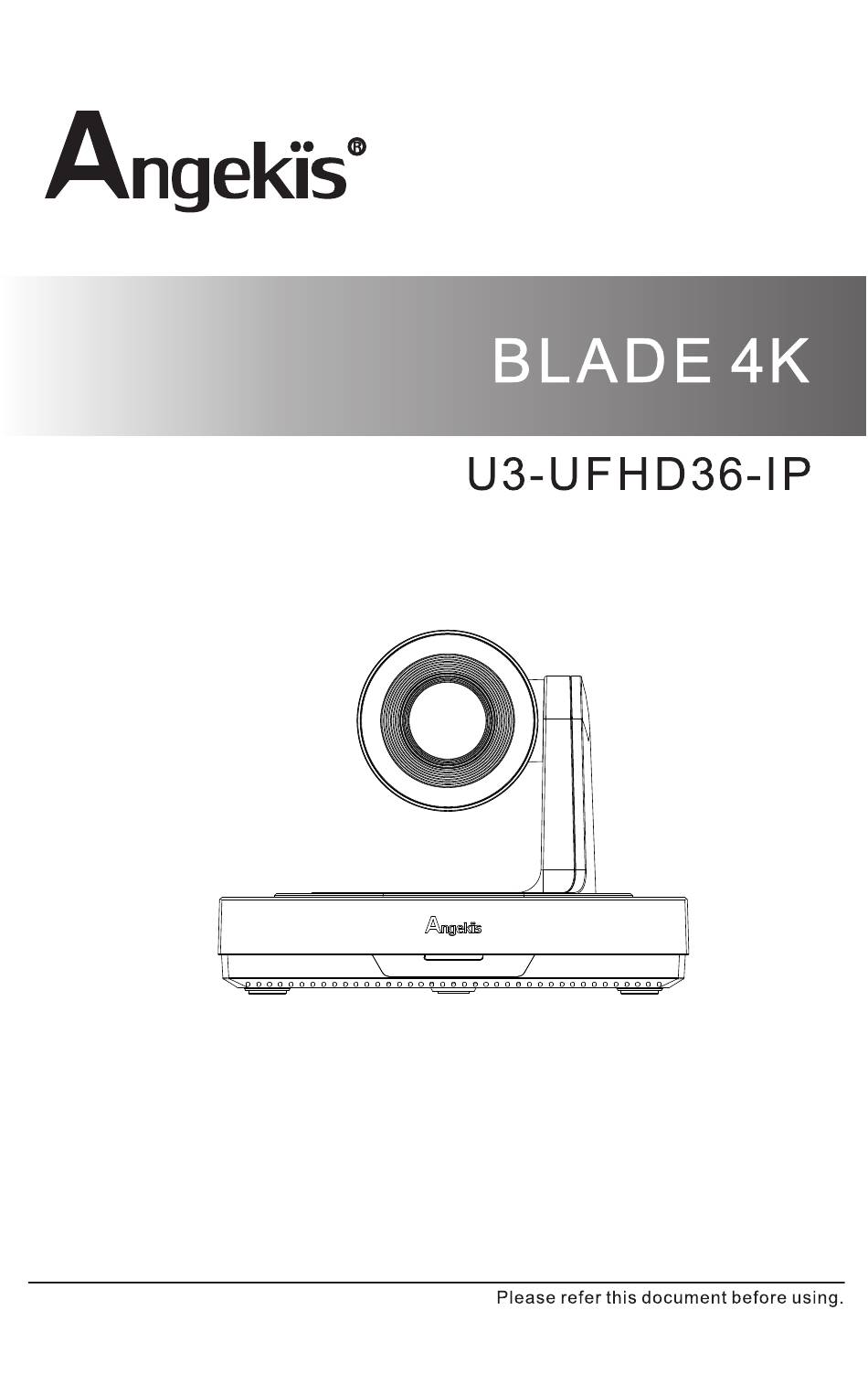

- Page 1 User Manual v2.0 ENGLISH...
- Page 6 1/2.8 inch 8.42MP CMOS sensor Rs232, RS485(Serial Visca、Pelco-P/D), USB3.0(UVC1.5) , USB2.0(UVC1.1)
-
Page 8: Ir Remote Controller
IR REMOTE CONTROLLER Power Key Under Normal working mode ， short press Power key to let the camera enter standby mode；Press it again ， the camera will do self-configuration and then go back to HOME position；It will go to preset position if the power on mode has been set. - Page 9 Menu Key OK: to confirm the menu selection Menu：enter/exit menu Back：Back to previous menu F+/F-: Set focus by manual, only valid under manual focus mode. T/W: Set the lens zoom rate Navigating Key: Up/Down/Left/Right Under normal working mode, use navigate key to set the pan tilt, and select values when enter OSD.
