Remove Monitor Stand for Mounting

To prepare the monitor for alternate mounting purposes:
1. Disconnect all cables.
2. Place hands on each side of the monitor and lift up to the highest position.
3. Place monitor face down on a nonabrasive surface. (Place the screen on a 33
mm platform so that the stand is parallel with the surface.) (Figure S.1)
33mm
4. Remove the two top screws connecting the monitor to the stand (Figure
S.2). Turn the stand to 180˚ counterclockwise (you will hear two clicks).
Remove the screws from the bottom (Figure S.3) and lift off the stand. The
monitor is now ready for mounting in an alternate manner.
5. Reverse this process to reattach stand: tighten the two bottom screws, turn
stand 180˚ counterclockwise (you will hear two clicks), and tighten two top
screws.
NOTE: Use only VESA-compatible alternative mounting method. (100mm pitch)
NOTE: Handle with care when removing monitor stand.
2
1
Caution: Use the original screws (4 pcs) when mounting to avoid damage to the monitor and stand. To
fulfill the safety requirements the monitor must be mounted to an arm which guaranties the
necessary stability under consideration of the weight of the monitor. The LCD monitor should
only be used with an approved arm (e.g. GS mark).
–continued

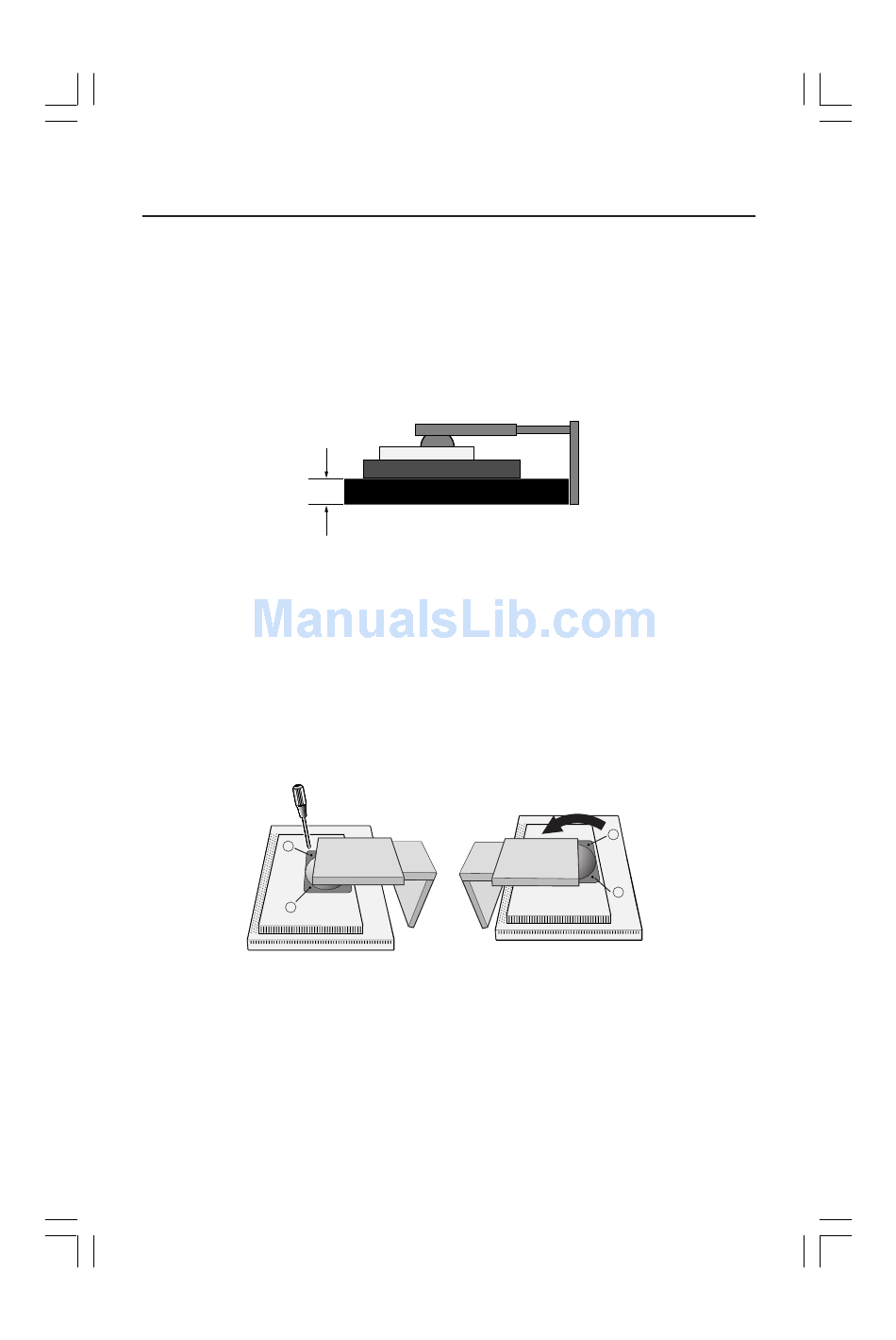

Figure S.1
Figure S.2 and Figure S.3
