Quick Star t Guide
28/52-Port L3 Stackable Gigabit Ethernet Switch
ECS4620-28T / ECS4620-28P / ECS4620-28F
ECS4620-52T / ECS4620-52P
ECS4620-28T
ECS4620-28P
ECS4620-28F
ECS4620-52T
ECS4620-52P
www.edge-core.com

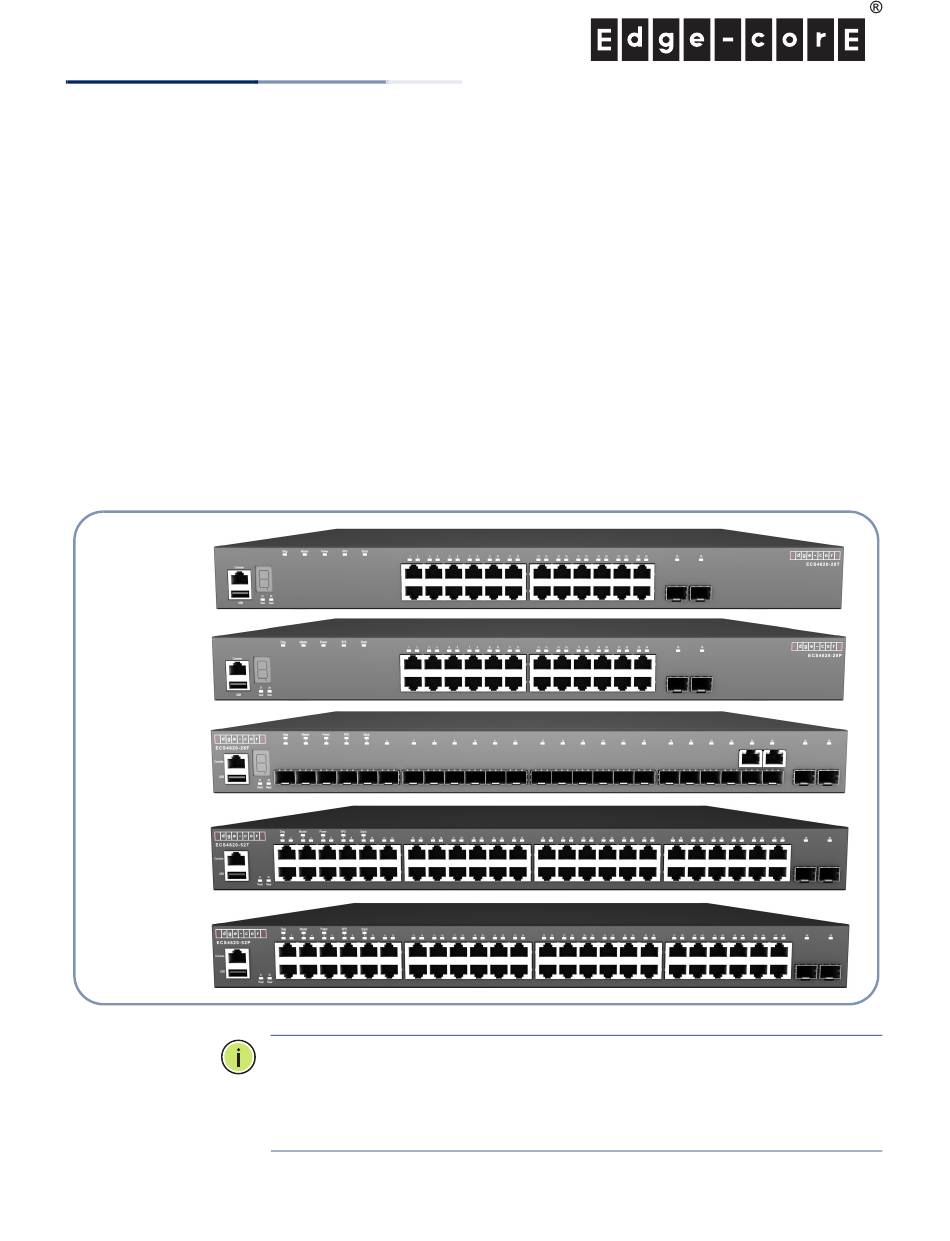

The ECS4620-28T, ECS4620-28P, ECS4620-52T, and ECS4620-52P are stackable
Layer 3 switches that provide 24/48 10/100/1000BASE-T RJ-45 ports, and two 10
Gigabit (10G) Small Form Factor Pluggable Plus (SFP+) slots that support 1G and

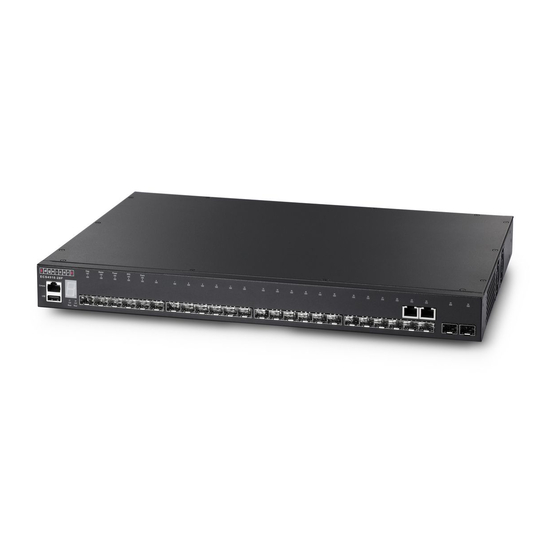

10G transceivers. The ECS4620-28F is a Layer 3 switch that provides 22 SFP 1G
transceiver slots, two combination Gigabit RJ-45/SFP ports, and two 10G SFP+ slots.
The ECS4620-28P and ECS4620-52P also provide Power-over-Ethernet Plus (PoE+)
capability on the RJ-45 ports.
All switches also provide one rear-panel slot for a dual-port 10G hot-swappable
expansion module.
Note:
For detailed switch installation information, refer to the Installation Guide,
which is on the Documentation CD included with the switch.
Note:
For Safety and Regulatory information, refer to the Safety and Regulatory
Information document included with the switch.
– 1 –
E072014-CS-R03
150200000789A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Edge-Core ECS4620-28F
Summary of Contents for Edge-Core ECS4620-28F
- Page 1 Layer 3 switches that provide 24/48 10/100/1000BASE-T RJ-45 ports, and two 10 Gigabit (10G) Small Form Factor Pluggable Plus (SFP+) slots that support 1G and 10G transceivers. The ECS4620-28F is a Layer 3 switch that provides 22 SFP 1G transceiver slots, two combination Gigabit RJ-45/SFP ports, and two 10G SFP+ slots.
- Page 2 1. Unpack the Switch Unpack the switch and check the package contents. ◆ L3 Stackable Gigabit Ethernet Switch ECS4620-28T, ECS4620-28P, ECS4620-28F, ECS4620-52T, or ECS4620-52P ◆ Rack Mounting Kit — includes two brackets and eight screws ◆ Four adhesive foot pads ◆...
- Page 3 ECS4620-28T: 100 to 240 V, 50-60 Hz, 1.5 A ◆ ECS4620-28P: 100 to 240 V, 50-60 Hz, 10 A ◆ ECS4620-28F: 100 to 240 V, 50-60 Hz, 2 A ◆ ECS4620-52T: 100-240 VAC, 50-60 Hz, 2 A ◆ ECS4620-52P: 50-60 Hz; 100-127 VAC, 12 A; 200-240 VAC, 6 A...
- Page 4 Quick Start Guide 5. Verify Switch Verify basic switch operation by checking the system LEDs. Operation When operating normally, the Diag and Power LEDs should both be on green. System Status LEDs. 6. Make Initial At this point you may need to make a few basic switch configuration changes Configuration before connecting to the network.
- Page 5 Quick Start Guide 7. Connect Network Install SFP/SFP+ transceivers and connect network cables to port interfaces: Cables ◆ For RJ-45 ports, use 100-ohm Category 5, 5e or better twisted-pair cable for 1000BASE-T connections, Category 5 or better for 100BASE-TX connections, and Category 3 or better for 10BASE-T connections.
- Page 6 AC Input Power ECS4620-28T: 100 to 240 V, 50-60 Hz, 1.5 A ECS4620-28P: 100 to 240 V, 50-60 Hz, 10 A ECS4620-28F: 100 to 240 V, 50-60 Hz, 2 A ECS4620-52T: 100-240 VAC, 50-60 Hz, 2 A ECS4620-52P: 50-60 Hz...
