Figure C.1
NEC optional product attachment.
Do not use this connector unless specified.
Raising and Lowering the Monitor Screen
The monitor may be raised or lowered in either Portrait or Landscape modes.
To raise or lower screen, place hands on each side of the monitor and lift or lower to the desired height (Figure RL.1).
NOTE: Handle with care when raising or lowering the monitor screen.
Screen Rotation
Before rotating, the screen must be raised to the highest level to avoid knocking the screen off of the desk or
pinching your fingers.
To raise the screen, place hands on each side of the monitor and lift up to the highest position (Figure RL.1).
To rotate screen, place hands on each side of the monitor screen and turn clockwise from Landscape to Portrait
or counter-clockwise from Portrait to Landscape (Figure R.1).
To rotate the OSM menu between landscape and portrait, refer to the "OSM ROTATION" function in the
"Controls" section, of this manual.
NOTE: If the screen is rotated counterclockwise, the tilt function is not available. Rotate the screen 90°
clockwise until you hear one click.
INPUT1 INPUT2 INPUT1 INPUT2
Vacation
Switch

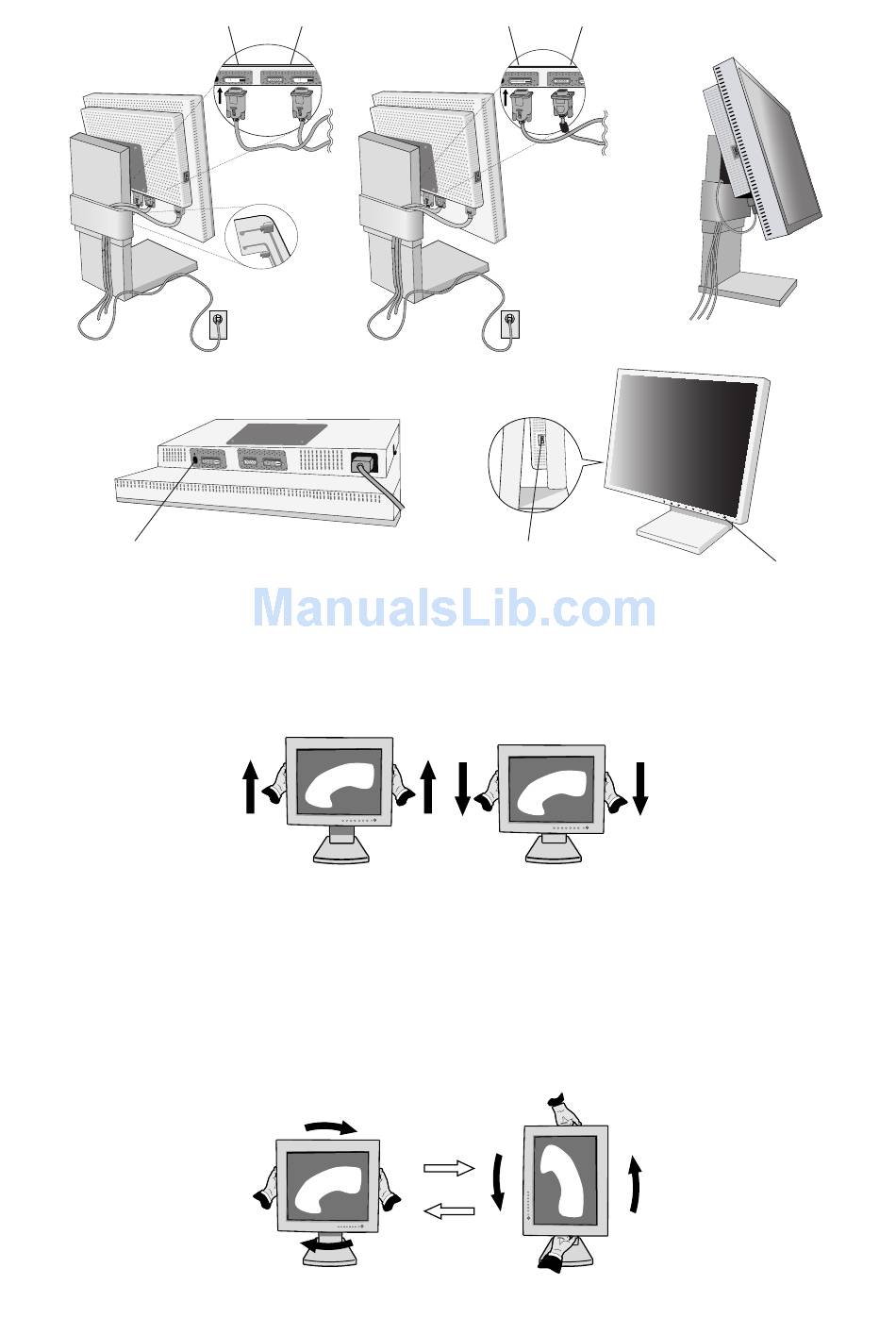

Figure RL.1
Figure R.1
4
Figure C.2
Power Button
Figure D.1
