MedRx AVANT POLAR HIT Installation Manual

Hide thumbs Also See for AVANT POLAR HIT:

Advertisement

Quick Links

Download this manual
INSTALLATION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the AVANT POLAR HIT and is the answer not in the manual?

Questions and answers

Related Manuals for MedRx AVANT POLAR HIT

Summary of Contents for MedRx AVANT POLAR HIT

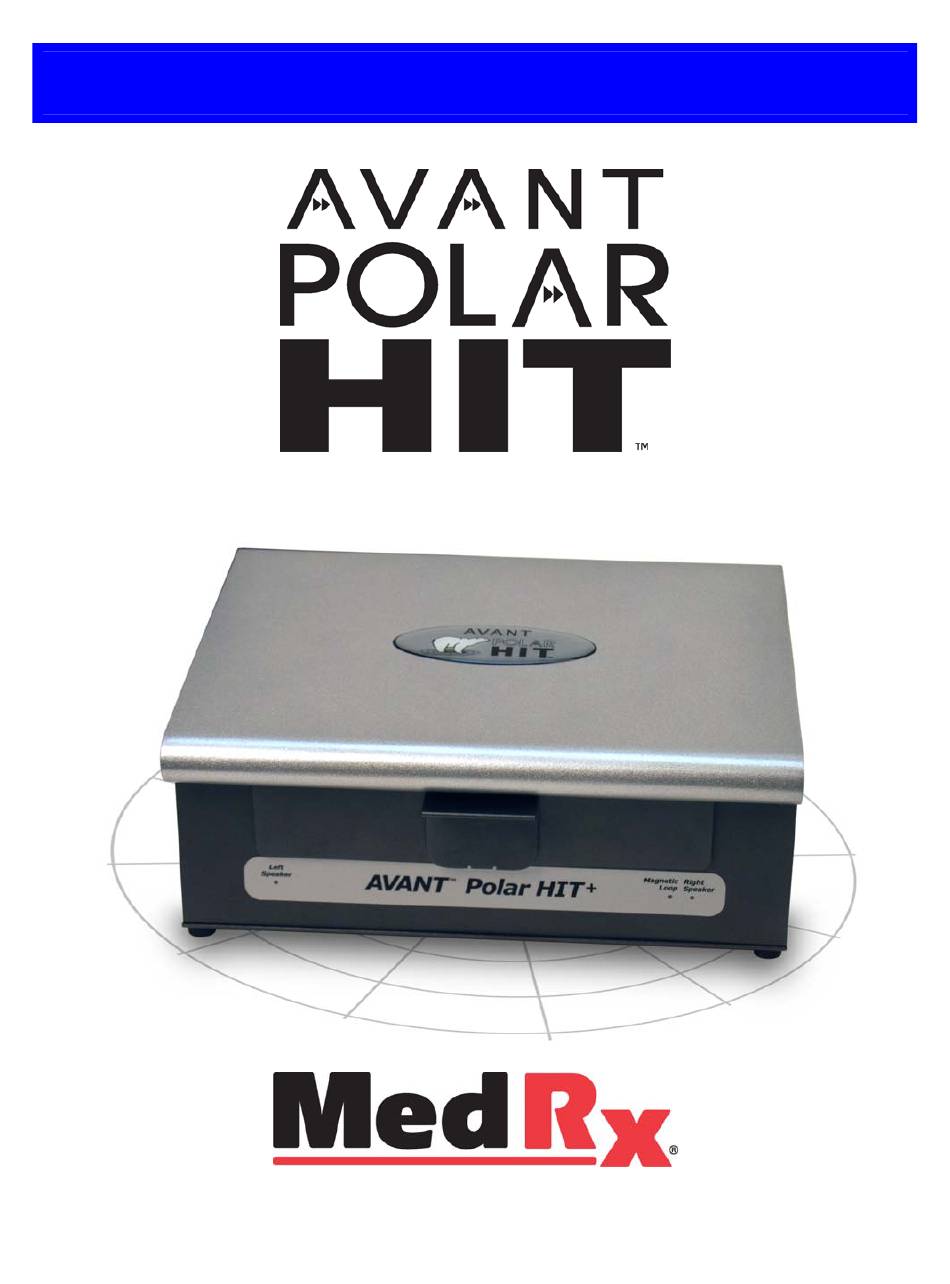

  • Page 1 INSTALLATION MANUAL...
  • Page 2 AH-I-MPHITS-6 MedRx AVANT Polar HIT Installation Manual Effective 1-30-12...

  • Page 3: Table Of Contents

    Fax: (727) 584-9602 • Email: medrx@medrx-usa.com MedRx's Authorized Representative in Europe (Regulatory affairs only) Emergo Europe, Molenstraat 15 2513 BH The Hague, The Netherlands Tel: (31) (0) 70 345-8570 • Fax: (31) (0) 70 346-7299 AH-I-MPHITS-6 MedRx AVANT Polar HIT Installation Manual Effective 1-30-12...

  • Page 4: Getting To Know Your Avant Polar Hit

    Getting to Know Your AVANT Polar HIT The AVANT Polar HIT represents a new era of precision Hearing Instrument Testing for your office. Compact yet rugged, this PC-Based system is USB powered and performs all required ANSI and IEC tests. A unique feature of the Polar HIT is a rotating test pad, which allows you to generate polar plots to verify the performance of directional microphones upon delivery and following repairs.
  • Page 5 Inside the Test Chamber Detail view of the Rotating Test Pad AH-I-MPHITS-6 MedRx AVANT Polar HIT Installation Manual Effective 1-30-12...

  • Page 6: Setting Up The System

    Once the microphones are installed, you must install the Polar HIT Software and Drivers. This procedure is detailed in the next sections of this manual. If you have difficulty with these steps, contact MedRx Technical Support at (888) 392-1234 or 727-584-9600.

  • Page 7: Software Installation

    Software Installation Do Not Plug in the AVANT POLAR HIT USB Cable yet 1. Insert the AVANT HIT CD-ROM into the CD drive. Wait until the Setup program starts. 2. On the Setup screen, choose Install Avant HIT. If the Setup program does not start automatically: •...
  • Page 8 This screen indicates the location of the program files. • Click Next. Note: You can install the Software to a different location, but it is not recommended. 7. Choose desired Locale • Click Next. AH-I-MPHITS-6 MedRx AVANT Polar HIT Installation Manual Effective 1-30-12...
  • Page 9 8. Ready to Install Program. • Click Install. 9. Wait while the InstallShield Wizard installs the AvantHIT program. • Click Next. 10. When the installation is complete, click Finish. AH-I-MPHITS-6 MedRx AVANT Polar HIT Installation Manual Effective 1-30-12...

  • Page 10: Driver Installation - Windows 7

    USB port on your computer each time it is used. It is advisable to mark this port with a label to assist with identifying it should the cable need to be disconnected. 1. Connect the USB cable from the AVANT POLAR HIT to your computer as shown above.
  • Page 11 6. When this window appears and all devices are “Ready to use”, click Close. 7. If this warning screen appears, click Install this driver software anyway. 8. On Setup Window click Exit AH-I-MPHITS-6 MedRx AVANT Polar HIT Installation Manual Effective 1-30-12...
  • Page 12 NOTE: The internal sound card on your computer will likely not have the same name as this screen shot. Consult your computer’s documentation for the name of the internal sound card and set this control accordingly. AH-I-MPHITS-6 MedRx AVANT Polar HIT Installation Manual Effective 1-30-12...

  • Page 13: Driver Installation - Windows Xp

    USB port on your computer each time it is used. It is advisable to mark this port with a label to assist with identifying it should the cable need to be disconnected. 1. Connect the USB cable from the AVANT POLAR HIT to your computer as shown above.
  • Page 14 Continue Anyway. 7. When this window appears, 8. Select No, not at this time 9. Click Next. 10. When this screen appears, 11. Select Install the software automatically (recommended). 12. Click Next. AH-I-MPHITS-6 MedRx AVANT Polar HIT Installation Manual Effective 1-30-12...
  • Page 15 13. When this screen appears, 14. Click Finish. Exit the Setup screen when the driver installation is finished. AH-I-MPHITS-6 MedRx AVANT Polar HIT Installation Manual Effective 1-30-12...
  • Page 16 7. When the audio properties are configured properly, the Audio Tab will appear like the image on the left. If not, use the pull-down lists to adjust the settings to match the image. AH-I-MPHITS-6 MedRx AVANT Polar HIT Installation Manual Effective 1-30-12...

  • Page 17: Accessories

    IEC Hearing Instrument Tests. Also included are two special accessories used only for Polar Plots. Note: There is a flexible O-ring inside both the 2cc Coupler and the Button Receiver Adapter. These must remain in place for the couplers to function properly. Replacement O-rings are available from MedRx. Battery Pills Battery Pills, also known as Battery Simulators, provide power to the hearing instrument during testing.

  • Page 18: Emc Precautions

    Harmonic emissions Non applicable connected to the public low - voltage power IEC 61000-3-2 supply network that supplies buildings used for Voltage fluctuations / flicker emissions Non applicable domestic purposes. IEC 61000-3-3 AH-I-MPHITS-6 MedRx AVANT Polar HIT Installation Manual Effective 1-30-12...
  • Page 19 , should be less than the compliance level in each frequency range Interference may occur in the vicinity of equipment marked with the following symbol: AH-I-MPHITS-6 MedRx AVANT Polar HIT Installation Manual Effective 1-30-12...
  • Page 20 At 80 MHz and 800 MHz the separation distance for the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. AH-I-MPHITS-6 MedRx AVANT Polar HIT Installation Manual Effective 1-30-12...

  • Page 21: Limited Warranty

    MedRx, Inc is not responsible for problems resulting from installation of unapproved software or hardware. In the event of unapproved software or hardware installed on the system causing a conflict, MedRx will service the product for a fee to be determined at the time of service.
