Quick Start

Attach Tilt/Swivel Base
To attach the MultiSync
instructions:
1. With the monitor unplugged from your system and the wall outlet, carefully
turn the monitor upside fown on a firm table (Figure TS-1).
2. Position the six hooks of the tilt/swivel base into the six holes on the bottom of
the monitor (Figure TS.2).
3. Slide the tilt/swivel base forward until the latch of the tilt/swivel base is secure
(Figure TS.3).
4. Having successfully installed your tilt/swivel base, carefully turn the monitor
right side up (Figure TS.4).

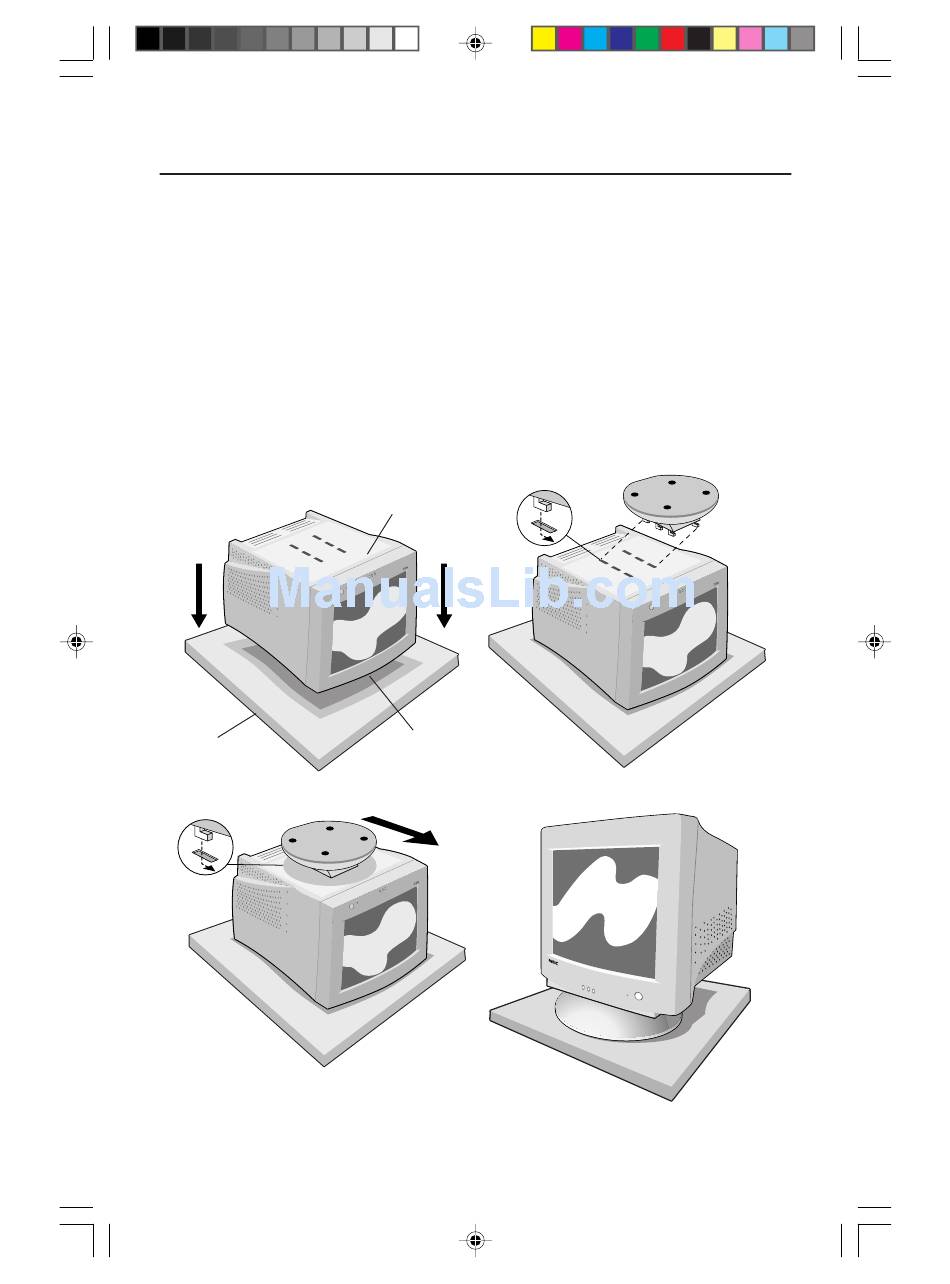

Firm Table
Figure TS-1
Figure TS-3
15500411.wpc
monitor to your system, follow these
®
Bottom of monitor
Top of monitor
CAUTION: Make certain that the tilt/
swivel base is locked firmly into place
before turning the monitor upright.
