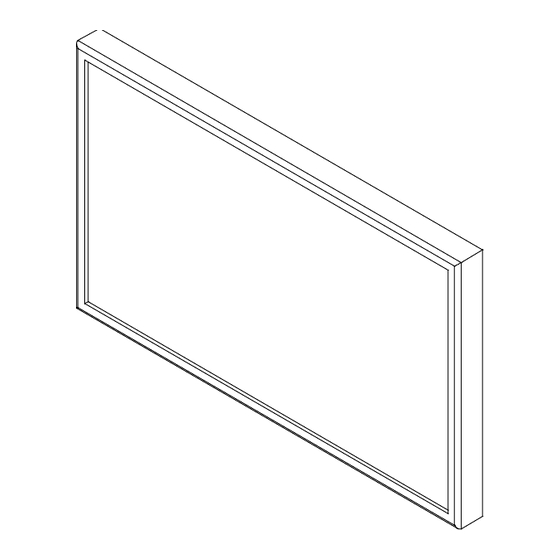

NEC PlasmaSync 50XM4 Installation Manual

50"
Hide thumbs

Advertisement

50XM4 Installation Guide
50" Plasma Display
Contents

Product Description

Type:
Plasma Display
Resolution:
1365x768
Aspect Ratio:
16:9
Color Correction: NEC CCF (Capsulated Color Filter, in panel)
and AccuCrimson (in front filter)
Notes
This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not
intended to be a step-by step procedure for installation.
Any ceilings or walls must be strong enough to support the display and the installation must be in accordance with any local
building codes. All mounts should make secure contact to wood studs.
4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched
horizontally to fill the screen using the menus (see "Aspect Modes" in menus and user manual).
Distances are in inches, for millimeters multiply by 25.4.
Distances may vary ±5%.
Maximum Tilt Angles
Below are the maximum angles that the display can be tilted in both landscape and portrait mode
Landscape
Portrait
www.necvisualsystems.com
30°
10°
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Screen Surface: Anti-Reflective
Dimensions:
Weight:
Max Tilt
NEC Solutions (America), Inc.
Visual Systems Division
48.1"(W) x 29.0"(H) x 3.8"(D)
97 lbs
50XM4
Page 1 of 1
v1.2

Advertisement

loading

  Related Manuals for NEC PlasmaSync 50XM4

  Summary of Contents for NEC PlasmaSync 50XM4

  • Page 1: Table Of Contents

    1365x768 Aspect Ratio: 16:9 Color Correction: NEC CCF (Capsulated Color Filter, in panel) and AccuCrimson (in front filter) Notes This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not intended to be a step-by step procedure for installation.
  • Page 2: Ventilation Requirements

    NOTE: The ventilation space should not be covered or closed off at the front of the opening. If for some reason the opening needs to be covered, other means of ventilation will need to be incorporated into the design. Contact NEC for design review and recommendations.
  • Page 3: Display Dimensions

    Display dimensions VOLUME INPUT SELECT MENU/ENTER DOWN UP LEFT/- RIGHT/+ 0.79 0.79 0.79 CONTROL BUTTONS 0.79 0.79 4.92 www.necvisualsystems.com TOP VIEW 44.33 43.54 (SCREEEN AREA) /EXIT 48.11 15.20 AC INLET SPEAKER TERMINAL BOTTOM VIEW FILTER SURFACE 20.55 LED & IR 1.46 2.46 POWER BUTTON...
  • Page 4: Rear, Left & Right Side

    Display dimensions (cont.) FOR PC OPTION 4-M4 DEPTH 10 FOR MOUNT OPTION 8-M4 DEPTH 14 4.08 LEFT SIDE VIEW www.necvisualsystems.com 20.87 17.52 25.75 48.11 REAR VIEW 0.469 0.217 0.91 0.406 0.665 1.59 1.50 RIGHT SIDE VIEW FOR MOUNT OPTION 4-M8 DEPTH 18 FOR SPEAKER OPTION 3.78 0.217...
  • Page 5: Display Dimensions W/Optional Speakers And Stand

    Dimensions with optional speakers and stand 3.78 43.54 (Screen Area) 32.05 6.72 48.11 15.75 55.24 www.necvisualsystems.com 50XM4 Page 5 of 5...
  • Page 6: Dimensions W/Optional Flat Wall Mount

    Dimensions with optional Flat Wall Mount Kit (FWMK) 16.0 12.0 24.0 12.1 www.necvisualsystems.com 50XM4 Page 6 of 6...
  • Page 7: Dimensions W/Optional Tilt Wall Mount

    Dimensions with optional Tilt Wall Mount Kit (TWMK) 16.0 12.1 24.0 12.0 12.9 Depth at 15° Tilt www.necvisualsystems.com 50XM4 Page 7 of 7...
  • Page 8: Dimensions W/Optional Ceiling Mount

    Dimensions with optional Ceiling Mount Kit (CMK) 16.2 16.0 15.9 Tilt Range: 0° - 15° 24.3 23.8 12.0 Tilt 0° Tilt 15° www.necvisualsystems.com 50XM4 Page 8 of 8...
  • Page 9: Portrait Mode

    Portrait Mode Rotating the Display The display must be rotated clockwise so the input panel is at the bottom and vents are at the top. Rotating the display counter-clockwise will not allow the unit to cool properly and will void the warranty. Vents Rotate Clockwise...
  • Page 10: Connections

    Connections LOCATED AT BOTTOM OF DISPLAY POWER EXT. SPEAKERS www.necvisualsystems.com 50XM4 Page 10 of 10...
  • Page 11: Control Codes

    THEAT.2 DEFAULT SCREEN MODE: STADIUM ZOOM NORMAL FULL AUTO PICTURE CINEMA MODE NOTE: Contact your NEC rep for codes not listed. NOTE: Use a cross/reverse/null modem cable. Cable Connection Communication Protocol: Interface: RS-232C Communication: Asynchronous Baud Rate: 9600 bps Data Length:...
