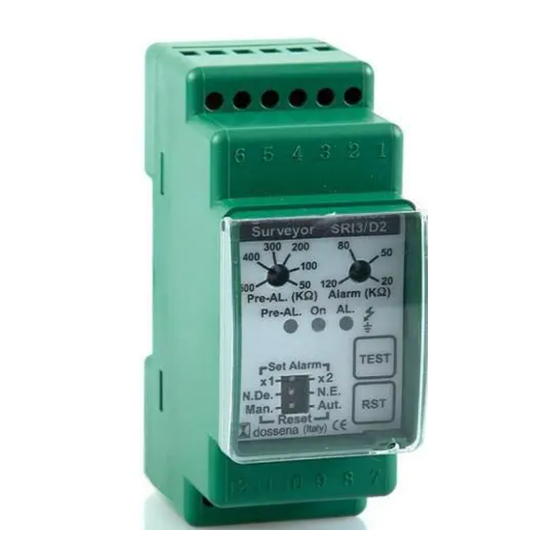

SRI3/D2
MU1215 REV 6

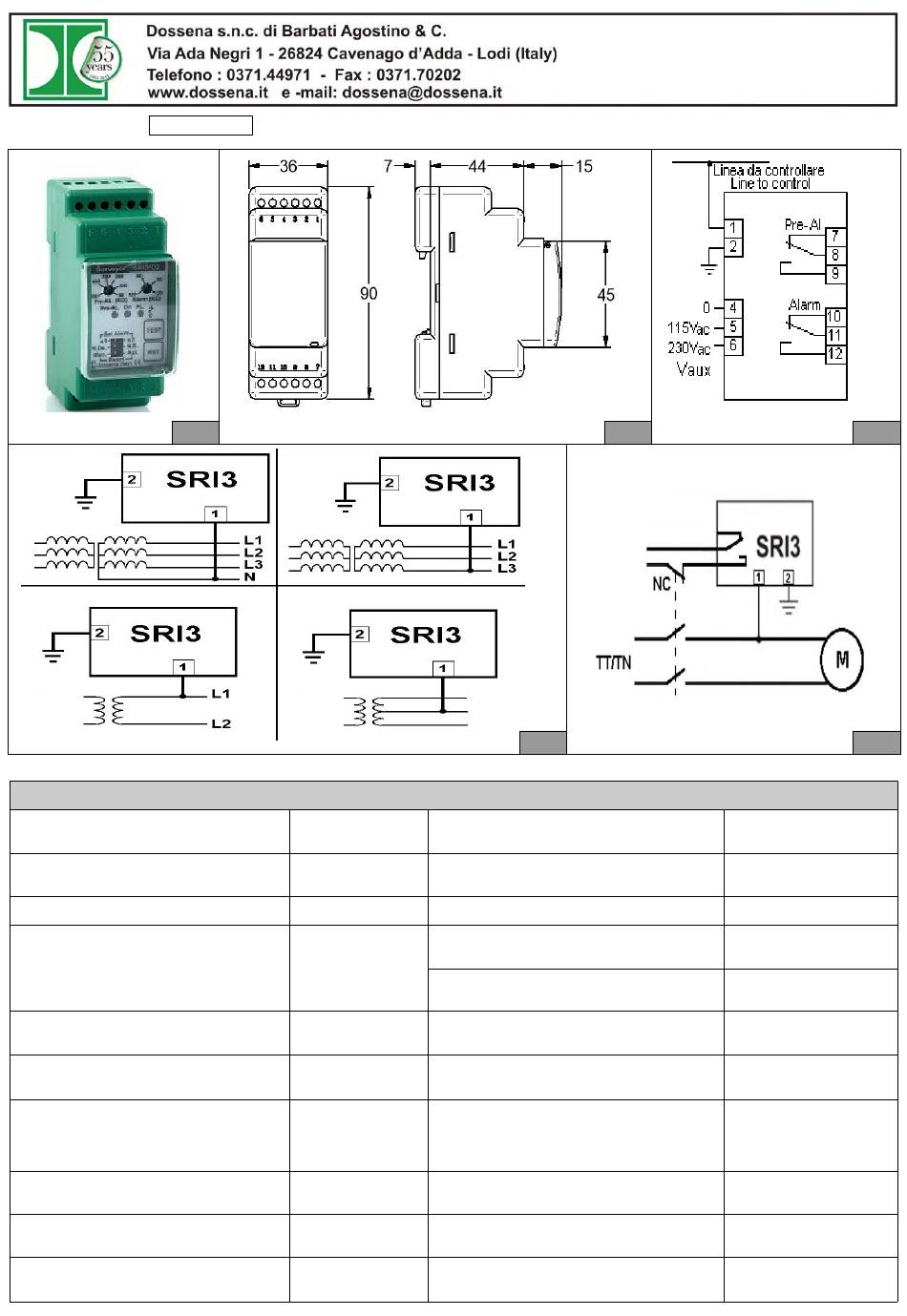

FIG1
ATTENZIONE: Gli IMD non devono essere collegati in parallelo– WARNING: IMDs shall not be connected in parallel
Tensione nominale Un
Nominal Voltage Un
Sistema di distribuzione - Tipo di IMD
Distribution System – IMD type
Ran (Valore di Risposta/ Response value)
Tan (Tempo di risposta/ Response time)
AC (@ C disp =1μF)
Tan (Tempo di risposta/ Response time)
AC/DC con Ufg >0 (@ C disp =1μF)
Max capacità di dispersione
Max dispersion capacity
Incertezza Relativa
Relative uncertainty
Numero dei contatti in uscita
Number of output contacts
Sezione massima terminali
Max terminal section
Temperatura di funzionamento
Working temperature
Norme di Riferimento
Reference Standard
CARATTERISTICHE TECNICHE/ TECHNICAL CHARACTERISTICS
AC/DC 0 - 400V
DC
0 - 420V
IT - AC/DC IMD
20KΩ ÷ 500KΩ
≤10sec
100sec
≤5μF
15%
±
n°2 (NA-C-NC)
n°2 (NO-C-NC)
2,5mm²
-10 ÷ 50°C
IEC 61557-8
IEC 61326-2-4
Codice Ordinazione- Order code: 9SRI3/D2
FIG2
FIG4
Tensione Ausiliaria Us
Aux power supply Us
Potenza consumata
Consumed power
Rf (resistenze misurabili/measurable resistance)
Massima tensione estranea in CC Ufg
Max external DC voltage Ufg
Categoria sovratensione/ Overvoltage category
Grado inquinamento/ Pollution degree
Ri–Zi (Resistenza-Impedenza interna
Internal resistance- Impedance )
Tensione di misura/ Measuring voltage Um
Corrente di misura/ Measuring current Im
Portata contatti in uscita
Output breaking capacity
Massima altitudine
Maximum altitude
Temperatura di stoccaggio
Storage temperature
Grado protezione
Protection degree
FIG3
FIG5
115/230Vca/ac ±10%
(50/60Hz)
<5VA
20KΩ÷ 500KΩ
≤420Vcc/dc
CAT II
2
≥400KΩ
@ 50 Hz
<15V
≤100uA
NA-C-NC (250Vca 5A
P.F.1 / 30Vcc 5A)
NO-C-NC (250Vac 5A
P.F.1 / 30Vdc 5A)
2000m
-20 ÷ 80°C
IP40 (frontale/ Frontal)
IP20 (morsetti/Terminal)
