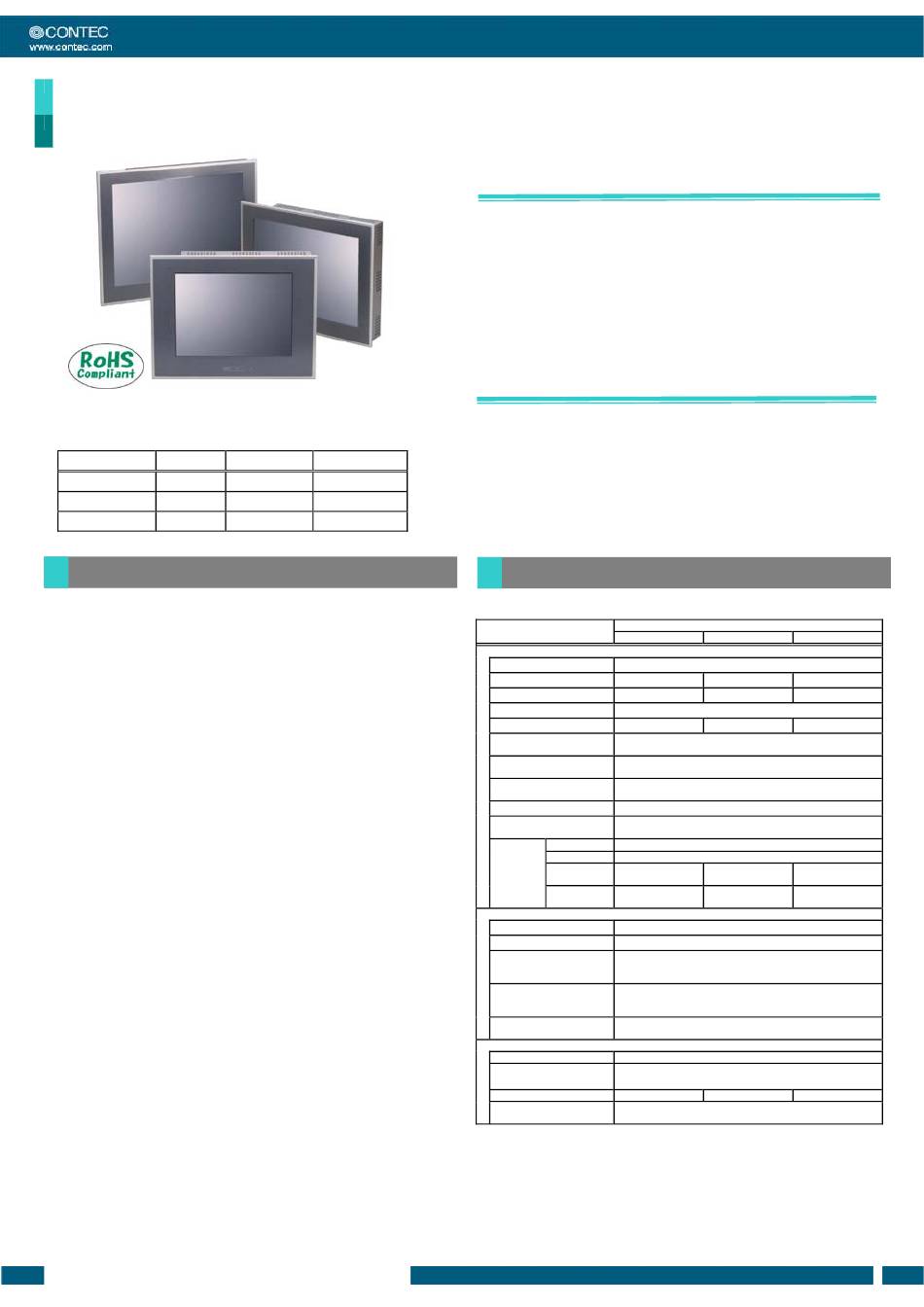

Contec FPD 21 Series Quick Start Manual

FLAT PANEL DISPLAY
Aluminum-Face Type
FPD-x21xT-AC Series
* Specifications, color and design of the products are subject to
change without notice.
Model Screen size
FPD-H21XT-AC
15 inches
FPD-L21ST-AC
12.1 inches
FPD-M21VT-AC
10.4 inches
Features
- Standard analog RGB input for screen. RS-232C and USB
interfaces for touch panel
Supports standard analog RGB input and touch panel operation
via either RS-232C or USB. The LCD is high-intensity with a
wide field of view and can display either 16,777,216 colors (15
inch model) or 262,144 colors (10.4 inch and 12.1 inch models).
The front on the display is made from lightweight aluminum.
The display features an analog touch panel that can emulate
mouse operation via the driver software.
- Auto-scaling feature that resizes the input screen to the
LCD dot configuration
Auto-scaling feature that resizes the input screen to the LCD
dot configuration
- On-screen display setup menu facilitating screen
adjustment
The on-screen display setup screen can be used to set
parameters such as the brightness, contrast, and display
position adjustment.
- Front structure with IP65-compliant ingress protection
Front structure with IP65-compliant ingress protection
- Panel attachment dimensions are compatible with the
IPC-DT/x6x series.
The compatibility of the panel attachment fitting with the
previous IPC-DT/x6x model facilitates replacement.
- USB multiple touch panel
This function can be used in the case when the RGB signal
from the host computer is split for connecting to multiple
displays via a splitter. The function permits touch panel
operation to be used at all the displays. A maximum of eight
touch panel displays can be connected
- Input connector allows the backlight to be switched on or
off externally.
The unit features an input connector that allows the backlight to
be switched on or off externally.
FPD-M21VT-AC, FPD-L21ST-AC, FPD-H21XT-AC
Number of pixels Number of colors
1024 x 768 dots 16,777,216 colors
800 x 600 dots 262,144 colors
640 x 480 dots 262,144 colors
These products are panel-mounted, analog RGB input type flat
panel display for use with host computers such as the CONTEC
IPC series and SBCs (single board computers).
These products use a high-intensity LCD with a wide viewing
field and touch panel operation via either RS-232C or USB.
They also feature an auto-scaling function and on-screen
display setup screen and front face with IP65-compliant ingress
protection.
As panel mounting is compatible with the existing IPC-DT/x6x
series, users can easily transit the system from the existing
system.
* For more details on the host computer and option of this product, please contact your
retailer.
Specification
Function Specifications
Item
FPD-M21VT-AC
Screen
Panel mounted
Assembly type
10.4 inches
Screen size
640 x 480 dots
Number of pixels
TFT Color LCD
Display type
262,144 colors
Number of colors
Automatic adjustment (display positioning and scaling) and
Screen adjustment
manual adjustment using the front switches
Adjustment using the front switch or software control from the
Brightness control
host computer
Can be turned ON/OFF by front panel switch, software control
Backlight control
from host computer, or rear connector input.
Analog RGB input HD-SUB 15 pin (Female) connector
Display interface
Cable length which 5m or less *1
recommends
Incoming Image signal Separate RGB, analog, positive polarity 0.7Vp-p/75Ω
signal
Sync signal Separate V/H, TTL, positive/negative polarity
specification
Horizontal 31 - 38kHz
scan frequency
Vertical scan 60 - 72Hz
frequency
Touch panel
4096 x 4096
Resolution
Resistive-layer analog method
Detection method
One million repeated touches
Touch life expectancy
(as tested by mechanical touching under 300g of force at a rate
of two presses per second)
Connect to the host computer using either USB *2 or RS-232C.
Touch panel interface
USB: USB1.1-compliant, TypeB Connector
RS-232C: 9pin D-SUB (Male) Connector
Touch panel driver For Windows: IPC-SLIB-01
(option)
Power supply input part
Power supply connector 3-pin terminal for AC power supply
Input power supply voltage 85 - 132VAC/170 - 265VAC(47 - 63Hz) Input automatic
operation switch
Consumption current 32VA(Max.)
Consumption current 14VA (Max.)
(power save mode)
*1 Using a cable longer than 5 m may reduce the image quality. The cable should be as short
as possible as degradation. in image quality may result even when the cable is 5 m or
shorter depending on the type of host computer or cable.
*2 The touch panel USB interface is only supported on Windows XP/2000/98SE.
Ver.1.00
Specification
FPD-L21ST-AC FPD-H21XT-AC
12.1 inches 15 inches
800 x 600 dots 1024 x 768 dots
262,144 colors 16,777,216 colors
31 - 48kHz 31 - 60kHz
56 - 72Hz 56 - 75Hz
35VA(Max.) 40VA(Max.)
1
