Summary of Contents for Stalwart STM-2036A

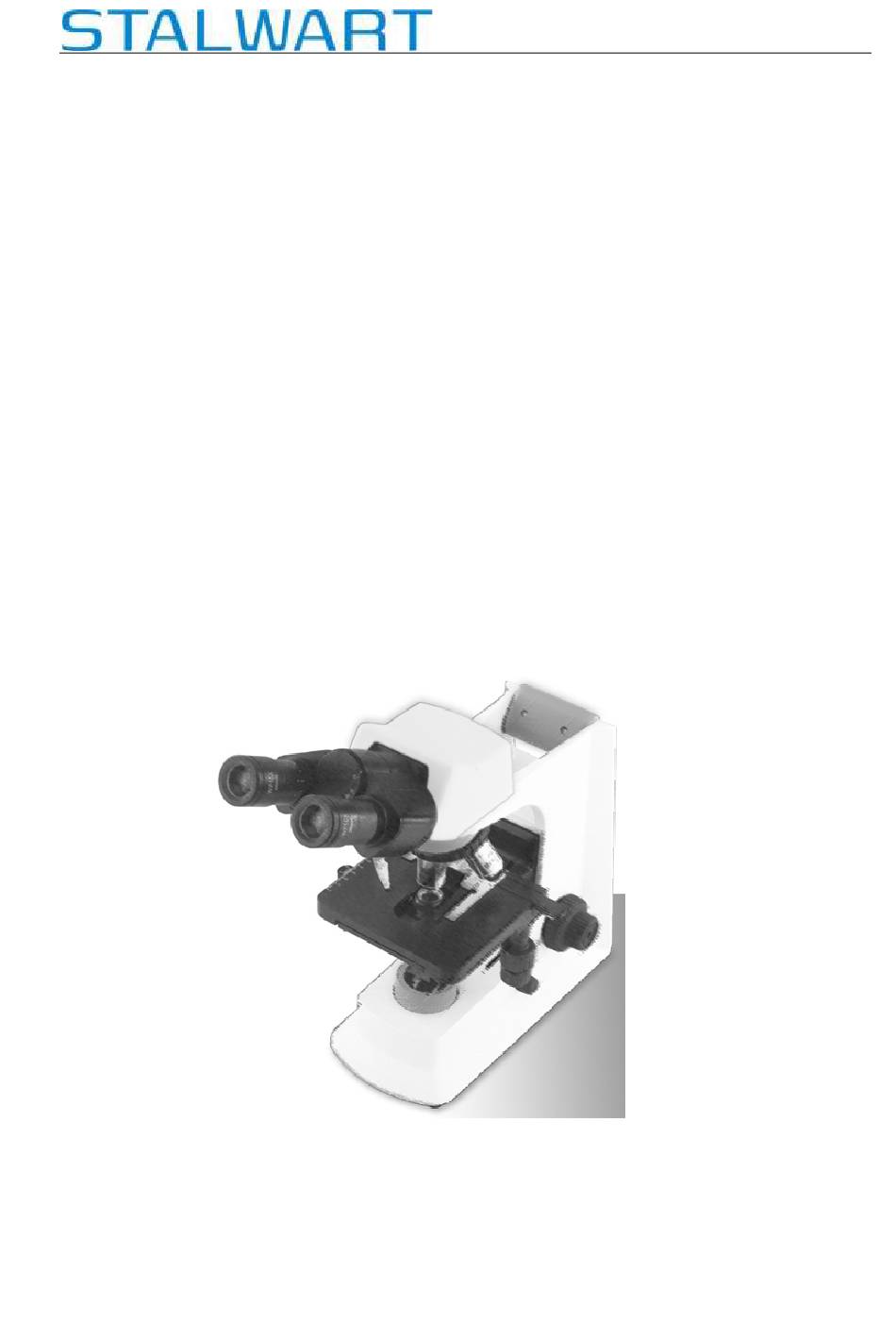

- Page 1 Biological Microscope Model：STM-2036A Instruction Manual...
-
Page 2: Table Of Contents
6. Maintenance ……………………………………………………………… 7. Troubleshooting ……………………………………………………………… 8. Outfits ……………………………………………………………… STM-2036A biological microscope is designed for college teaching, clinical verify. The microscope with original style, steady structure, convenient operation and clear image is suitable for observing various biological specimens, and mostly applied in college and -１-... -
Page 3: Parts Name
1. Pars Name ① Eyepiece ① ⑧ ② Objective ③ Clamp ④ Mechanical Stage ⑤ Condenser ② ⑥ Light Collector ⑦ C_③ Main Body Seidentopf ⑧ ④ Binocular Head (Trinocular Head) Power Input D_⑤ ⑨ Fuse E_⑥ ⑦ Diopter Adjustment Ring Nosepiece Clamp Handle Handle of Iris Aperture Diaphragm... - Page 4 Objective Total Magnifications 100X (Optional) Eyepiece 100X 200X 400X 1000X 160X 320X 640X 1600X 2.2 Objectives Numerical Objective Resolving Working Objective Aperture (N.A.) Field Power Distance 0.10 2.8µm 6.73mm 0.25 1.1µm 4.19mm 20X (S) 0.40 0.69µm 2.14mm 40X (S) 0.65 0.5mm 0.42µm 0.45mm...
-
Page 5: Installation
3. Installation Please clean the operation desk before installation. Put out the microscope of the carton and put it on the desk. Make sure the supply voltage meets the instrument’s requirement and the power switch is off. Installation Instruction Fig.: 1. -
Page 6: Operation
4. Operation 4.1 Bright field operation process instruction 1) Turn power switch, Turn on Switch L, and turn Potentiometer K. adjust light Put the sample on stage ④, (open the clamp 2) Put the sample C, and put the sample into it), turn stage knob H to put the sample into optical path. -
Page 7: Maintenance
6. Maintenance 6.1 Clean microscope 6.1.1 Don’t touch the lens with hand, Dust on lens should be cleaned by soft brush or absorbent cotton or cleaned by absorbent cotton, lens paper with the mixture of alcohol and ether (proportion 1:4). 6.1.2 Alcohol and ether all are burnt early, please take them away from fire. -
Page 8: Troubleshooting
7. Trouble shooting In the period of using this series microscope, if there is any trouble occurs, please referring to the following sheet listed some common troubleshooting resolve them. Trouble Causation Remedy Plug is unreliable Plug in again Switch on but bulb dark Bulb is broken Change bulb Fuse is broken... -
Page 9: Outfits
Trouble Causation Remedy It is easy for eyes to be Diopter isn’t adjusted correctly Readjust diopter tired during observing 8. Outfits Items Specification STM-2036A Standard WF 10×-18 mm Optional WF 10×-20mm Optional WF16×-13mm Eyepiece Reticule Eyepiece WF 10×-18 mm Optional (Reticule 0.1mm) - Page 10 Optional Yellow Packing Size: 420mm × 275mm × 450mm Gross Weight: 7.5 kgs Net Weight: 6.5 kgs -９-...
