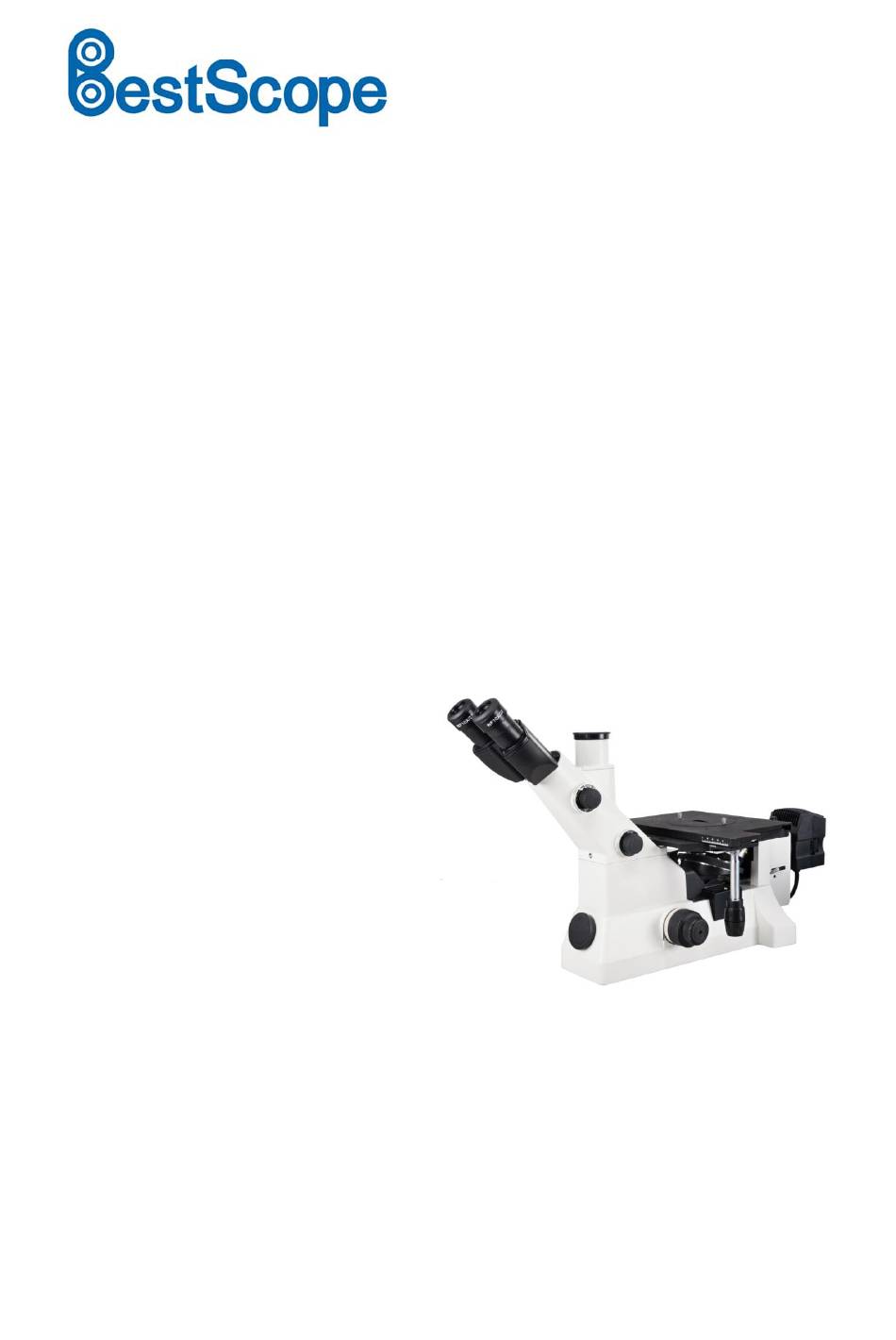

Inverted Metallurgical
Microscope
Model: BS-6030
User Manual
This manual is written for Inverted Metallurgical Microscope BS-6030. To ensure the safety,
obtain optimum performance and to familiarize yourself fully with the microscope, it is
strongly recommended that you read this manual carefully before operating the microscope.
Advertisement
Table of Contents
Related Manuals for BestScope BS-6030
Summary of Contents for BestScope BS-6030
- Page 1 Model: BS-6030 User Manual This manual is written for Inverted Metallurgical Microscope BS-6030. To ensure the safety, obtain optimum performance and to familiarize yourself fully with the microscope, it is strongly recommended that you read this manual carefully before operating the microscope.
-
Page 2: Table Of Contents
BestScope International Limited Contents User Notice 1 Component Name...............1 2 Assembly ..................2 2-1Assembly Diagram..............2 2-2 Assembly Step...............3 3 Adjustment Set Diagram..............8 4 Adjustment Procedures..............9 4-1 Microscope Body..............9 4-2 Mechanical Stage ...............10 4-3 Viewing Tube................11 4-4 Illumination Set..............13 4-5 Adjusting of Differential Interference ........15 4-6 The operation of Micrometer ..........16... -
Page 3: User Notice
BestScope International Limited User Notice 1. Safety Precautions 1.1 Microscope ought to be placed in a dry and clean place. Do not expose the Microscope in the sun directly. Avoid high temperature or humidity, dust and easy shaking environment. Make sure the stage is horizontal and firm enough. (Weight: Main Body is 12 kg) 1.2 When moving the instrument, grip two sides of the bottom(1 and 2 point ) of the... -
Page 4: Component Name
BestScope International Limited 1. Component Name Trinocular head Eyepiece Mechanical Stage Stage Center Plate Lamp House Viewing Head Camera Port Objective Microscope Body Quintuple Nosepiece Main Switch Coarse Focus Knob Fine Focus Knob... -
Page 5: Assembly
BestScope International Limited 2. Assembly 2-1 Assembly Diagram The diagram shows the sequence of the assembly, the number in the chart indicate the assembly step. ★ Before assembly please be sure all parts are free of dust and contamination. No scratch on any parts or the surface of the glass. - Page 6 BestScope International Limited 2-2 Assembly Procedure 2-2-1 Installing and Replacing the Bulb (Chart 3) ★ Please use the specified halogen Lamp (12V/50W) which supplied by our company. 1. Bulb replacement during use or just after use. The bulb, the lamp house and nearby parts will be very hot.
- Page 7 BestScope International Limited 2-2-3 Installing the objective(Chart 5 & 6) 1. Turning the coarse focusing knob① as the figure shows till the nosepiece gets to its lower limit. ★ For ensuring the safety of the instrument during transportation, the nosepiece is located in the lowest position and the tension adjustment collar②...
- Page 8 BestScope International Limited 2-2-4 Mounting Auxiliary Stage (Chart 7) ★ Attached 3 kinds of auxiliary stage for your option (chart 1) When use the auxiliary stage 2, firstly, set the stage clips 1 aside, Gently place the auxiliary stage 2 into the movement stage 3. The both side of the water drop should be placed in the horizontal direction when choose the water drop shape auxiliary stage.
- Page 9 BestScope International Limited 2-2-7 Mounting differential interference accessories (chart 9) Insert the micrometer accessories3 into dovetail groove4 and push to the bottom, When fail to move on any more, indicate that the micrometer is in the right place and into the light source.
- Page 10 BestScope International Limited Chart 11 Chart 12 2-2-9 Replacing the Fuse (chart 10,11&12) Do remember to set the main switch① to the state of “O” (OFF) and unplug the power cord before replacing the fuse(chart 12). Rotate the fuse3 kits out of the holder with the “--”type screwdriver, replace with a new fuse, then...
-
Page 11: Adjustment Set Diagram
BestScope International Limited 3. Adjustment Set Diagram Filament control screw Diaphragm Diaphragm Polarized draw bar Bright&Dark draw bar central adjustable lever lever Chart13 Optical Path switch knob Coarse and fine focusing Fine focusing knob Coarse focusing tension knob knob Chart 14... - Page 12 BestScope International Limited 4. Adjustment 4-1 Microscope Base 4-1-1 Turning On the Lamp (chart 15) Connect the power supply, then set the main switch①(shown in chart15) on the left side of the base to “ － ”(on). 4-1-2 Adjusting the brightness (chart 15) Turning the brightness adjustment knob2 clockwise, the voltage raises, and the brightness is strengthen;...
-
Page 13: Mechanical Stage
BestScope International Limited 4-2 Mechanical Stage 4-2-1 Placing and Moving the Specimen (chart 17&18) 1. Place the specimen in the center of the auxiliary stage. (polished surface of specimen should face down on the stage) ★ Before place the specimen on the stage, choose the proper stage according to the size of the specimen. - Page 14 BestScope International Limited Scale value Chart 17 Scale value Chart 18 4-3 Binocular Viewing Head 4-3-1 Adjusting the Diopter 1. Looking through the right ocular with your right eye with the 10X objective, revolve the coarse and fine focusing adjustment knob to focus on the specimen.
- Page 15 BestScope International Limited Left and right Prise table Chart 19 Chart 20 4-3-2 Adjusting the Interpupillary Distance (chart 10/20) When observing with two eyes, hold on the left and right prism holders, turn them around the axis to adjust the interpupillary distance until the left and right fields of view coincide completely.
-
Page 16: Illumination Set
BestScope International Limited Up knob Down knob Chart 21 Brightness Proportion Appliecation Light Path Selecting Lever Up and down knob push in 100% used for binocular Dark field observation observation Bright specimen observation and 80% used for binocular television \micrography \ video C-... - Page 17 BestScope International Limited Chart 4-4-2 The usage of filter 1. Choose the proper filter according to the specimen will make the observation and picture capture more effectively. Color Filter Function Green Solid color contrast Ground glass Remove filament image, make brightness uniform...
- Page 18 BestScope International Limited Then adjust the screw2 by S2 internal hexagonal wrench. Until find that the field diaphragm and aperture diaphragm become the same, match together completely. (The filed diaphragm must be adjust to the center ) Chart 23 4-4-4 Adjusting the field diaphragm (chart 23) 1.
-
Page 19: Adjusting Of Differential Interference
★ Be note that: Make the lever2 in the OUT position should be priority to adjust the lever1 in the BF position. ★ The mentioned instrument (BS-6030 microscope) could work under both dark and bright field condition, thus, no need to change the objective when observe under dark field. - Page 20 BestScope International Limited To ensure the vertical illumination worked in the polarize orthogonal condition, insert the differential interference parts into the dove-tail slot of up and down of the main body, rotating the differential interference abeam knob1, could observe the various color change. Rotating the up and down knob2, when some kind of color is full of the whole a field, then make observation.( chart 25)
-
Page 21: Microscope Video And Photography
BestScope International Limited T--------T=0.01, The reticle grid of objective micrometer. Should better keep the obtain data in the following table. Objective Magnification (nominal) value) Objective Magnification (actual) mearue) The objective magnification can calculate the precise linear of the specimen. 5. Microscope Video and Photography... -
Page 22: Microscope Photography
BestScope International Limited 5-1-3 Focus (chart27) Looking through eyepiece with 80% intensity of light, focus the specimen to get a sharp image, and then check the image on the CCTV or the CCD which is connected with the microscope video set. -
Page 23: Technical Specification
BestScope International Limited 1. Take out the dust cap 1. 2. Insert the digital photography set2 into the trinocular port and screw the shrink ring3 tightly and then connect the "Canon G9" digital camera. (The coupling of other brand camera may be different, need special design ) 6. -
Page 24: Total Magnification
BestScope International Limited 6-2 Objectives Specification Working Aperture Conjugate Parfocal Magnification Type Distance (mm) Number (N.A) Distance (mm) Distance (mm) ∞ 0.12 Infinity Plan achromatic ∞ 0.25 long working ∞ distance ∞ objective 0.75 ∞ 100X 0.90 6-3 Eyepiece Specification... -
Page 25: Whole Set Of Instrument
BestScope International Limited 7. Whole Set of Instrument ( * optional outfit ) Content Quantity Remark BS-6030 inverted microscope body WF10X22mm eyepiece optional outfit WF15X16mm eyepiece* optional outfit WF20X12mm eyepiece* WF10X with reticle eyepiece(0.1mm) Plan Achromatic objective optional outfit 2.5X*... -
Page 26: Trouble Shooting
BestScope International Limited (0.5X)optional CCD switch lens accessories* 135 photography optional objective *accessorie 8. Trouble Shooting If you meet trouble during operation, please take proper measures according to the follow list. If you can’t solve the trouble by the supplied methods, please contact with the sales department of our company. - Page 27 BestScope International Limited Mend and correct the 4.The image is The objective damages objective (send to factory defocused, of low- for overhauling) resolution The lens of the objective and eyepiece is moldy or Do cleaning has contaminant The Aperture diaphragm...
- Page 28 BestScope International Limited 2.The image can’t The tension adjustment collar Tighten the tension properly stay on the focal plane is set too loose in the process of the observation C. Electrical system No power supply Check the power cord, 1. The lamp can’t light...
