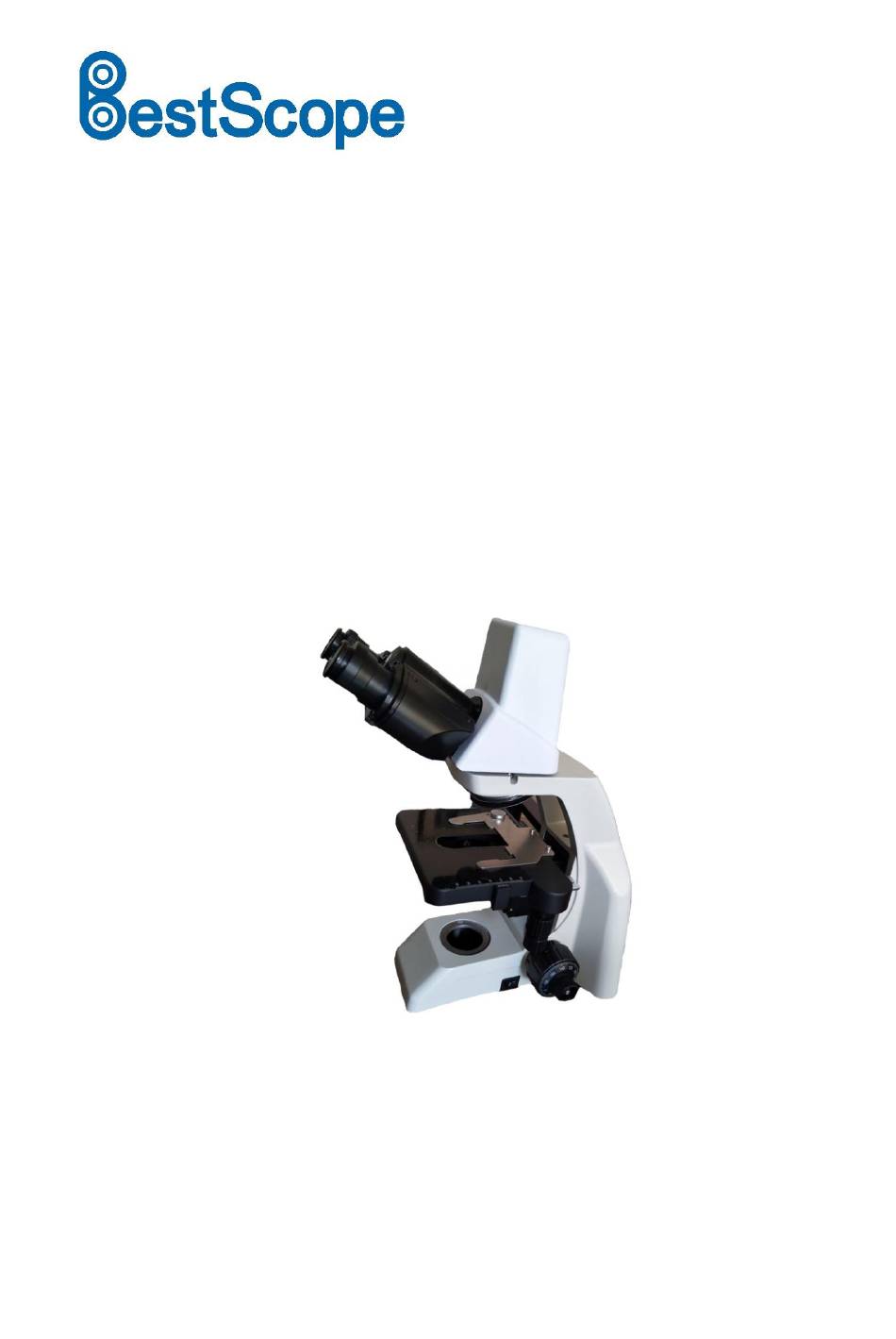

Biological Digital Microscope
BS-2052BDBD
Instruction Manual
This manual is for BS-2052BD series biological digital microscope. To ensure the safety, obtain optimum
performance and to familiarize yourself fully with the use of this microscope, it is recommended strongly
that you study this manual thoroughly before operating the microscope.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BS-2052BDBD and is the answer not in the manual?

Questions and answers

Related Manuals for BestScope BS-2052BDBD

Summary of Contents for BestScope BS-2052BDBD

  • Page 1 Biological Digital Microscope BS-2052BDBD Instruction Manual This manual is for BS-2052BD series biological digital microscope. To ensure the safety, obtain optimum performance and to familiarize yourself fully with the use of this microscope, it is recommended strongly that you study this manual thoroughly before operating the microscope.

  • Page 2: Table Of Contents

    BestScope International Limited CONTENTS BS-2052BD CONTENTS ......................0 USER NOTICE...................... 2 1. Components Name ..................3 2．Assembly ...................... 4 2.1 Assembly Diagram .................. 4 2.2 Assembly procedure ................5 3. Adjustment and Operation ................9 3.1 Adjustment set diagram ................. 9 3.2 Adjustment and Operation ..............

  • Page 3: User Notice

    6. Check the input voltage: be sure the input voltage which is signed in the back of the microscope is consistent with the power supply voltage, or it will bring a serious damage to the instrument. 7. Always use the power cord provided by BestScope. 8. The electrical equipment of the microscope should be discarded as electronic waste.

  • Page 4: Components Name

    BestScope International Limited 1. Components Name BS-2052BD Binocular digital viewing head Eyepiece Nosepiece Objective Condenser Stage Illumination Main body...

  • Page 5: 2．Assembly

    BestScope International Limited 2．Assembly BS-2052BD 2.1 Assembly Diagram The following figure shows the installation sequence of the components. The number in the figure shows the assembly steps.  Before installing, be sure every component is clean, do not score any parts or glass surface.

  • Page 6: Assembly Procedure

    BestScope International Limited BS-2052BD 2.2 Assembly procedure 2.2.1 Installing binocular digital viewing head (Fig.1-2) Insert the binocular digital viewing head into the microscope head and turn it to a proper position, then tight it. Plug the USB cable to the digital head and PC USB port.
  • Page 7 BestScope International Limited BS-2052BD 2.2.3 Installing the objective (Fig.5-6) 1. Adjusting the coarse focus knob until the support device of the mechanical stage reaches its low limit position. 2. Screw the lowest magnification objective into the nosepiece from the left or the right side,...
  • Page 8 BestScope International Limited BS-2052BD 2.2.4 Connecting the Power Cord (Fig.8- ★ The cable and cords are vulnerable when ② bent or twisted, never subject the power cord ① to excessive force. Fig.8 Set the main switch① to “O” (off) state before connecting the power cord.
  • Page 9 BestScope International Limited BS-2052BD 2.2.8 Installing and Replacing the bulb (Fig.11-12)  Please use the specified halogen Lamp 6V20W. ① Loosing the screw①. Hold the bulb②after you wrap it with gauze or other protection materials, and then insert its pin deeply into the jack in the lamp holder.

  • Page 10: Adjustment And Operation

    BestScope International Limited 3. Adjustment and Operation BS-2052BD 3.1 Adjustment set diagram Portrait Adjustment Knob Aperture Iris Diaphragm adjustment Lateral Adjustment Knob Right Coarse Focus Knob Main Switch Right Fine Focus Knob Tension Adjustment Collar Fig.13...
  • Page 11 BestScope International Limited BS-2052BD Interpupillary Distance Indicator Condenser Focusing Knob Left Fine Focus Knob Left Coarse Focus Clocking Set Brightness Adjustment Knob Knob Fig.14...

  • Page 12: Adjustment And Operation

    BestScope International Limited BS-2052BD 3.2 Adjustment and Operation 3.2.1 Brightness Adjustment (Fig.15-16) Connect the power cord and set the main switch① to “－” state (ON). Turning the brightness adjustment knob ②. 3.2.2 Placing the Specimen (Fig.17) Place the specimen the center of the mechanical ①...
  • Page 13 BestScope International Limited BS-2052BD 3.2.4 Condenser Adjustment (Fig.19) Turn the condenser focus knob①to move the condenser up and down. Raise the condenser when using the high magnification objective, and descend ② it when using the low magnification one. ① 1. Focus the specimen with 10× objective.
  • Page 14 BestScope International Limited BS-2052BD 3.2.6 Adjusting the Interpupillary Distance (Fig.21) The interpupillary distance range: 47mm ～ 78mm. While looking through the eyepieces, move both eyepieces round until the left and right fields of view coincide completely. Fig.21 3.2.7 Adjusting the Diopter (Fig.22) Turn the eyepiece①to adjust the diopter...
  • Page 15 BestScope International Limited BS-2052BD 3.2.9 Adjusting the Interpupillary Distance (Fig.24) The microscope with ECO: The equipment can induct the front surroundings in 1m. At the moment, it light red and light source Fig.24 keeping working. When people left and no object within the front 1m, the red light would flashed.

  • Page 16: 4．Technical Specifications

    BestScope International Limited 4. Technical Specifications BS-2052BD 4.1 Main Specifications Optical System Infinite optical system Seidentopf Binocular digital Head(5.0MP built-in camera), 30°Inclined, Interpupillary Distance 47- Viewing Head 78 mm Eyepiece WF10X/20 Nosepiece Backward Quadruple Nosepiece Objective Infinite Plan Achromatic Objective 4×, 10×, 40×, 100× (2×, 20×, 60× are optional) Focusing Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 20mm...

  • Page 17: 5．Outfit

    BestScope International Limited 5. Outfit BS-2052BD Item Specification Quantity BS-2052BD Main Stand ● Battery Charging ○ Main Body ECO Function ○ Double Layers Mechanical Stage ● Condenser Holder ● Seidentopf Binocular digital Head with Viewing Head ● 5.0MP built-in camera Condenser Abbe Condenser, NA=1.25...

  • Page 18: 6．Troubleshooting Guide

    BestScope International Limited 6． Troubleshooting Guide BS-2052BD 6.1 Optical System TROUBLE CAUSE SOLUTION The nosepiece is not in the located Locate the nosepiece position (objective and light path not properly where it clicks coaxial) 1. The edge of the field of...
  • Page 19 BestScope International Limited BS-2052BD 6.2 Mechanical System TROUBLE CAUSE SOLUTION 1.Field of view of one eye does not match Interpupillary distance is incorrect Adjust interpupillary distance that of the other The diopter is not proper Adjust the diopter properly 2. Observation is tiring...
