Summary of Contents for Leonton REG5-2602-2C

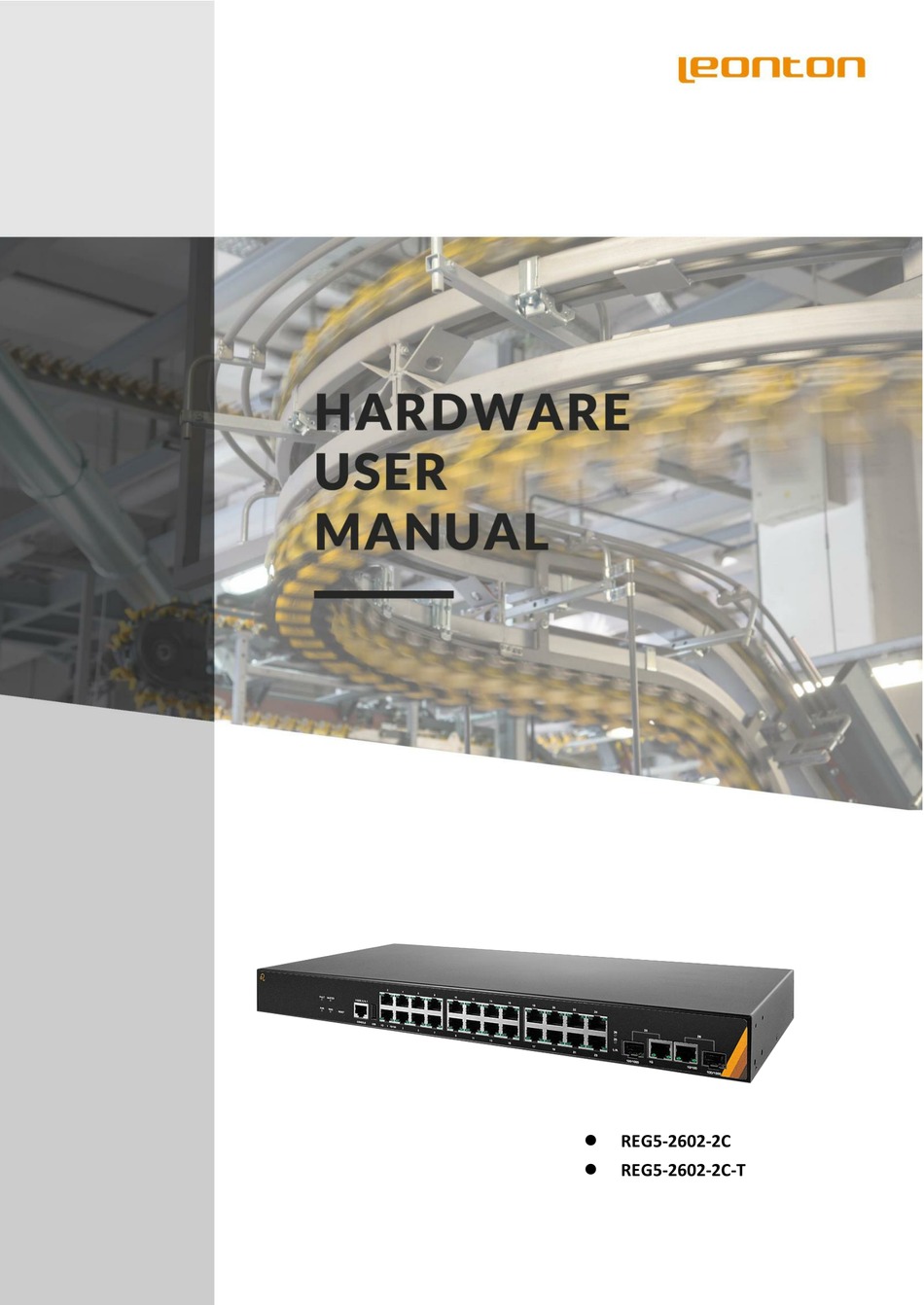

- Page 1 ⚫ REG5-2602-2C ⚫ REG5-2602-2C-T ⚫...
- Page 2 Disclaimer Leonton Technologies, Co. Ltd. provides this manual without warranty of any kind, expressed or implied, including but not limited to the implied warranties of merchantability and fitness for a particular purpose.
- Page 3 Ceci est un produit de classe A. Dans un environnement domestique, ce produit peut être utilisé en présence d'interférences radio. This document is the current official release manual. Please check our website (www.leonton.com) for any updated manual or contact us by e-mail (sales@leonton.com).
-
Page 4: Table Of Contents
CONTENT OVERVIEW ........................... 5 Key Features ................................. 5 Package Contents ............................... 5 HARDWARE DESCRIPTION ...................... 6 Physical Dimensions ..............................6 Front Panel ..................................7 Rear Panel ..................................7 LED Indicators ................................8 Ethernet Ports ................................9 Cabling ..................................10 Wiring the Power Inputs ............................12 Wiring the Fault Alarm Contact .......................... -
Page 5: Overview
⚫ IP40 protection ⚫ Rack-mount design Package Contents ⚫ 1 - REG5-2602-2C(-T) - Unit Weight: 2.68kg (5.92 lb), Shipping Weight: 3.56 kg (7.87 lb) ⚫ 2 - Rack-mounting Brackets and Screws ⚫ 1 - Quick Installation Guide ⚫ 1 - RJ45 to DB9 Serial Console Cable ⚫... -
Page 6: Hardware Description
HARDWARE DESCRIPTION Physical Dimensions Figure 2.1, below, shows the physical dimensions of REG5-2602-2C series. (W x H x D) is 440mm x 44mm x 200mm Figure 2.1: Physical Dimensions... -
Page 7: Front Panel
Figure 2.2: The Front Panel of REG5-2602-2C Series Rear Panel Figure 2.3, below shows the rear panel of the REG5-2602-2C series switch that is equipped with one AC power socket (100-240VAC) and a 2-pin terminal block for relay output. Power Socket... -
Page 8: Led Indicators
LED Indicators There are LED light indicators located on the front panel of the industrial switch that display the power status and network status. Each LED indicator has a different color and has its specific meaning, see below in Table 2.1. -
Page 9: Ethernet Ports
Ethernet Ports RJ-45 Ports (Auto MDI/MDIX) The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX or 1000Base-T devices connections. Auto MDI/MDIX means that the switch can connect to another switch or workstation without changing the straight-through or crossover cabling. See the figures as below for straight-through and crossover cabling schematics. -
Page 10: Cabling
Cabling Use the four twisted-pair, category 5e, or the above cabling for RJ-45 port connections. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long. The small form-factor pluggable (SFP) is a compact optical transceiver used in optical communications for both telecommunication and data communication applications. - Page 11 Step 2 Insert the fiber cable of the LC connector into the transceiver as shown below in Figure 2.6. Figure 2.6: LC Connector to the Transceiver To remove the LC connector from the transceiver, please follow the steps shown below: Step 1 Press the upper side of the LC connector from the transceiver and pull it out to release as shown below in Figure 2.7...
-
Page 12: Wiring The Power Inputs
Wiring the Power Inputs Step 1 Insert the AC power cable into the universal AC socket as shown below in Step 2 Figure 2.. Figure 2.9: AC Power Socket Step 3 Switch the power switch for power on. Wiring the Fault Alarm Contact The fault alarm contact is on the 2-pin terminal block connector as the picture shows below in Figure 2.10. -
Page 13: Grounding Note
Grounding Note Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. The grounding screw symbol is shown blow in Figure 2.11. Figure 2.11: Grounding Screw Symbol Caution: Using a shielded cable achieves better electromagnetic compatibility. -
Page 14: Mounting Installation
MOUNTING INSTALLATION Rack Mounting This switch can be mounted in a standard 19-inch rack with rack-mount kits. Please follow the instruction shown below in Figure 3.1 to install rack-mounting switch. Locate one plate to align with the holes on one side of the switch and secure it with the plate screws and then attach the remaining plate to the other side of the switch. -
Page 15: Hardware Installation
HARDWARE INSTALLATION Installation Steps This section will explain how to install REG5-2602-2C series. Installation Steps Step 1. Unpack the industrial switch from the original packing box. Step 2. If the rack-mount bracket is not screwed on the industrial switch, please refer to the Rack Mounting section for installation. - Page 16 Caution: If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. Attention: Si l'équipement est utilisé d'une manière non spécifiée par le fabricant, la protection fournie par l'équipement peut être altérée. Caution: The installation that the safety to any system incorporating the equipment is the responsibility of the assembler of the system.
-
Page 17: Trouble Shooting
If the power indicator LED does not turn on when the power cord is plugged in, the user may have a problem with the power cord. Check for loose power connections, power losses or surges at the power outlet. Please contact Leonton for technical support service, if the problem still cannot be resolved. ◆ ●...
