- Page 1 LEONTON GINJ-0201-AT-24 Series (GINJ-0201-AT-24 / GINJ-0201-AT-24-T) User Manual...
- Page 2 Disclaimer LEONTON Technologies, Co. Ltd. provides this manual without warranty of any kind, expressed or implied, including but not limited to the implied warranties of merchantability and fitness for a particular purpose.
- Page 3 This is a Class-A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. This document is the current official release manual. Please check our website (www.leonton.com) for any updated manual or contact us by e-mail (sales@leonton.com).
-
Page 4: Table Of Contents
Contents Overview ........................1 Hardware Features ....................1 Package Contents ....................2 Hardware Description ....................1 Physical Dimensions ....................1 Front Panel ......................2 Top View........................ 2 LED Indicators......................3 Cabling ........................3 Wiring the Power Inputs..................3 Grounding Note..................... 4 Mounting Installation .................... -
Page 5: Overview
PoE function. Therefore, Leonton’s GINJ-0201-AT-24 Series will be your best choice to deal with the lack of PoE function cases. GINJ-0201-AT-24 Series supports low voltage 24VDC model with power booster technology, ensuring full 30W PoE output, for better usage in the automation industry. -
Page 6: Package Contents
Case/Installation IP-30 protection Installation in a Pollution Degree 2 industrial environment DIN-Rail and wall mount design Package Contents 1 - GINJ-0201-AT-24(-T) product 2 - Wall mounting brackets and screws 1 – Quick Installation Guide (printed) -
Page 7: Hardware Description
Hardware Description Physical Dimensions Figure 2.1, below, shows the physical dimensions of GINJ-0201-AT-24 series. (W x D x H) is 26mm x 75mm x 95mm Figure 2.1: GINJ-0201-AT-24 Series Physical Dimensions... -
Page 8: Front Panel

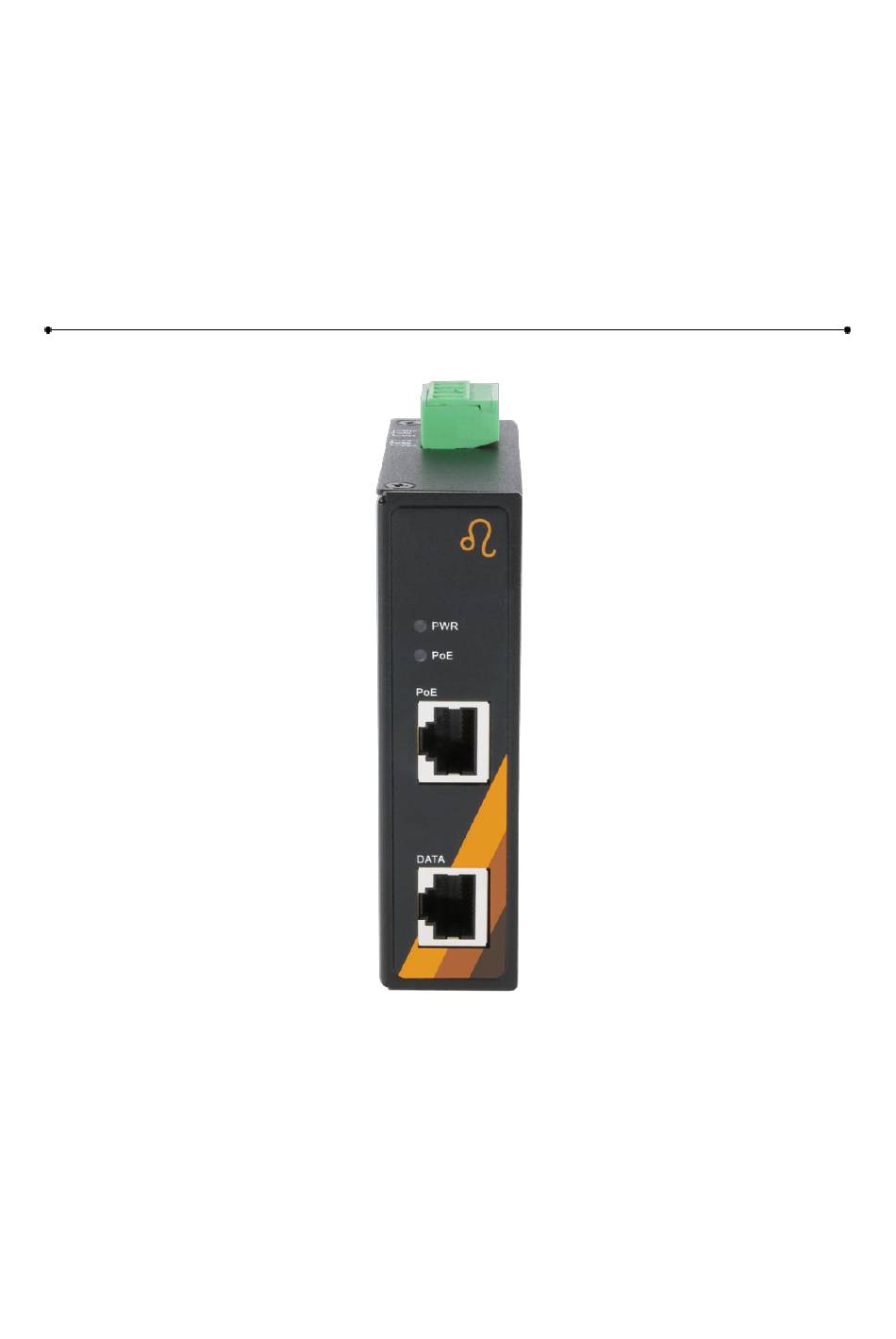

Front Panel The front panel of the GINJ-0201-AT-24 series industrial Gigabit PoE Injector is shown below in Figure 2.2. Figure 2.2: The Front Panel of GINJ-0201-AT-24 Series Top View Figure 2.3, below, shows the top panel of the GINJ-0201-AT-24 series injector that is equipped with one 4-pin removal terminal block connector for dual 12-55VDC power inputs. -
Page 9: Led Indicators
Green No powered-device attached or power supplying fails Table 2.4: LED Indictors for GINJ-0201-AT-24 Series Caution: "PWR" is the abbreviation for "Power". Cabling Use the four twisted-pair, category 5e, or the above cabling for RJ-45 port connections. The total length from the device A through the INJECTOR to the device B must not exceed 100 meters. -
Page 10: Grounding Note
Step 2 Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Figure 2.6. Figure 2.6: Power Terminal Block Caution: Only use copper conductors, 60/75°C, tighten to 5 in-lbs. The wire gauge for the terminal block should range between 18~20 AWG. Grounding Note Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). -
Page 11: Mounting Installation
Mounting Installation DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial PoE Injector from the factory. If the DIN-Rail is not on the industrial PoE Injector, please see Figure 3.1 to learn how to install the DIN-Rail on the injector. Figure 3.1: The Rear Side of the Injector and DIN-Rail Bracket Follow the steps below to learn how to hang the industrial PoE Injector. - Page 12 Figure 3.2: Insert the Injector on the DIN-Rail Step 4 Lightly pull down the bracket on to the rail as shown below in Figure 3.3. Figure 3.3: Stable the Injector on DIN-Rail Step 5 Check if the bracket is mounted tightly on the rail. Step 6 To remove the industrial PoE Injector from the rail, do the opposite from the above steps.
-
Page 13: Wall Mounting
Wall Mounting Follow the steps below to mount the industrial PoE Injector using the wall mounting bracket as shown below in Figure 3.4. Caution: “Wall” means industrial control panel wall. Step 1 Remove the DIN-Rail bracket from the industrial PoE Injector by loosening the screws. Step 2 Place the wall mounting brackets on the top and bottom of the industrial PoE Injector. - Page 14 Below, in Figure 3.5 are the dimensions of the wall mounting bracket. Figure 3.5: Wall Mounting Bracket Dimensions...
-
Page 15: Hardware Installation
Hardware Installation Installation Steps This section will explain how to install GINJ-0201-AT-24 series. Caution: This device is intended for use indoor and at altitudes up to 2000 meters. Caution: The device is intended to be installed in an industrial control enclosure and panel... -
Page 16: Maintenance And Service
Maintenance and Service If the device requires servicing of any kind, the user is required to disconnect and remove it from its mounting. The initial installation should be done in a way that makes this as convenient as possible. ... -
Page 17: Trouble Shooting
If the power indicator LED does not turn on when the power cord is plugged in, the user may have a problem with the power cord. Check for loose power connections, power losses or surges at the power outlet. Please contact LEONTON for technical support service, if the problem still cannot be resolved.
