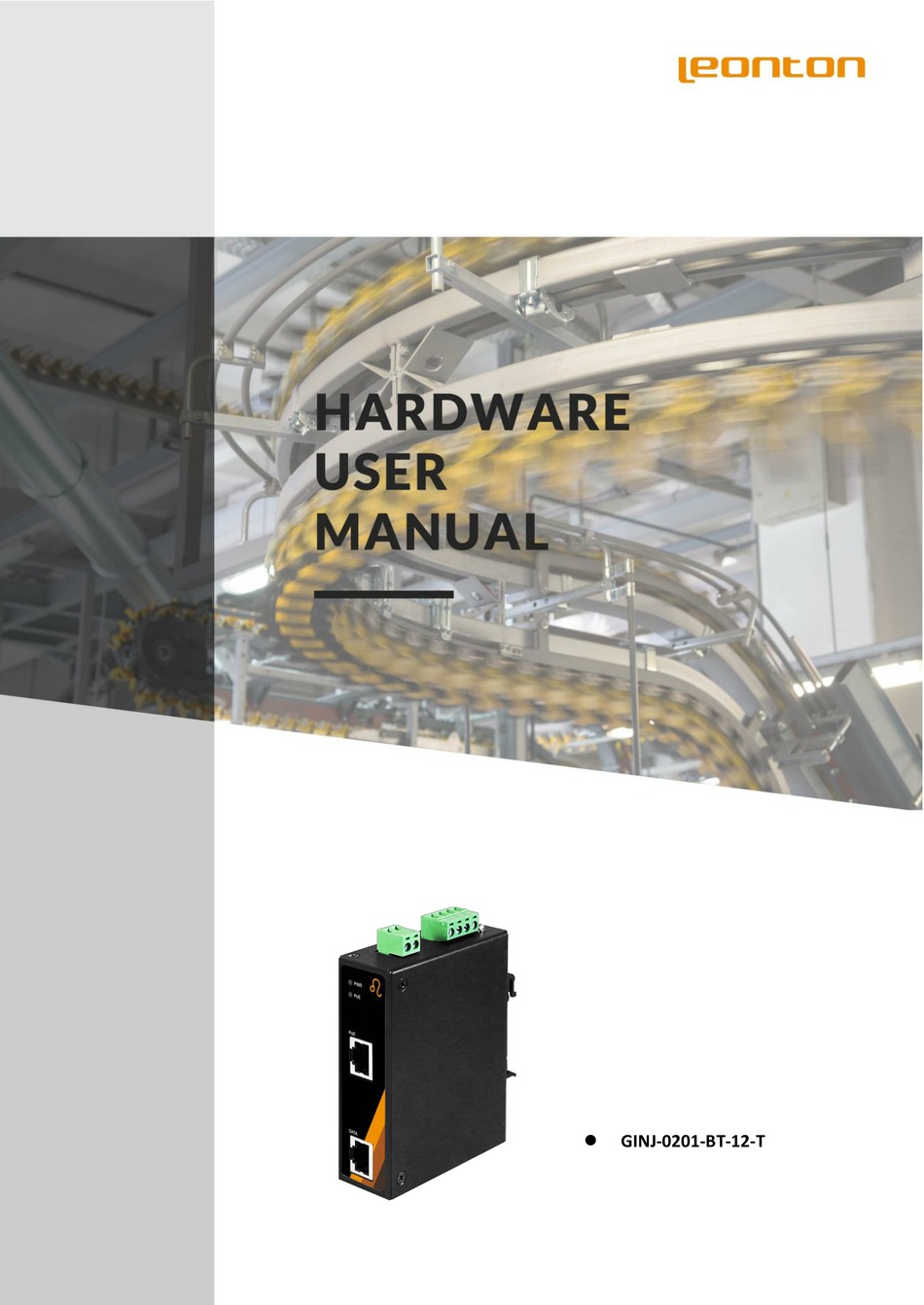

- Page 1 ⚫ GINJ-0201-BT-12-T...
- Page 2 Disclaimer Leonton Technologies, Co. Ltd. provides this manual without warranty of any kind, expressed or implied, including but not limited to the implied warranties of merchantability and fitness for a particular purpose.
- Page 3 Ceci est un produit de classe A. Dans un environnement domestique, ce produit peut être utilisé en présence d'interférences radio. This document is the current official release manual. Please check our website (www.leonton.com) for any updated manual or contact us by e-mail (sales@leonton.com).
-
Page 4: Table Of Contents
CONTENT OVERVIEW ............................1 Key Features ................................1 Package Contents ..............................1 Safety Precaution ..............................1 HARDWARE DESCRIPTION ......................2 Physical Dimensions ............................... 2 Front Panel ................................3 Top View ..................................3 LED Indicators ................................4 Relay Contact Alarm Warning ..........................4 Ethernet Ports ................................ -
Page 5: Overview
Support short-circuit and current-overloading protection for PoE application ⚫ Provided power booster technologies for low voltage power inputs Power Input ⚫ GINJ-0201-BT-12-T: Dual 9-55VDC redundant power inputs ⚫ 1*4-pin removable terminal block ⚫ Max. current 8A (Included PoE power budget) ⚫... -
Page 6: Package Contents
Package Contents ⚫ 1 - GINJ-0201-BT-12-T - Unit weight: 0.36 kg (0.79 lbs.), Shipping weight: 0.508 kg (1.12 lbs.) ⚫ 2 - Wall mounting brackets and screws ⚫ 1 - Quick installation guide Safety Precaution Attention If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. -
Page 7: Hardware Description
HARDWARE DESCRIPTION Physical Dimensions Figure 2.1, below, shows the physical dimensions of GINJ-0201-BT-12 Series. (W x H x D) is 30mm x 95mm x 75mm Figure 2.1: Physical Dimensions... -
Page 8: Front Panel
Front Panel The front panel of the GINJ-0201-BT-12 Series Industrial Gigabit BT-PoE Injector is shown below in Figure 2.2. 2+4pin removal terminal block LED indicator 10/100/1000Base-T(X) BT-PoE Out 10/100/1000Base-T(X) for LAN-In Figure 2.2: The Front Panel Top View Figure 2.3, below shows the top panel of the GINJ-0201-BT-12 Series Industrial Gigabit BT-PoE Injector that is equipped with one 2-pin terminal block for relay contact alarm and 4-pin terminal block connectors for dual DC power inputs (9-55VDC). -
Page 9: Led Indicators
LED Indicators There are LED light indicators located on the front panel of the industrial injector that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. Color Description Green... -
Page 10: Ethernet Ports
Ethernet Ports RJ-45 Ports (Auto MDI/MDIX) The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX or 1000Base-T devices connections. Auto MDI/MDIX means that the unit can connect to another one or workstation without changing the straight-through or crossover cabling. See the figures as below for straight-through and crossover cabling schematics. -
Page 11: Cabling
Cabling Use the four twisted-pair, category 5e, or the above cabling for RJ-45 port connections. The total length from the device A through the injector to the device B must not exceed 100 meters. Wiring the Power Inputs Caution: Please follow the below steps to insert the power wire. Attention: Veuillez suivre les étapes ci-dessous pour insérer le câble d'alimentation. -
Page 12: Wiring The Fault Alarm Contact
Wiring the Fault Alarm Contact The fault alarm contact is on the 2-pin terminal block connector as the picture shown below. By inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch only) and form a normally open circuit. -
Page 13: Mounting Installation
MOUNTING INSTALLATION DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet injector from the factory. If the DIN-Rail is not on the unit, please see Figure 3.1 to learn how to install the DIN-Rail on it. Figure 3.1: The Rear Side of the Injector and Wall Mounting Bracket... - Page 14 Follow the steps below to learn how to hang the industrial Ethernet injector. Step 1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet injector. Step 2. To remove the DIN-Rail bracket, do the opposite from Step 1. Step 3.
-
Page 15: Wall Mounting
Wall Mounting Follow the steps below to mount the industrial Ethernet injector using the wall mounting bracket as shown below in Figure 3.4. Step 1. Remove the DIN-Rail bracket from the industrial Ethernet injector by loosening the screws. Step 2. Place the wall mounting brackets on the top and bottom of the industrial Ethernet injector. -
Page 16: Hardware Installation
HARDWARE INSTALLATION Installation Steps This section will explain how to install GINJ-0201-BT-12 Series. Installation Steps Step 1. Unpack the industrial Injector from the original packing box. Step 2. Check if the DIN-Rail bracket is screwed on the industrial Injector. • If the DIN-Rail is not screwed on the industrial Injector, please refer to the DIN-Rail Mounting section for DIN-Rail installation. - Page 17 Caution: If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. Attention: Si l'équipement est utilisé d'une manière non spécifiée par le fabricant, la protection fournie par l'équipement peut être altérée. Caution: The installation that the safety to any system incorporating the equipment is the responsibility of the assembler of the system.
-
Page 18: Trouble Shooting
If the power indicator LED does not turn on when the power cord is plugged in, the user may have a problem with the power cord. Check for loose power connections, power losses or surges at the power outlet. Please contact Leonton for technical support service, if the problem still cannot be resolved. ◆ ●...
