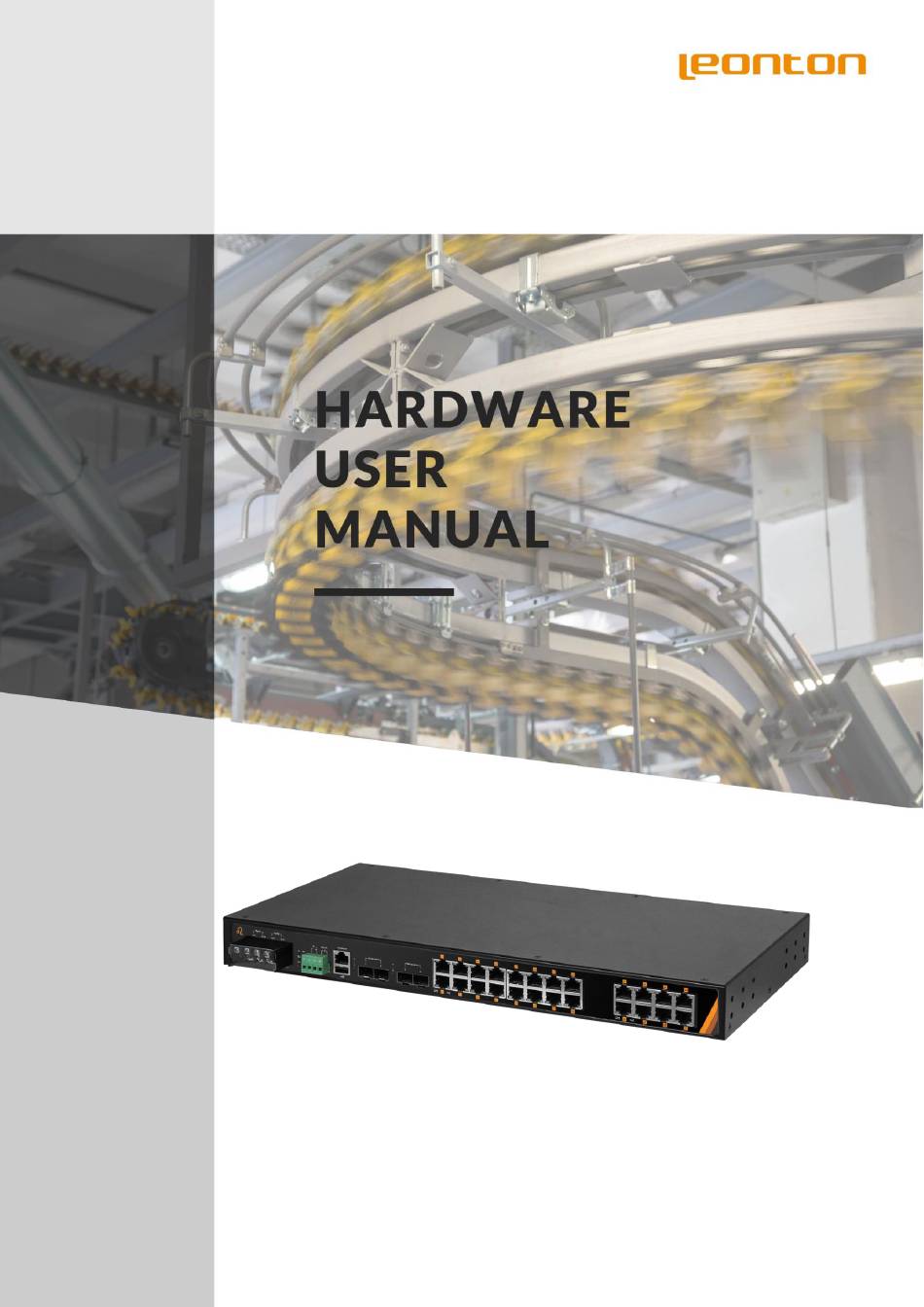

- Page 1 ⚫ RPG5-2804-10GSFP-24 ⚫ RPG5-2804-10GSFP-24-T...
- Page 2 Disclaimer Leonton Technologies, Co. Ltd. provides this manual without warranty of any kind, expressed or implied, including but not limited to the implied warranties of merchantability and fitness for a particular purpose.
- Page 3 Ceci est un produit de classe A. Dans un environnement domestique, ce produit peut être utilisé en présence d'interférences radio. This document is the current official release manual. Please check our website (www.leonton.com) for any updated manual or contact us by e-mail (sales@leonton.com).
-
Page 4: Table Of Contents
CONTENT OVERVIEW ........................... 5 Key Features ................................. 5 Package Contents ............................... 6 Safety Precaution ................................ 6 HARDWARE DESCRIPTION ...................... 7 Physical Dimensions ..............................7 Front Panel ..................................8 LED Indicators ................................9 Reset Button ................................11 Ethernet Ports ................................12 Cabling .................................. -
Page 5: Overview
OVERVIEW This series is rated IP30 and Rack-Mounting installation. Each unit of this Industrial Managed Gigabit Ethernet switch series has 24*port 10/100/1000BASE-T Gigabit Ethernet with IEEE 802.3at compliant PoE, (30W/port), and 4*port 1G/2.5G/10GbE SFP+ slots, suitable for applications that require high bandwidth and long distance communication. -
Page 6: Package Contents
⚫ Standalone Installation Package Contents ⚫ 1 – RPG5-2804-10GSFP-24(-T) 4.39 kg (7.45 lb), Shipping weight: 5.1 kg (11.24 lb) ⚫ 2 – Rack-mounting brackets and screws ⚫ 1 – Quick installation guide ⚫ 1 – RJ45 to DB9 Serial Console cable... -
Page 7: Hardware Description
HARDWARE DESCRIPTION Physical Dimensions Figure 2.1, below, shows the physical dimensions of RPG5-2804-10GSFP-24 series (W x H x D) is 440mm x 44mm x 215mm Figure 2.1: Physical Dimensions... -
Page 8: Front Panel
LEDs for Power1, Power2, Status, P/L, Ring, Master Figure 2.2: The Front Panel Rear Panel Figure 2.3, below, shows the rear panel of the RPG5-2804-10GSFP-24 series switches that is equipped with Reset Button. Reset Button Figure 2.3: Rear Panel View... -
Page 9: Led Indicators
LED Indicators There are LED light indicators located on the front panel of the industrial switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. Table 2.1: LED Indicators Color Description... - Page 10 Connected to network, 1000Mbps Green Flashing Networking is active Not connected to network GE - SPD (Port 5-28 Connected to network, 10/100Mbps Amber Copper) Flashing Networking is active Not connected to network Supplying PoE at (30w)/af power to the Green powered-device PoE Port (Port 5-28...
-
Page 11: Reset Button
Reset Button There is a “reset” button located on the top panel of the industrial Ethernet switch that helps users to reboot, restore default, or save running configurations by pressing the button for different seconds. Please refer to Table 2.2 for the timing and function. Seconds Function Reboot:... -
Page 12: Ethernet Ports
Ethernet Ports RJ-45 Ports (Auto MDI/MDIX) The RJ-45 ports are auto-sensing for 10BASE-T, 100BASE-TX or 1000BASE-T devices connections. Auto MDI/MDIX means that the switch can connect to another switch or workstation without changing the straight-through or crossover cabling. See the figures as below for straight-through and crossover cabling schematics. -
Page 13: Cabling
Cabling Use the four twisted-pair, category 5e, or the above cabling for RJ-45 port connections. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long. The small form-factor pluggable (SFP) is a compact optical transceiver used in optical communications for both telecommunication and data communication applications. - Page 14 Step 2 Insert the fiber cable of the LC connector into the transceiver as shown below in Figure 2.6. Figure 2.6: LC Connector to the Transceiver To remove the LC connector from the transceiver, please follow the steps shown below: Step 1 Press the upper side of the LC connector from the transceiver and pull it out to release as shown below in Figure 2.7...
-
Page 15: Wiring The Power Inputs
Wiring the Power Inputs Caution: Please follow the below steps to insert the power wire. Attention: Veuillez suivre les étapes ci-dessous pour insérer le câble d'alimentation. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on Step 1. -
Page 16: Relay Contact And Digital Input
Relay Contact and Digital Input Relay Contact The relay contact is in one of the terminal block connectors as the picture shows below in Figure 2.10. By inserting the wires, it will detect the fault status including power failure or DI Event, and port link failure (managed industrial switch only) and form a normally open circuit. -
Page 17: Grounding Note
Grounding Note Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. The grounding screw symbol is shown blow in Figure 2.11. Figure 2.11: Grounding screw symbol Caution: Using a shielded cable achieves better electromagnetic compatibility. -
Page 18: Mounting Installation
MOUNTING INSTALLATION Rack Mounting This switch can be mounted in a standard 19-inch rack with rack-mount kits. Please follow the instruction shown below in Figure 3.1 to install rack-mounting switch. Locate one plate to align with the holes on one side of the switch and secure it with the plate screws and then attach the remaining plate to the other side of the switch. -
Page 19: Hardware Installation
HARDWARE INSTALLATION Installation Steps This section will explain how to install RPG5-2804-10GSFP-24 series. Installation Steps Step 1. Unpack the industrial switch from the original packing box. Step 2. If the rack-mount bracket is not screwed on the industrial switch, please refer to the Rack Mounting section for installation. - Page 20 Caution: If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. Attention: Si l'équipement est utilisé d'une manière non spécifiée par le fabricant, la protection fournie par l'équipement peut être altérée. Caution: The installation that the safety to any system incorporating the equipment is the responsibility of the assembler of the system.
-
Page 21: Trouble Shooting
If the power indicator LED does not turn on when the power cord is plugged in, the user may have a problem with the power cord. Check for loose power connections, power losses or surges at the power outlet. Please contact Leonton for technical support service, if the problem still cannot be resolved. ◆ ●...
