Summary of Contents for Leonton CEG5-0602-SFP

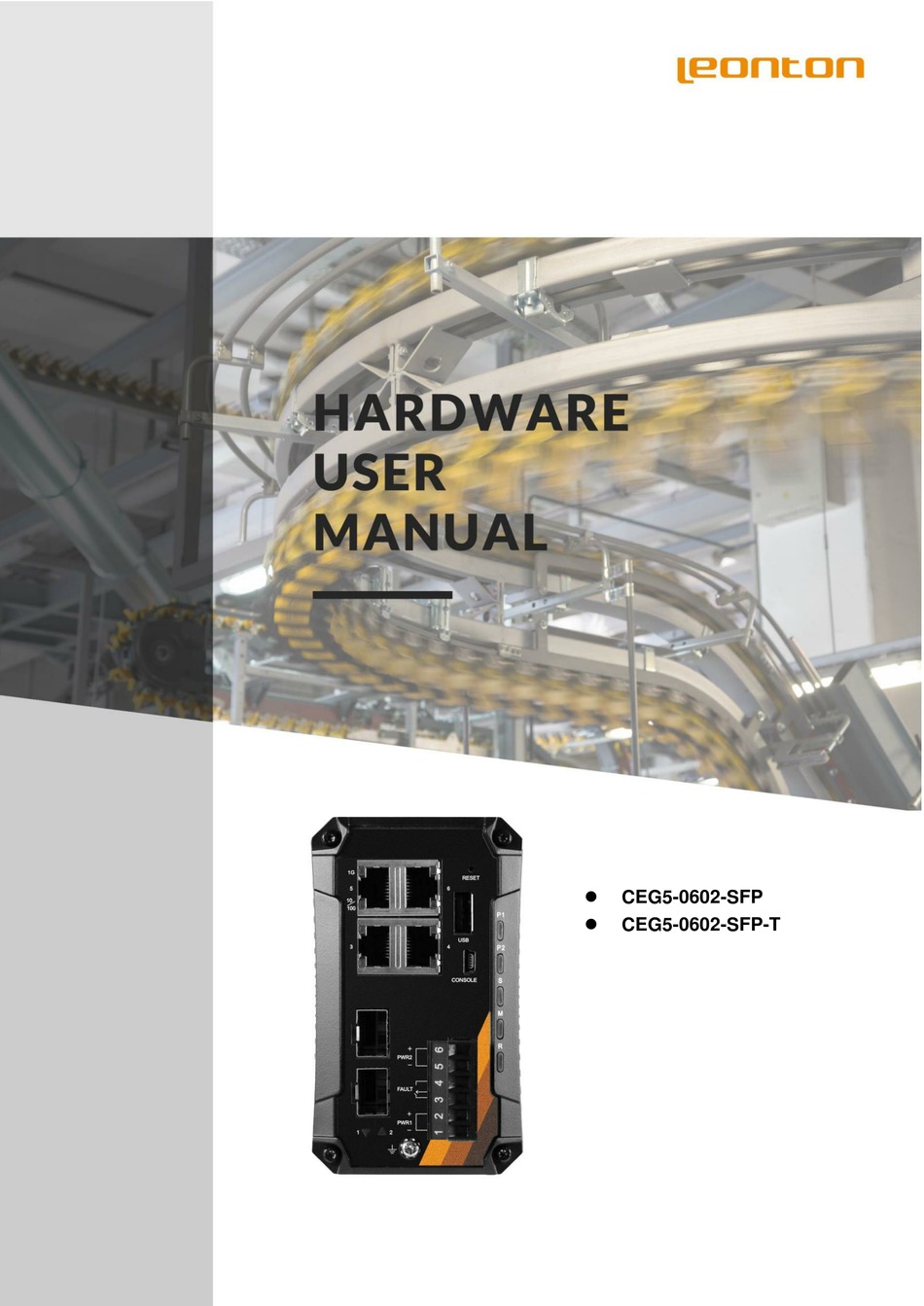

- Page 1 ⚫ CEG5-0602-SFP ⚫ CEG5-0602-SFP-T...
- Page 2 Disclaimer Leonton Technologies, Co. Ltd. provides this manual without warranty of any kind, expressed or implied, including but not limited to the implied warranties of merchantability and fitness for a particular purpose.
- Page 3 Ceci est un produit de classe A. Dans un environnement domestique, ce produit peut être utilisé en présence d'interférences radio. This document is the current official release manual. Please check our website (www.leonton.com) for any updated manual or contact us by e-mail (sales@leonton.com).
-
Page 4: Table Of Contents
CONTENT OVERVIEW ........................... 1 Key Features ................................. 1 Package Contents ............................... 2 Safety Precaution ................................ 2 HARDWARE DESCRIPTION ...................... 3 Physical Dimensions ..............................3 Front Panel ..................................4 Top View ..................................4 LED Indicators ................................5 Ethernet Ports ................................7 Cabling ................................... -
Page 5: Overview
OVERVIEW This series is rated IP30 and installation by DIN Rail. Each unit of this industrial gigabit managed PoE compact size design for short installation space provided 4*10/100/1000Base-Tx convert to 2 dual-rate (100/1000) SFP slot, suitable for Ethernet and SFP conversion applications. In order to prevent unregulated voltage, this series provides high EFT and ESD protection. -
Page 6: Package Contents
Package Contents ⚫ 1 - CEG5-0602-SFP(-T) - Unit weight: 0.882 kg (1.94 lb), Shipping weight: 1.158 kg (2.55 lb) ⚫ 2 - Wall mounting brackets and screws ⚫ 1 - Quick installation guide ⚫ 1 - Mini-USB B type male to DB9 RS-232 female cable... -
Page 7: Hardware Description
HARDWARE DESCRIPTION Physical Dimensions Figure 2.1, below, shows the physical dimensions of CEG5-0602-SFP series. (W x H x D) is 64.9mm x 110mm x 89.8mm Figure 2.1: Physical Dimensions... -
Page 8: Front Panel
Figure 2.2: The Front Panel Top View Figure 2.3, below, shows the top panel of the CEG5-0602-SFP series switches that is equipped with one 4- pin removal terminal block connector for dual DC power inputs (12-48VDC). Figure 2.3: Top Panel View... -
Page 9: Led Indicators
LED Indicators There are LED light indicators located on the front panel of the industrial switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. Table 2.1: LED Indicators Color Description... - Page 10 Link/Act/Speed Not connected to network (Port1-2) Connected to network, 100Mbps Amber Blinking Networking is active, 100Mbps Not connected to network Connected to network, 1000Mbps Green Blinking Networking is active Copper Port Not connected to network Link/ACT/Speed Connected to network, 10/100Mbps Green (Port3- 6) Blinking...
-
Page 11: Ethernet Ports
Ethernet Ports RJ-45 Ports (Auto MDI/MDIX) The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX or 1000Base-T devices connections. Auto MDI/MDIX means that the switch can connect to another switch or workstation without changing the straight-through or crossover cabling. See the figures as below for straight-through and crossover cabling schematics. -
Page 12: Cabling
Cabling Use the four twisted-pair, category 5e, or the above cabling for RJ-45 port connections. The cable between the Switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long. The small form-factor pluggable (SFP) is a compact optical transceiver used in optical communications for both telecommunication and data communication applications. - Page 13 Insert the fiber cable of the LC connector into the transceiver as shown below in Figure 2.6. Step 2. Figure 2.6: LC Connector to the Transceiver To remove the LC connector from the transceiver, please follow the steps shown below: Press the upper side of the LC connector from the transceiver and pull it out to release as shown Step 1.
-
Page 14: Wiring The Power Inputs
Wiring the Power Inputs Caution: Please follow the below steps to insert the power wire. Attention: Veuillez suivre les étapes ci-dessous pour insérer le câble d'alimentation. Step 1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block connector as shown below in Figure 2.9. -
Page 15: Wiring The Fault Alarm Contact
Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.11. By inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch only) and form a normally open circuit. -
Page 16: Hardware Installation
HARDWARE INSTALLATION Installation Steps This section will explain how to install CBG5-0602-SFP series. Installation Steps Unpack the industrial Switch from the original packing box. Step 1. Check if the DIN-Rail bracket is screwed on the industrial Switch. Step 2. • If the DIN-Rail is not screwed on the industrial Switch, please refer to the DIN-Rail Mounting section for DIN-Rail installation. - Page 17 Caution: If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. Attention: Si l'équipement est utilisé d'une manière non spécifiée par le fabricant, la protection fournie par l'équipement peut être altérée. Caution: The installation that the safety to any system incorporating the equipment is the responsibility of the assembler of the system.
-
Page 18: Trouble Shooting
Check for loose power connections, power losses or surges at the power outlet. ◆ Please contact Leonton for technical support service, if the problem still cannot be resolved. ● If the industrial Switch LED indicators are normal and the connected cables are correct but the packets still cannot transmit, please check the system’s Ethernet devices’...
