NEFL36CFH / NEFL42CFH / NEFL50CFH / NEFL60CFH / NEFL72CFH / NEFL100CFH
SAFETY INFORMATION
WARNING
!
FIRE OR EXPLOSION HAZARD
If the information in these instructions are
not followed exactly, a fi re or explosion may
result causing property damage, personal
injury, or loss of life.
- Do not store or use gasoline or other
fl ammable vapors and liquids in the vicinity of
this or any other appliance.
INSTALLER:
Leave this manual with the appliance
CONSUMER:
Retain this manual for future reference
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030
$10.00
MULTIPLE PRODUCT CODES (LEAVE BLANK IF N/A)
Entice 36 / 42 / 50 / 60 / 72 / 100 Series
WARNING - KEEP BATTERIES OUT OF REACH OF CHILDREN
- SWALLOWING MAY LEAD TO SERIOUS INJURY IN AS LITTLE AS 2 HOURS
OR DEATH, DUE TO CHEMICAL BURNS AND POTENTIAL PERFORATION OF
THE OESOPHAGUS.
- IF YOU SUSPECT YOUR CHILD HAS SWALLOWED OR INSERTED A
BUTTON BATTERY, IMMEDIATELY SEEK URGENT MEDICAL ASSISTANCE.
- EXAMINE DEVICES AND MAKE SURE THE BATTERY COMPARTMENT IS
CORRECTLY SECURED, E.G. THAT THE SCREW OR OTHER MECHANICAL
FASTENER IS TIGHTENED. DO NOT USE IF COMPARTMENT IS NOT
SECURE.
- DISPOSE OF USED BUTTON BATTERIES IMMEDIATELY AND SAFELY. FLAT
BATTERIES CAN STILL BE DANGEROUS.
- TELL OTHERS ABOUT THE RISK ASSOCIATED WITH BUTTON BATTERIES
AND HOW TO KEEP THEIR CHILDREN SAFE.
Phone 1 (866) 820-8686 • www.napoleon.com • hearth@napoleon.com
INSTALLATION AND
ADD MANUAL TITLE
OPERATION MANUAL
WARNING!
ADD BUTTON BATTERY WARNING IF APPLICABLE
This appliance has a remote that requires button
batteries that are hazardous to young children.
CERTIFIED TO THE CANADIAN AND AMERICAN NATIONAL STANDARDS:
CERTIFIED TO THE CANADIAN AND AMERICAN NATIONAL STANDARDS:
CSA /
INTERTEK
LOGO
BARCODE LABEL ON THE OWNER'S MANUAL"
Product Name / Code
(MUST use title from Price Book)

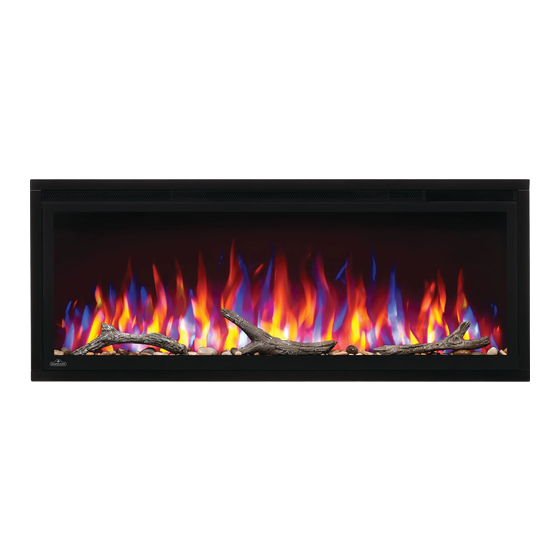

(NEFL50CFH Illustrated)
(IF MULTIPLE, _____ ILLUSTRATED)
ADD PRODUCT IMAGE
IF INSTALLATION + OPERATION, ADD SERIAL
NUMBER LABEL HERE
IF SEPARATE MANUALS, ADD "PLACE
ENGLISH
FRENCH PG. 39
ENFANTS
- L'INGESTION P
HEURES OU LA
RATION POTENT
- SI VOUS PENS
FOR INDOOR USE ONLY
BOUTON, CONS
- EXAMINEZ LES
BATTERIE EST B
CSA 22.2 NO. 46 / UL 1278
CSA 22.2 NO. 46 / UL 2021
EST SERRÉE. N
- ÉLIMINER LES
SÉCURITÉ. LES
- RENSEIGNEZ-
FAÇON DE GAR
W415-2782 / B / 07.20.20
A
AVERT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Entice 36 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Napoleon Entice 36 Series

  • Page 1 INTERTEK LOGO BARCODE LABEL ON THE OWNER’S MANUAL” Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030 Phone 1 (866) 820-8686 • www.napoleon.com • hearth@napoleon.com W415-2782 / B / 07.20.20...
  • Page 2 safety information WARNING • If equipped with a heater, this appliance can be hot when operated and can cause severe burns if contacted. • Do not operate appliance before reading and understanding operating instructions. Failure to operate appliance according to operating instructions could cause fi re or injury. •...
  • Page 3 • It is normal for your electric appliance to produce noise, especially when installed in a quiet space such as a bedroom. safety information WARNING • To prevent a possible fi re, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a carpet, where openings may become blocked.
  • Page 4: Table Of Contents

    table of contents general information dimensions rating plate information label location listing approvals general instructions unpacking and testing the appliance hardware list appliance placement grounding the appliance installation overview installation minimum clearance to combustibles framing wall mount installation recessed installation 3.4.1 partially recessed installation 3.4.2 fully recessed installation electrical information...
  • Page 5: General Information

    model designation 1.0 general information dimensions W415-2782 / B / 07.20.20...
  • Page 6: Rating Plate Information

    DÉSIGNÉ EN AMÉRIQUE DU NORD BY WOLF STEEL LTD. PAR WOLF STEEL LTÉE. MADE IN CHINA FABRIQUÉ EN CHINE WOLF STEEL LTD. 24 NAPOLEON ROAD, NEFLXXCFH SERIAL NUMBER/NO. DE SÉRIE: BARRIE, ON, L4M 0G8 CANADA W385-4523 note: The rating plate must remain with the appliance at all times. It must not be removed.
  • Page 7: Listing Approvals

    general information listing approvals This appliance has been tested in accordance with the CSA Standards for fixed and location-dedicated electric room appliances in the United States and Canada. If you need assistance during installation, please contact your local dealer. note: This appliance must be electrically wired and grounded in accordance with local codes or, in the absence of local codes, with the latest edition of the National Electrical Code ANSI/NFPA 70 in the United States or the Canadian Electrical Code CSA C22.1 in Canada.
  • Page 8: Unpacking And Testing The Appliance

    general information unpacking and testing the appliance Carefully remove the appliance from the box and remove the support brackets. Prior to installing the appliance, remove all packaging material and test to make sure the appliance operates properly by plugging the power supply cord into a conveniently located 120V, 15 amp minimum grounded outlet.
  • Page 9: Appliance Placement

    2.0 appliance placement WARNING • Due to high temperatures, this electric appliance should be located out of traffic. Keep combustible materials such as furniture, pillows, bedding, papers, clothes, curtains, and similar items at least 36” from the front of the appliance.
  • Page 10: Installation Overview

    appliance placement installation overview Your appliance is capable of three unique installation configurations: wall-mounted, partially recessed into the wall, and fully recessed into the wall. See below for details: Side View Front View Top Trim Wall-Mounted Installation Side Panel • Mounted to the wall •...
  • Page 11: Installation

    3.0 installation WARNING • Risk of fi re! The power cord must not be pinched against a sharp edge. Secure cord to avoid tripping or snagging to reduce the risk of fi re, electric shock, or personal injury. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar items.
  • Page 12: Framing

    installation framing Finishing Material 16" 16" (406mm) (406mm) Finishing Material (Non-Load 4" (102mm) minimum Bearing) (partially recessed) 6" (152mm) minimum * (fully recessed) MODEL NO. NEFL36CFH 35 1/8” (892mm) 40 7/8” (1038mm) NEFL42CFH NEFL50CFH 48 7/8” (1241mm) 58 7/8” (1495mm) NEFL60CFH NEFL72CFH 70 7/8”...
  • Page 13: Wall Mount Installation

    installation wall mount installation Due to the many different materials used on different walls, it is highly recommended that you consult your local builder before you install this appliance on the wall. Select a location that is not prone to moisture and is located at least 36” (91.4cm) away from combustible materials such as curtains, drapes, furniture, bedding, paper, etc.
  • Page 14 installation 10 1/8” (257mm) 3 3/8” 4 13/16” (85mm) (123mm) Centre 10 1/8” (257mm) 3 3/8” 4 13/16” (85mm) (123mm) NEFL100CFH bracket illustrated. Installation may vary by appliance size. Centre 10 1/8” (257mm) 4 13/16” (123mm) Centre 10 1/8” (257mm) 4 13/16”...
  • Page 15 installation With the wall mounting bracket installed, have two people lift the appliance up and insert the hooks on the bracket into the slots on the back of the appliance (Fig. 3-3). For illustrative purposes Wall only. Installation may vary by model size.
  • Page 16: Recessed Installation

    installation recessed installation Due to the many different materials used on different walls, it is highly recommended that you consult your local builder before you install this appliance on the wall. note: It is recommended the walls of the appliance enclosure be finished (i.e. drywall) to avoid exposed insulation or vapour barrier coming in contact with the appliance.
  • Page 17 Wall installation Wall Slotted Hole Framing Bracket Slotted Hole Reverse view of appliance in place (framing hidden Fig. 3-9 for clarity) Insert the appliance into the rough framing, and make sure the framing brackets fit into the slotted holes of the side trim (Fig. 3-9). Secure two screws (supplied) through the two slot holes on each side of the appliance with the framing brackets (Fig.
  • Page 18: Fully Recessed Installation

    installation 3.4.2 fully recessed installation Remove side trims and top trims (Fig. 3-11). Remove the power cord and complete hardwiring (see “hardwiring installation” section). For illustrative purposes only. Installation may vary by model size. Fig. 3-11 Remove side holding brackets by removing the screws from inside the appliance (Fig. 3-12). Reinstall the screws after removing from outer trim, Insert the appliance into the rough framing.
  • Page 19: Electrical Information

    4.0 electrical information hard-wiring installation WARNING • Turn off the appliance completely and let it cool down before servicing. Only a qualified service person should service and repair this electric appliance. Hard-Wiring Connection If it is necessary to hard-wire this appliance, a qualified electrician must remove the cord connection and wire the appliance directly to the household wiring.
  • Page 20: Wiring Diagram (Nefl36Cfh)

    electrical information wiring diagram (NEFL36CFH) W415-2782 / B / 07.20.20...
  • Page 21: Wiring Diagram (Nefl42Cfh)

    electrical information wiring diagram (NEFL42CFH) W415-2782 / B / 07.20.20...
  • Page 22: Wiring Diagram (Nefl50Cfh)

    electrical information wiring diagram (NEFL50CFH) W415-2782 / B / 07.20.20...
  • Page 23: Wiring Diagram (Nefl60Cfh)

    electrical information wiring diagram (NEFL60CFH) W415-2782 / B / 07.20.20...
  • Page 24: Wiring Diagram (Nefl72Cfh)

    electrical information wiring diagram (NEFL72CFH) W415-2782 / B / 07.20.20...
  • Page 25: Wiring Diagram (Nefl100Cfh)

    electrical information wiring diagram (NEFL100CFH) W415-2782 / B / 07.20.20...
  • Page 26: Finishing

    5.0 finishing WARNING • Power supply service must be completed prior to finishing to avoid reconstruction. • Heat vents and air openings cannot be covered in any circumstances. front glass removal / installation note: It is recommended to have two people remove and install the front glass. Remove the two screws holding the glass retaining brackets in place (Fig.
  • Page 27: Operating Instructions

    6.0 operating instructions Once the appliance has been plugged into a grounded electrical outlet or hard-wired to a dedicated 120V power supply, it is ready to operate. note: Ensure the house circuit breakers for the power supply are turned on. In the event of a power failure, the appliance will lose its memory function and will reset to factory mode when the power returns.
  • Page 28 operating instructions Turns appliance on and off. Power Controls blue flame brightness. Settings: BF4 - Brightest flame Blue Flame BF3 - Bright flame BF2 - Dim flame BF1 - Dimmest flame BF0 - Flame off Controls orange flame brightness. Settings: OF4 - Brightest flame Orange Flame OF3 - Bright flame...
  • Page 29 operating instructions Turns the heater and blower on/off. Settings: H-0 - Heater and blower off FAN - Blower on H-1 - Low heat H-2 - High heat LOC - Lock-out of heater and thermostat Heater NOTE: Press and hold the heater button for 5 seconds to lock / unlock the heater and thermostat.
  • Page 30: Maintenance

    7.0 maintenance WARNING WARNING • Always disconnect the power and allow the electric appliance to cool before performing any cleaning, maintenance or relocation of this electric appliance. Turn controls to OFF and remove plug from outlet or turn off • Always disconnect the power and allow the electric appliance to cool before performing any cleaning, the house circuit breaker to electric appliance receptacle.
  • Page 31: Replacement Parts

    8.0 replacement parts WARNING • Failure to position the parts in accordance with this manual or failure to use only parts specifi cally approved with this appliance may result in property damage or personal injury. Contact your dealer for questions concerning prices and policies on replacement parts. Normally, all parts can be ordered through your Authorized dealer / distributor.
  • Page 32: Nefl36/42/50/60/72/100Cfh Overview

    replacement parts W415-2782 / B / 07.20.20...
  • Page 33 replacement parts Part Number Ref. Description Stocked NEFL36CFH NEFL42CFH NEFL50CFH NEFL60CFH NEFL72CFH NEFL100CFH W300-0318- W300-0319- W300-0320- W300-0321- W300-0322- W300-0323- Front Glass Plastic Panel - W565-0330- W565-0331- W565-0332- W565-0333- W565-0334- W565-0335- Flame Step Motor W435-0090-SER Blower and Heater W010-4732-SER Assembly Plastic Strip - W497-1611- W497-1612- W497-1613-...
  • Page 34: Troubleshooting

    9.0 troubleshooting WARNING • Turn off the appliance completely and let cool before servicing. Only a qualified service person should service and repair this electric appliance. symptom problem solution Appliance will not Appliance is not plugged into an Check plug, and plug in the appliance if necessary. come on when electrical outlet.
  • Page 35 troubleshooting symptom problem solution No difference from Hard wire connections are not See “hard-wiring installation” section. Ember bed is Brightness not selected. See “operation” section. H1 to H2. correct. not glowing or Ember LED issue. Inspect the ember bed LEDs and replace, if necessary. dimming.
  • Page 36: Warranty

    Notwithstanding any provisions contained in the Premium Warranty, Napoleon responsibility under this warranty is defi ned as above, and it shall not in any event extend to any incidental, consequential, or indirect damages.
  • Page 37: Notes

    NAPOLEON CELEBRATING OVER 40 YEARS OF HOME COMFORT PRODUCTS 7200, Route Transcanadienne, Montréal, Québec H4T 1A3 24 Napoleon Road, Barrie, Ontario, Canada L4M 0G8 214 Bayview Drive, Barrie, Ontario, Canada L4N 4Y8 103 Miller Drive, Crittenden, Kentucky, USA 41030 De Riemsdijk 22, 4004 LC Tiel, The Netherlands Phone: 1-866-820-8686 napoleon.com...
