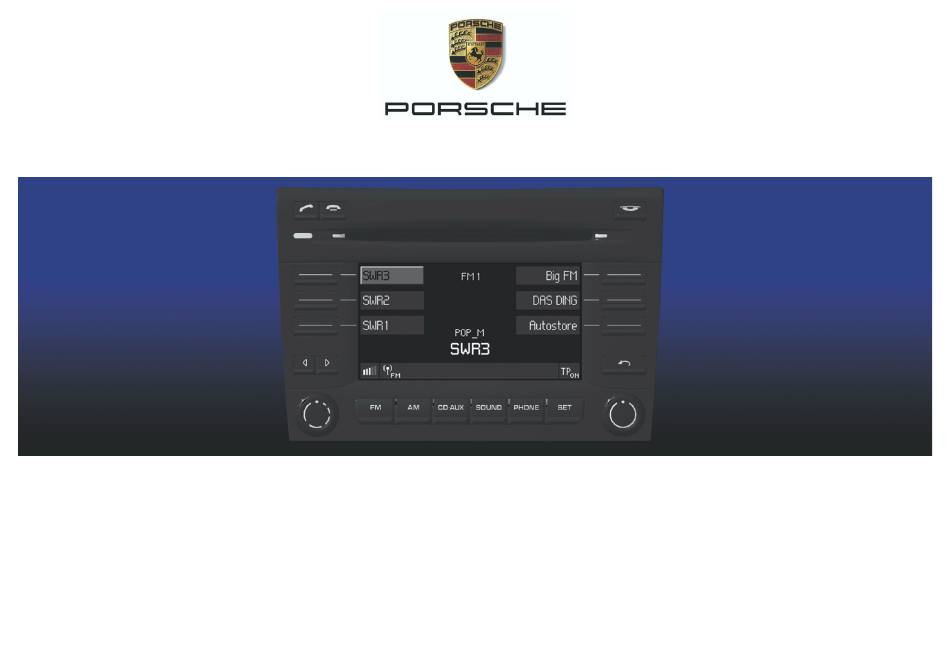

- Page 1 CDR30 Driver`s Manual...
- Page 2 Dr. Ing. h.c. F. Porsche AG. ® The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. Other trademarks and trade names are those of their respective owners. © Dr. Ing. h.c. F. Porsche AG Porscheplatz 1 D-70435 Stuttgart, Germany...
-
Page 3: Table Of Contents
Table of contents General instructions ......3 CD mode ........... 19 Starting CD mode .........20 Contols ..........4 Single CD mode..........20 CD changer mode (optional) ......20 User interface........5 Playback functions ........22 SoftKeys ............5 Track list............23 Display............5 AUX (optional)........23 Using the menus..........7 Connecting external sources......24 General operation ........ -
Page 4: General Instructions
Theft protection vehicle e.g. horns, sirens and alarms . transmitter. The CDR30 cannot be switched on if the theft f Please refer to Section „CONNECTING This equipment complies with FCC/IC radiation warning system on the vehicle is active. -
Page 5: Contols
'Hang up' button SoftKeys Station search/SCAN/ Previous track Station search/SCAN/ Next track 6 Volume control - ON/OFF switch 7 Buttons for CDR30 main functions: FM radio mode AM radio mode CD mode/AUX mode Sound settings Telephone mode (optional) Settings/System settings... -
Page 6: User Interface
User interface SoftKeys The CDR30 has six SoftKeys that perform different functions depending on the current view shown on the display. The function that each SoftKey performs is shown on the display directly next to the SoftKey. The following section shows an example display view with an explanation of the corresponding SoftKey functions. - Page 7 In the example this Beatles - Blue Album In some menus, e.g. the track list in MP3 mode Messages appear when, forexample, the CDR30 would open the folder so (see illustration), information is presented in the is requested to reset factory settings or a traffic that the contents of the folder are displayed.
-
Page 8: Using The Menus
Using the menus Main menus and submenus Each of the CDR30 main functions (e.g. FM mode) can be accessed using the corresponding button (e.g. ). This will open the main menu which provides the starting point for accessing the individual functions and submenus offered by the SoftKeys. -
Page 9: General Operation
The sound settings must be Important adjusted separately for each sound source. cause the sound to be switched ON or OFF. If the CDR30 is switched ON, then it will be f Press the The MUTE symbol will be shown on the button. -
Page 10: Extended Sound Settings
Setting the treble Setting the loudness (not for "BOSE" sound package) Bass 1. Press the SoftKey. Loudness increases the sound capacity by 2. Turn the rotary/push knob to select the desired accentuating the low frequencies (bass). This is value and press to confirm. most effective when the volume is set to a low level and ensures full sound reproduction whilst Setting the balance... - Page 11 AM Linear transmissions cannot be received or listened to in 3. Turn the rotary/push knob to select the desired When Linear is activated, the CDR30 switches SDVC level and press to confirm. surround sound. from an accentuated-bass sound mode (Linear...
-
Page 12: System Settings
Restoring factory settings Deleting all saved data The CDR30 can be reset to factory default It is possible to delete all data saved in the CDR30. settings. This will restore all setting to their This will cause all personal data (e.g. telephone original values (e.g. -
Page 13: Fm Mode
The station list shows all stations that are currently The Station search can be used to search for the being received by the CDR30. The station name is Switching on FM mode station that is adjacent in the frequency band to shown on the left and the program type (PTY) is the one currently set. -
Page 14: Storing And Retrieving Stations
Memory levels and memory locations Cancelling SCAN f Press the button. The CDR30 has three memory levels for FM mode (FM1, FM2 and FM3). Five stations can be stored on each memory level. Available memory locations are shown on the SoftKeys . -
Page 15: Extended Radio Functions
RDS data can be received. Extended radio functions Automatically search and store stations When the RDS function is active the CDR30 will (Autostore) f Press the automatically switch to the strongest alternative button. - Page 16 SoftKey. Traffic announcement symbols in the status The traffic announcement will be cancelled and The Radio text will be displayed. the CDR30 will switch back to the previously Return Traffic announcement ON. The CDR30 is Press the SoftKey to quit Radio text.
-
Page 17: Am Mode
Press the button to search for a station that lies below the frequency currently set. The Station search will be activated and will stop as soon as the CDR30 has found another station. AM mode... -
Page 18: Storing And Retrieving Stations
Press the button. five stations with the best reception quality on one The CDR30 has three memory levels for AM mode The submenu will be opened and the values of the memory levels (AM1, AM2 or AM3). (AM1, AM2 and AM3). Five stations can be stored... - Page 19 Press the rotary/push knob. Traffic announcement symbols in the status The traffic announcement will be cancelled and the CDR30 will switch back to the previously Traffic announcement ON. The CDR30 is active sound source (e.g. CD) . receiving a station that supports traffic announcements.
-
Page 20: Cd Mode
– Acceptable storage media: CD-R and CD-RW it is faulty or damaged. standard. – The CDR30 can be used to play back audio f Do not open the housing. – Never use CDs with stickers attached. CDs and MP3 CDs. MP3 CDs are data CDs that Stickers may become loose and damage the f Do not remove any covers. -
Page 21: Starting Cd Mode
– For multisession CDs, the content of the first session will determine how the CDR30 processes the CD. – WMA files can also be played back. These will be shown as MP3. Starting CD mode f Press the button. Single CD mode CD changer mode (optional) Load &... - Page 22 Loading an individual CD Ejecting all CDs All CDs loaded in the CDR30 can be ejected one 1. Press the button if necessary. after the other in a single operation: 2. Select the empty slot that is to be loaded with 1.
-
Page 23: Playback Functions
Playback functions Fast-forward/rewind Switching Shuffle ON/OFF f Press the Shuffle SoftKey. Fast-forward Playback Shuffle mode will be switched ON or OFF f Press and hold the SoftKey. CD playback will start automatically as soon as CD mode is selected. Rewind Repeating a track f Press and hold the button to rewind... -
Page 24: Track List
Important Headphone outputs from external sound sources For MP3 CDs the file and folder names will be have a very low volume level. If the CDR30 is Important displayed. For audio CDs the tracks will only be therefore set to a very high volume to compensate... -
Page 25: Connecting External Sources
1. Press the button repeatedly until AUX mode is activated. 2. Set the CDR30 volume to the minimum setting. 3. Connect the external sound source using the AUX socket. 4. Set the volume on the external sound source to a medium level. -
Page 26: Telephone Mode (Optional)
Interruptions to calls whilst driving Not all commercially available mobile telephones Interruptions to calls may occur whilst driving in Warning! are equally well suited for use with the CDR30 the following situations: Bluetooth interface. Operating the telephone whilst driving can –... -
Page 27: Switching To Telephone Mode
Each mobile telephone must be authorised the f Press the Bluetooth SoftKey. found devices in the Device list. first time it is used together with the CDR30. This involves entering a so-called Bluetooth Code in 7. Select the mobile telephone from the list and The following message will appear "Activating... - Page 28 Connecting an authorised mobile telephone Usually, the CDR30 will detect when a previously authorised mobile telephone is in range and will send a connection request to the mobile telephone. f Accept the request on the mobile telephone. The CDR30 will connect automatically to the mobile telephone.
-
Page 29: Telephone Calls
7. Press the SoftKey. telephone number. Quick dial symbols Press the button briefly to delete single The CDR30 will connect automatically to the Outgoing call, accepted characters. Press and hold the button to mobile telephone. Outgoing call, not accepted delete the complete entry. - Page 30 Functions available during a call Delete 4. Press the SoftKey. When a call is received by the CDR30 a ring tone Adjusting the volume 5. At the prompt, confirm with or cancel with will be heard and a message will appear on the It is possible to adjust the volume of the person display.
-
Page 31: Contacts
Contacts Continuing the call on the mobile telephone ("Private Mode") The Contacts list on the CDR30 can be used to Private 1. Press the SoftKey during a call. store telephone numbers by transferring The call will now be transferred to the mobile electronic business cards (vCards) from the telephone. - Page 32 Select the Dial SoftKey to call the number f Select a contact with the Detail symbol from displayed. The CDR30 will only display those letters for the list and press to expand. which there is a corresponding entry in the Details Contacts list.
-
Page 33: Extended Telephone Functions
Switching Bluetooth ON and OFF A list of previously authorised mobile 1. Press the button. 1. Press the button. telephones that are in range of the CDR30 will 2. Press the button. be displayed on opening the Device list. Mobile 2. Press the button. - Page 34 Connecting a mobile telephone f Press the Connect SoftKey. Adjusting the Input volume The CDR30 will connect automatically to the Input 1. Press the SoftKey. mobile telephone selected. 2. Turn the rotary/push knob to select the desired value and press to confirm.
-
Page 35: Troubleshooting
1. Press the Private SoftKey. telephone directly ("Private Mode") because the Mode" mode correctly. 2. Switch off the CDR30 as soon as the call has CDR30 retrieves the call after a short time. been transferred to the mobile telephone. Troubleshooting... -
Page 36: Index
Index ................ 9 ............6 Fader Pop-up window ..........22 ..............6 Fast-forward/rewind Prompt ..............16 AM mode ..............12 ............3 FM mode Protective circuits ................ 23 ..............11 ..............28 Language Quick dial Balance ..............9 List Bass ................. - Page 37 ............20 CD mode Shuffle (random track) (CD) ........22 .......... 19 Compact Disc (CD) Silent (MUTE) ............. 8 ......... 3 Operating the CDR30 SoftKeys ..............5 ..............15 ..............14 Sort ..............23 Track list ............8 Sound off (MUTE)
- Page 38 övriga relevanta bestämmelser Hierbij verklaart Dr. Ing. h.c.F. Porsche AG dat het toestel som framgår av direktiv 1999/5/EG. Hiermit erklärt die Dr. Ing. h.c.F. Porsche AG, dass sich das Gerät YEP0PT9918A0, YEP0PT9919A0 in overeenstemming is met de YEP0PT9918A0,YEP0PT9919A0 in Übereinstimmung mit den essentiële eisen en de andere relevante bepalingen van richtlijn...
- Page 39 ZusatzseiteRP3.fm Seite 4 Freitag, 14. März 2008 4:00 16 This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment complies with FCC and IC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio fre- quency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) exposure rules.
- Page 40 ZusatzseiteRP3.fm Seite 5 Freitag, 14. März 2008 4:00 16 Complies with No.05082/POSTEL/2007 IDA Standards PLG ID : 2418 DB102033 Contained NCC ID: CCAB07LP2550T4 CCAB07LP255AT6 The Bluetooth word mark and logo are registered of Bluetooth SIG.INK. QD ID: B013195...
