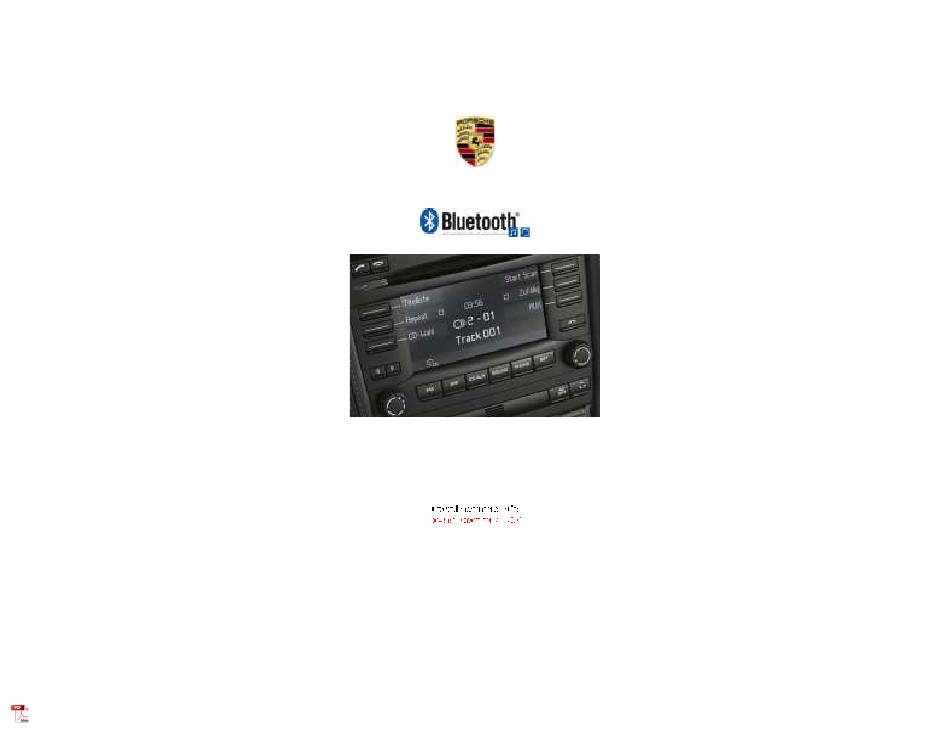

- Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 A2DIY-CDR30 QUICK START BLUETOOTH INSTALLATION GUIDE FOR PORSCHE CD30 AND CDR31 RADIOS...
- Page 2 Tip: Plugs are “keyed” which ensures proper fitment. audio device (e.g., Mp3 player, Sat radio etc.) on Porsche equipped CDR30 or CDR31 radio. Optional USB “Fast charging” kit can be added to keep power hungry devices charged and optional.
- Page 3 Secure black wire to ground. Use radio chassis screws to secure ground wire (See Fig. 3) or locate alternate ground source. Fig. 5 harness below brake lever Fig. 3 Warning: Accessory wire must be connected to accessory supply otherwise kit will not work as intended. Remember Accessory supplies may also power Run red accessory wire (See Fig.
- Page 4 Optional charging kit Fig. 7 audio cable Optional USB charger can be added to the A2DIY-HON. Should you decide to add this option, we suggest one of 3 connecting options: A. Flush to dash/panel requires drilling a ¾” hole Fig. 8 B.
- Page 5 Insert male terminal from supplied 3ft. cable (See Fig. 11) through hole Bracket Mount (No drilling) created in step 1 and connect to installation harness charging port (See Fig. 12) Locate a flat surface at location of choice within 3.2 ft. of module to mount USB support bracket (See Fig.
- Page 6 Bluetooth media remote Pairing: Ensure Bluetooth is enabled on your device (e.g., Smartphone/Tablet etc.) Press and hold pause/play until Blue LED begin flashing Scan smartphone for available devices and select BT009 from list. (Blue LED turns off). Charging: Media button built-in rechargeable 200mAH battery may last up to 10 days. Connect included USB cable to charge charging port at the back.
- Page 7 Bluetooth pairing Test operation Pairing varies among devices but basic steps are the same. This process is done Turn ignition and radio “ON” upon initial install and will not have to be repeated. 2. Repeatedly press CD/AUX button on radio until “AUX Mode” is displayed. Turn ignition and radio “ON”...
- Page 8 What can be done to fix this? Disclaimer • This product has no affiliation with Porsche, Becker or Apple It is possible accessory wire (RED) is connected to a battery source • There are no warranties expressed or implied by purchase of this product (always on) which explains why module paired initially but not thereafter.
