Transcell Technology TI-1680 Manual

Digital weight indicator
Hide thumbs Also See for TI-1680:
Table of Contents

Advertisement

Quick Links

MODEL
TI-1680
Manual
Digital Weight Indicator
Revision 3.7 December 12, 2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TI-1680 and is the answer not in the manual?

Questions and answers

Related Manuals for Transcell Technology TI-1680

Summary of Contents for Transcell Technology TI-1680

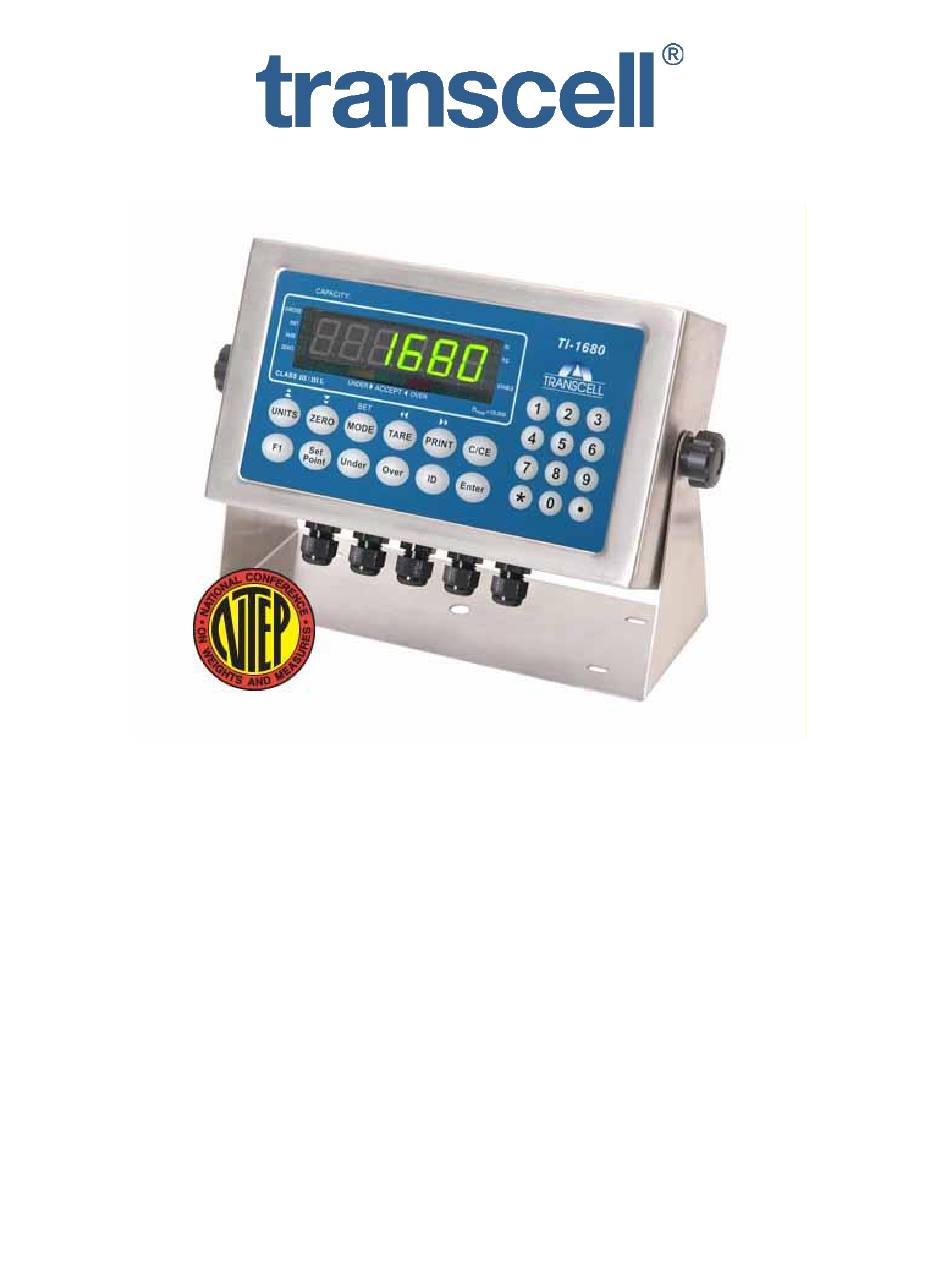

  • Page 1 MODEL TI-1680 Manual Digital Weight Indicator Revision 3.7 December 12, 2022...

  • Page 2: Table Of Contents

    Getting Started ........................... 3 Operation – TI-1680 ........................3 DISPLAY & KEYPAD DETAILS ..................... 4 INSTALLATION & OVERVIEW ....................7 Installation of TI-1680 digital indicator ..................7 RS-232 Connections (COM1) ....................9 RS-232 Connections (COM2) ....................9 Digital I/O Connections ......................10 Power Connections ........................
  • Page 3 ©Transcell Technology, Inc. 2010-2022. All rights reserved. The information contained herein is the property of Transcell Technology and is supplied without liability for errors or omissions. No part may be reproduced or used except as authorized by contract or other written permission. The copy- right and the foregoing restriction on reproduction and use extend to all media in which the information may be embod- ied.

  • Page 4: Basic Operation

    (“0”) weight display. Your scale is now ready for operation! Operation – TI-1680 Before weighing it is necessary to check if the scale is unloaded and indicating zero weight in the desired unit of measure, for example lb for pounds.

  • Page 5: Display & Keypad Details

    DISPLAY & KEYPAD DETAILS This model utilizes a 6-digit LED (Light Emitting Diode) display, an LED bar graph and eight (8) annunciators. Annunciator Display Indication The indicator is in Gross Weight mode. GROSS The indicator is in Net Weight mode. TARE A tare weight has been established in the system.
  • Page 6 The keypad comprises a total of twenty-four (24) keys: twelve (12) function keys and twelve (12) numeric keypad keys. “Function Keys” Keypad Function Cycles the displayed weight indication among pounds (lb), kilograms (kg), and a selectable UNITS third unit. This key can be disabled. Zeroes the weight display reading, provided certain conditions are met.
  • Page 7 Conditional keypad functions: TARE (Push button tare only) Indicator reading must not be in motion or displaying an error message. Gross weight must be greater than zero. ZERO Indicator reading must not be in motion or displaying an error message. Operation may be restricted by the Zero Reset Range setting (see F4 menu parameter).

  • Page 8: Installation & Overview

    The indicator must be properly configured and calibrated prior to use. Installation of TI-1680 digital indicator Find a suitable location for the indicator and use this handy guide to mount the included bracket to a wall or table:...
  • Page 9 When all connections have been made, tighten the cord grips, re-install the rear cover, and then tighten the acorn nuts. Load Cell Connections Connect your shielded load cell cable to the load cell terminal block using the table below. Load Cell Terminal Block (J1) Marking Function Marking...

  • Page 10: Rs-232 Connections (Com1)

    RS-232 Connections (COM1) Connect your RS-232 serial cable to the COM1 / RS-232 terminal block using the table below. COM1 / RS-232 Terminal Block (J10) Markings Function Signal Ground Request to Send Clear to Send TxD1 Transmit Data RxD1 Receive Data COM1 / RS-232 Terminal Block RS-232 Connections (COM2) Connect your RS-232 serial cable to the COM2 / RS-232 terminal block using the table below.

  • Page 11: Digital I/O Connections

    Digital I/O Connections Connect your control cables to the Digital I/O terminal block (J4) using the diagrams below. Digital I/O Terminal Block The outputs (OUT1 – OUT 4) can be wired to external relays (not included) to switch inductive loads on and off. The single remote input (INPUT) is triggered by simple contact closure. There are two ways to drive the external relay(s): 1.

  • Page 12: Power Connections

    The CATCHDIODE connection is not required when using solid state relays. Power Connections The TI-1680 indicator ships with a pre-installed AC line cord. It has been pre-wired to Terminal Block J7 at the factory. Simply plug the unit into a standard wall outlet.

  • Page 13: Indicator Configuration

    INDICATOR CONFIGURATION Configuration Menus The TI-1680 contains three (3) menus to configure the indicator: Setup (“F”) Menu – Configures all scale-related parameters including calibration procedures. User (“A”) Menu – Configures the serial communication ports and enables some user options Batching (“B”) Menu – Configures the I/O for process control and checkweigher functions.

  • Page 14: Setup ("F") Menu Descriptions

    3. Plug in the indicator to the AC wall outlet. The display shows “PASS_”. 4. Key-in the password (1397) and then press Enter key. The display shows “F 1”. 5. Move from one “F” menu parameter to the next by using the TARE (left) or PRINT (right) keys. For example, to go from F1 to F2, press the PRINT key.
  • Page 15 CODE/NAME DESCRIPTION SELECTION LIST 1  Selects the primary base unit to used in the calibration process and Calib. Unit the default unit for normal operation. "1" = primary unit is lb "2" = primary unit is in kg 1  Sets the interval value.
  • Page 16 CODE/NAME DESCRIPTION SELECTION LIST This sub-menu will reset all parameters in the “F” and “A” menu to the Press the ZERO Factory Reset default settings. It will not overwrite any previously saved calibration key twice to exe- (kilos) data. USE WITH CAUTION! cute Fine-tune the optional analog output board.

  • Page 17: Entering The User ("A") Menu

    Entering the User (“A”) Menu To access this menu, please follow these directions: 1. Unplug the indicator from the AC wall outlet. 2. Locate the slide switch on the rear cover and move it to the opposite position. NOTE: A metal plate conceals the slide switch; remove the two drilled-head fasteners and cover plate to access the slide switch: 3.
  • Page 18 CODE/NAME DESCRIPTION SELECTION LIST d  Selects the mode of the serial ports: This menu selection has two sub- menus; “A3U1” (COM1) and “A3U2” (COM2): both with identical se- Serial Port Mode lections. Refer to Serial Port Information for more information. AUto "d"...

  • Page 19: Setting System Time (A6)

    CODE/NAME DESCRIPTION SELECTION LIST Edit the output string. This menu selection has two sub-menus: Press ZERO key “A14U1” (COM1) and “A14U2” (COM2), both with identical selec- Edit Output to begin sequence String tions. Pressing the ZERO key to scroll down one level begins the se- quence.

  • Page 20: Diagnostics (A12)

    1. While in the User (“A”) Menu, scroll to "A7", and then scroll down once using the ZERO (down) key. The screen displays the current system date. 2. If the indicator is displaying the correct date, simply press the C/CE key to exit. 3.

  • Page 21: Entering The Batching ("B") Menu

    1. While in the User Menu mode, scroll to "A 14", and then scroll down once using the ZERO key to the A14 U1 level. 2. Use the right arrow key (PRINT) to select the A 14 U1 or A14 U2 menu. 3.

  • Page 22: Batching ("B") Menu Descriptions

    8. Once the setting you want is displayed on the screen, press the MODE (set) key to save this value and revert up to the parameter level, e.g.,” B1”. Batching (“B”) Menu Descriptions This section provides more detailed descriptions of the selections found in the Batching Menu Chart.

  • Page 23: Indicator Calibration

    INDICATOR CALIBRATION Calibration Overview You will be calibrating an actual load sensor to the indicator using live test loads. You can have up to three span calibration points, denoted as C1 through C3. The value of each subsequent calibration point should be higher than the last, e.g., the C2 value should be greater than the C1 value, etc.
  • Page 24 If the calibration was not successful, one of the following error messages will appear. • "Err0" - The calibration test load or the keyed-in load is larger than the full capacity of the instrument. Change the calibration test load or check the input data. •...

  • Page 25: Advanced Operation

    ADVANCED OPERATION Entering an ID Number The indicator stores one ID number which is retained in memory, even when unplugged from the AC wall outlet. The default ID number is 123456. 1. Press the ID key. The display will display the currently stored ID number value. If the indicator is displaying the correct ID Number, simply press the C/CE key to exit.

  • Page 26: Programming Set Points (Sp1-Sp4)

    Programming Set Points (SP1-SP4) The indicator stores up to four set points or target weights. The set point values are retained in memory, even when the indicator is unplugged from the AC wall outlet. The value of each sub- sequent set point should be higher than the last, e.g., the SP2 value should be greater than the SP1 value, etc.

  • Page 27: Gross/Net/Tare (F30 = 0)

    Gross/Net/Tare (F30 = 0) Gross weight refers to the total weight of a product and its packaging. Conversely, net weight refers to the weight of the product alone, discounting the weight of its container or packaging; and tare weight is the weight of the packaging alone. Push Button Tare 1.

  • Page 28: Accumulation (F30 = 1)

    Here is an illustration: Graph of OUTx versus Weight for SPx Active Wt ≥ SPx Wt < SPx Cutoff Accumulation (F30 = 1) The function adds multiple weighments together to obtain a total weight. Use the Over and Un- der keys to program in a Total Weight target for the checkweigher. 1.

  • Page 29: Weight Hold (F30 = 5)

    3. Key-in the APW value and then press Enter. The indicator now displays the number of pieces on the platform and the unmarked annunciator is lit. 4. Press the * key to briefly display the APW (Average Piece Weight). If the average piece weight (APW) is unknown, use the sampling method. When sampling items, always count the items in your hand and place them onto the platform all at once.

  • Page 30: Static Checkweigher (F30 = 6)

    OVER/UNDER – The upper and lower limits for the ACCEPT range are programmed into the scale thru the corresponding keys on the front panel. For instructions, see previous section Pro- gramming Over/Under Weights. TI-1680 static checkweigher operation: When the displayed weight is less than the Low (Min) value: •...

  • Page 31: Weigh-In/Weigh-Out (F30 = 8)

    FILLING (B3 = 2) – Same as Automatic Mode except for the digital output logic (see table below). CONTINUOUS (B3 = 3) – Same as Automatic Mode except that you need not press the F1 key to begin each batch. Here is a summary table of the digital output states for all modes except Filling: Weight Reading OUT1...
  • Page 32 Weigh-Out With the truck on the scale, press the F1 key. “Ent Id” will be displayed. Key-in in the vehicle ID number (up to 999999) and then press Enter. The indicator will display “OUt”. If a printer is connected, a ticket will automatically be printed. Print all ID numbers Press the ID key.
  • Page 33 Weigh-Out - Using Stored Tare Weight With the truck on the scale, press the F1 key. “Ent Id” will be displayed. Key-in an ID number and then press the Enter key. The indicator will display “Out”. If a printer is connected, a ticket will be printed.

  • Page 34: Serial (Com) Port Information

    SERIAL (COM) PORT INFORMATION SERIAL PORT MODES DEMAND DUPLEX MODE The Demand Duplex Mode provides a two-way serial transmission mode. In this mode, the output information is transmitted on demand; either by pressing the PRINT key or upon receiving a recognized command from a host. NOTE: Ensure that your cabling has a crossover (null modem) and contains the proper handshaking lines.

  • Page 35: Output Strings

    OUTPUT STRINGS All output strings are editable via the A14 function. Here is a summary table of the Print Com- mands. Printing Action (Abbrev.) Parameter Gross weight (GWT) Net weight (NWT) Tare weight (TWT) Print the data on screen (CWT) Units (lb, kg, PCS, etc.) (UN) Date...
  • Page 36 Condec Demand String Condec Demand String is designed for two-way communication. <STX> <POL> xxxxx.xx <SP> <LB/KG> <SP> <GR/NT> <CR> <LF> Start Weight Data Space Space Carriage Transmission Return Units: Gross/Net: Line Polarity: LB = pound GR = Gross Feed <SP> = Positive KG = kilogram NT = Net "–"...

  • Page 37: Error Messages

    ERROR MESSAGES The weighing capacity of the scale has been ex- ceeded. (Gross overload) The weight on the scale is below Gross zero. Press the ZERO key. Err 3 Non-volatile memory read error. Err 4 Non-volatile memory write error. Err 6 Keyboard tare value exceeds scales capacity.

  • Page 38: Troubleshooting

    Transcell Tech Support: (847) 419-9180 Limited 12-month Warranty This product is warranted by Transcell Technology against manufacturing defects in material and workmanship under normal use for twelve (12) months from the date of purchase. For complete warranty details and service information, please contact us at the address below.
