Transcell Technology TI-500 Manual

Oem force data instrument
Hide thumbs Also See for TI-500:
Table of Contents

Advertisement

Quick Links

Download this manual
MODEL
TI-500 FDI-02 (OEM)
Manual
Force Data Instrument
Version 2.0 BETA
October 3, 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TI-500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transcell Technology TI-500

Summary of Contents for Transcell Technology TI-500

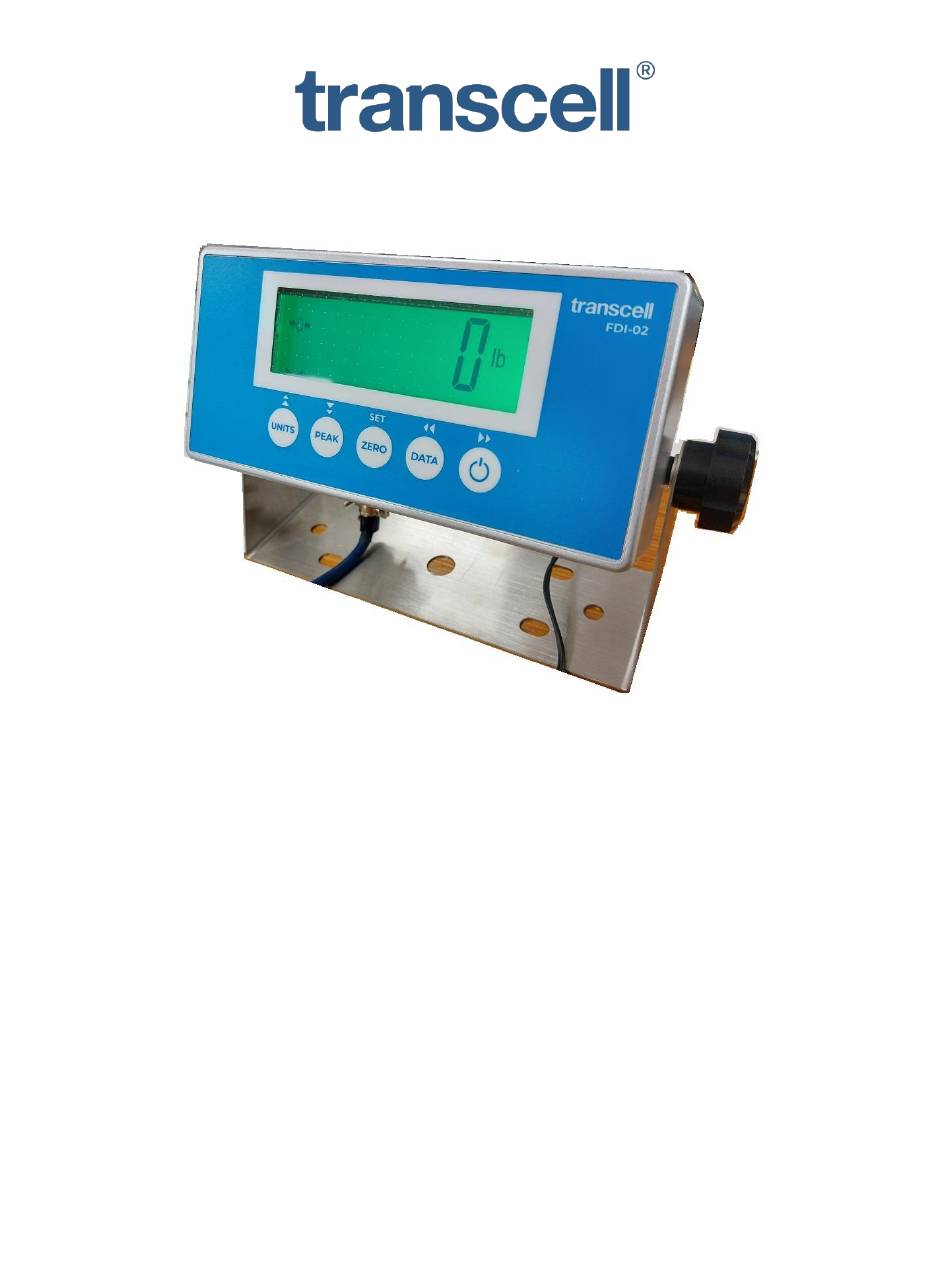

  • Page 1 MODEL TI-500 FDI-02 (OEM) Manual Force Data Instrument Version 2.0 BETA October 3, 2023...

  • Page 2: Table Of Contents

    © Transcell Technology, Inc. 2012-2023. All rights reserved. The information contained herein is the property of Transcell Technology and is supplied without liability for errors or omissions. No part may be reproduced or used except as authorized by contract or other written permission. The copy- right and the foregoing restriction on reproduction and use extend to all media in which the information may be embod- ied.

  • Page 3: Display & Keypad Details

    DISPLAY & KEYPAD DETAILS This instrument uses a 6-digit LCD (Liquid Crystal Display) with adjustable LED backlight. The Table below summarizes the display annunciators. Symbol Display Indication ➔0 Displays when the instrument reading is at Zero. The instrument is in Peak Hold mode. The displayed force reading is in pounds (lbf).
  • Page 4 The keypad comprises five (5) function keys. Marking Keypad Function Units Selects the displayed unit of measure, e.g., lbf, kgf and N. Peak Selects the peak hold display mode of the instrument, e.g., live data, positive peak and negative peak. (This function must first be enabled using the nn36 parame- ter) Zero Zeroes the force display reading.

  • Page 5: Installation & Overview

    INSTALLATION & OVERVIEW Remember that the installer is ultimately responsible to assure that a particular installation will be and remain safe and operable under the specific conditions encountered. The instrument must be properly configured and calibrated prior to use. Installation Find a suitable location for the instrument and use the included bracket to mount the unit to a wall or table.

  • Page 6: Getting Started

    The INSTRUMENT features one full duplex RS-232 serial port, designed for connection to a computer or a serial printer. The same port may be also used as a simplex, RS-232 port de- signed for connection to a remote display. DSUB9 Connector Pin No.

  • Page 7: Instrument Configuration

    INSTRUMENT CONFIGURATION Configuration Menus The TI-500 FDI-02 contains four (4) menus to configure the instrument: Functions (“nn”) Menu – Configures all measurement related parameters. System (“-S-”) Menu – Configures all system related parameters. Calibration (“CAL”) Menu – Contains the calibration procedures.

  • Page 8: Functions ("Nn") Menu Descriptions

    5. Once you have arrived at the proper “nn” menu parameter, e.g.,” nn 1”, press the PEAK (down) key once to arrive at the selection level. The instrument displays the current parameter setting. 6. If there is a selection list, scroll thru the available parameter settings, use the DATA (left) or ON//OFF (right) keys.

  • Page 9: Entering The System ("S") Configuration Menu

    CODE/NAME DESCRIPTION SELECTION LIST This sub-menu will reset all instrument parameters to the default set- Press the PEAK Full Factory tings. It will also overwrite any previously saved calibration data. USE key twice to exe- Reset WITH EXTREME CAUTION! cute Shows live AD Counts for Troubleshooting.

  • Page 10: Entering The Calibration ("Cal") Configuration Menu

    CODE/NAME DESCRIPTION SELECTION LIST Selects the automatic power off time, expressed in minutes of inactiv- Key-in Auto Power Off ity (keys and force measurement change). Pressing the PEAK key to 0 to 30 scroll down one level begins the sequence. 30 ...

  • Page 11: Calibration ("Cal") Menu Descriptions

    Calibration (“CAL”) Menu Descriptions This section provides more detailed descriptions of the selections found in the Calibration Menu Chart. Factory-set defaults are shown in bold with a checkmark; (√). CODE/NAME DESCRIPTION SELECTION LIST 1  CAL1 Sets the force unit of measure to be used in the calibration process. Calibration "1"...

  • Page 12: Entering The Communication ("Conn") Configuration Menu

    CODE/NAME DESCRIPTION SELECTION LIST CAL12 Places instrument into reference (mV/V) calibration mode. Factory Press PEAK key Reference Use Only. Password protected. to begin sequence Calibration CAL13 Places instrument into view calibration mode. Press PEAK key View Calibra- to begin sequence tion Entering the Communication (“Conn”) Configuration Menu 1.
  • Page 13 CODE/NAME DESCRIPTION SELECTION LIST 8_n_1  Con2 Selects the number of data bits and parity for the COM1 serial port. Data Bits, "8_n_1" = 8 data bits with no parity bit and one stop bit 8_n_2 Parity and "8_n_2" = 8 data bits with no parity bit and two stop bits 7_n_1 Stop Bits "7_n_1"...

  • Page 14: Instrument Calibration

    INSTRUMENT CALIBRATION Calibration Overview There are two ways to calibrate the instrument: 1. Live calibration: You will be calibrating an actual load sensor to the instrument using live test loads. You can have up to seven positive calibration points and up to seven negative calibration points.

  • Page 15: Live Span Calibration Instructions (Cal7)

    Live Positive Span Calibration Instructions (CAL7) 1. While in the Calibration menu, scroll to "CAL 7", and then scroll down once using the PEAK (down) key. The indicator will display ‘Fit’. 2. Assure a no-load condition and then press the ZERO (set) key to save the value. After a brief period, the instrument will then prompt you to enter the data for the first calibration point (C1).

  • Page 16: Live Zero Calibration Instructions (Cal6)

    3. Apply the first test load to the force sensor. 4. Use the four directional keys to the actual positive force value, e.g., 1000.0 lbf. Increase the flashing digit by pressing the UNITS key. Decrease the flashing digit by pressing the PEAK key.

  • Page 17: Key-In (Mv/V) Positive Calibration Instructions (Cal10)

    3. Press the ZERO (set) key to save the value. The indicator briefly displays ‘Pt2’ and then moves to the next calibration point (C2). 4. Repeat steps 2 and 3 to enter data for the remainder of the positive calibration points. 5.

  • Page 18: Key-In (Mv/V) Negative Calibration Instructions (Cal11)

    Key-in (mV/V) Negative Calibration Instructions (CAL11) You will be entering data for up to six negative calibration points. These calibration points are denoted as C1 through C6. The absolute value of each subsequent calibration point should be higher than the last. Each calibration point requires entry of two values: •...

  • Page 19: View Calibration Mode Instructions (Cal13)

    1. While in the Calibration menu, scroll to "CAL 12", and then scroll down once using the PEAK (down) key. 2. The indicator will briefly display ‘CA-rf2’ followed by live A/D count data. 3. Set the connected load cell simulator to 0.0 mV/V 4.
  • Page 20 To continue displaying the rest of the calibration information - Ptx and PCx, e.g., Pt2 and PC2 for C2, etc. - keep pressing the PEAK (down) key until you reach the end of the list and then press the PEAK (down) key once more to arrive back at the top of the UCAL10.

  • Page 21: Advanced Operation

    ADVANCED OPERATION Peak Hold Mode This mode is used to capture peak forces measured during a specific process. These peak force values are held (frozen) on the screen. A common application is determining the breaking point of a part or assembly. The instrument captures both positive and negative peak forces. Peak forces are not retained when the instrument is powered OFF.

  • Page 22: Serial Port Information

    SERIAL PORT INFORMATION SERIAL PORT MODES DEMAND DUPLEX MODE The Demand Duplex Mode provides a two-way serial transmission mode. In this mode, the output information is transmitted on demand; either by pressing the DATA key on the instrument’s front panel or upon receiving a recognized command from a host de- vice (i.e., computer).

  • Page 23: Output Strings

    OUTPUT STRINGS TEXT PRINT TICKET The Text Print Ticket is designed specifically for a serial printer. GROSS 1000.0 lb STRING FORMAT 1 (Condec Demand String) String Format 1 is designed for two-way communication. <STX> <POL> xxxxx.xx <SP> <LB/KG> <SP> <GR/NT> <CR>...

  • Page 24: Specifications

    SPECIFICATIONS Instrument Specifications Enclosure: Aluminum/ABS enclosure (IP54) Display: 0.8”, 6-digit LCD with LED backlight Upgraded A-to-D converter (AD-02): Max. Signal Input: ±4.5 mV/V Resolution: Up to 4,800,000 Internal Counts @ 4.5 mV/V Conversion Rate: 1 to 1200 Hz, selectable Serial Port: Full Duplex RS-232C Operating temperature: 14°F to 104°F (-10°C to 40°C) Battery Power - 4 AA alkaline...

  • Page 25: Troubleshooting

    (12) months from the date of purchase. For complete war- ranty details and service information, please contact us at the address below. Contents subject to change without notice. Transcell Technology, Inc. 975 Deerfield Parkway Buffalo Grove, IL 60089 800.503.9180...
