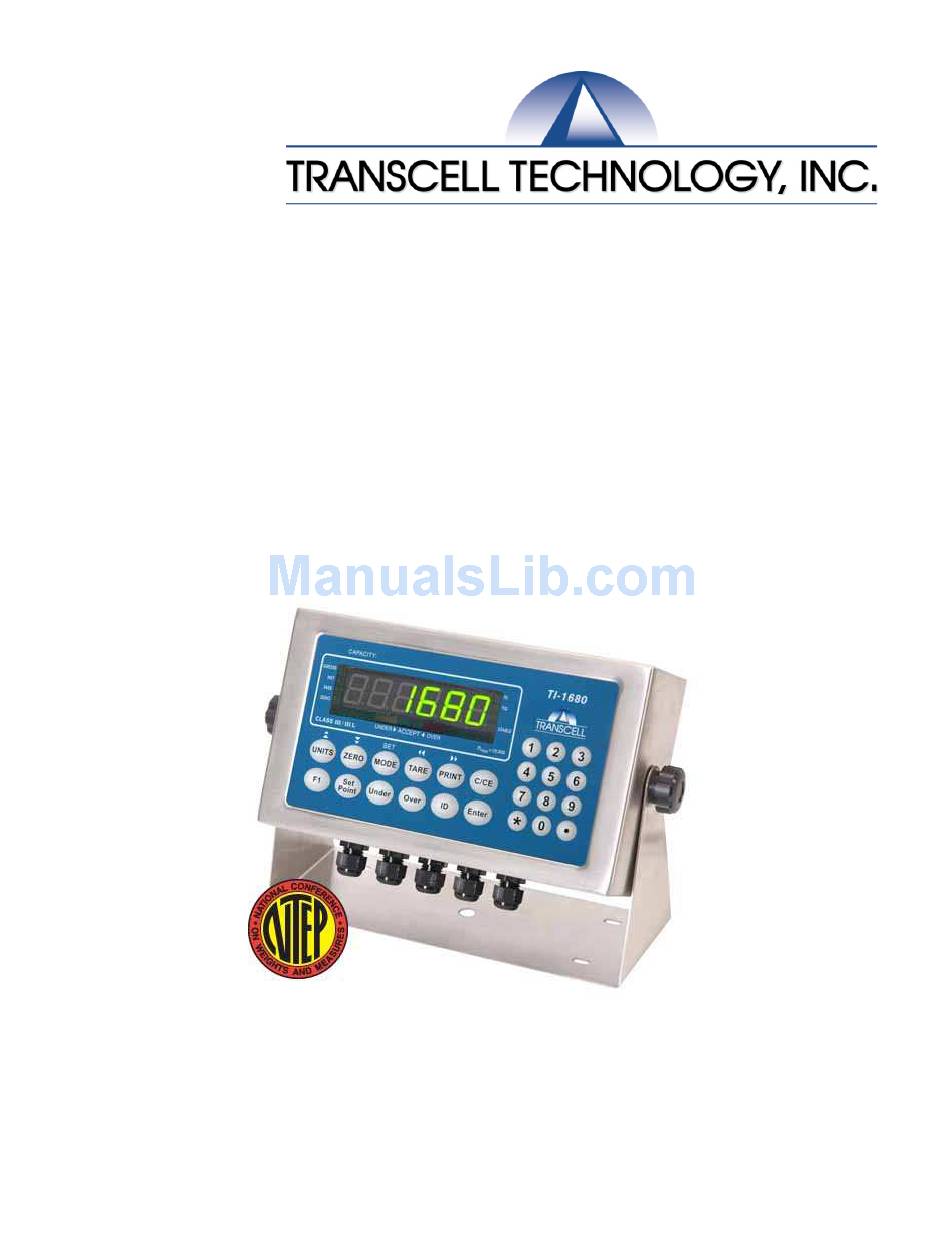

- Page 1 TI-1680 DIGITAL WEIGHT INDICATOR Setup / Operation Manual Revision 1.31 975 Deerfield Parkway Buffalo Grove, IL 60089 March 22, 2013 Tel (847) 419-9180 Fax (847) 419-1515 http://www.transcell.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Page INTRODUCTION ..............................1 FCC NOTE ................................1 INSTALLATION..............................1 PREPARATION ..............................1 CONNECTIONS ..............................2 CONNECTING THE WEIGH PLATFORM ....................... 2 CONNECTING THE SERIAL I/O DEVICE (COM1) ..................2 CONNECTING THE CONTROL I/O ......................3 CONNECTING THE RS-232 PORT (COM2) ....................3 CONNECTING THE OPTIONAL WLAN (COM2) .................. - Page 3 ©Transcell Technology, Inc. 2010-2013. All rights reserved. The information contained herein is the property of Transcell Technology and is supplied without liability for errors or omissions. No part may be reproduced or used except as authorized by contract or other written permission. The copyright and the foregoing restriction on reproduction and use extend to all media in which the information may be embodied.
-
Page 4: Introduction
Electrical Power The TI-1680 indicator has been designed to operate from 100 to 240 VAC at 50/60 Hz. All units ship with the appropriate power plug for its area of intended use. To avoid electrical noise interference and/or stray AC electrical transients, try to operate the indicator from a circuit separate from any equipment containing inductive devices such as a contactor coil, solenoid, relay coil, or motor. -
Page 5: Connections
CONNECTIONS For the TI-1680 model, the rear cover must first be removed to make the appropriate connections to the weigh platform, serial I/O device and other peripheral equipment. To remove the rear cover, simply remove the six acorn nuts that secure it to the main enclosure and set aside. -
Page 6: Connecting The Control I/O
Black CONNECTING THE CONTROL I/O The TI-1680 indicator features one remote input and four output terminals for connection to process control equipment. A +5VDC terminal is also included for connection to the outputs if an external supply is not available. -
Page 7: Connecting The Optional Rs-485 (Com2)
Please see Appendix E for more information on this option. CONNECTING THE POWER SUPPLY The TI-1680 indicator ships with an AC line cord attached to the indicator. It has been pre-wired on J7 at the factory. Simply plug the unit into a standard wall outlet. -
Page 8: Configuration
CONFIGURATION OVERVIEW The indicator contains two main configuration menus: • The Setup (“F”) menu, which configures and calibrates the indicator to your weigh platform • The User (“A”) menu, which configures the serial communication ports and enables some user options •... -
Page 9: Menu Structure
MENU STRUCTURE All menus consist of a top level (heading) and a secondary level. The top level contains the code (e.g. F1) for the parameter to be configured. The secondary level contains the selection list or allows access to a programming sequence. -
Page 10: Setup Menu Descriptions
SETUP MENU DESCRIPTIONS This section provides more detailed descriptions of the selections found in the Setup Menu Chart. Factory- set defaults are shown in bold; (NA) for North America and ( ) for Europe. € NOTE: Some selections are subject to local legal metrology regulations CODE/NAME DESCRIPTION SELECTION LIST... - Page 11 CODE/NAME DESCRIPTION SELECTION LIST Actuates the function that allows you to enter a multiplier for the Key-in Custom Unit custom unit., i.e. the conversion factor that you would divide the 0.0001 - 1000 Multiplier calibration unit by in order to obtain the custom unit of weight. 1.0 (NA/€) Pressing the ZERO key to scroll down one level begins the sequence.
- Page 12 CODE/NAME DESCRIPTION SELECTION LIST 0√ √ √ √ (NA/€) Used to select one special application feature, subject to local legal Special requirements. 0 - 8 Application “0” = None (Gross/Net), “1” = Accumulation, “2” = Remote Display, “3” = Piece Count, “4” = Percentage , “5”...
-
Page 13: Setup Menu Procedures
SETUP MENU PROCEDURES This section provides instructions for all of the Setup Menu procedures except F16 through F20. Those procedures can be found in the Calibration section. Key-in Operation (F1, F5, F11, F31, F34 and F36) Follow these general instructions for those parameters requiring keyed-in data: While in the Setup mode, scroll to "F xx", and then scroll down once using the ZERO key. -
Page 14: User Menu Descriptions
USER MENU DESCRIPTIONS This section provides more detailed descriptions of the selections found in the User Menu Chart. Factory-set defaults are shown in bold; (NA) for North America and ( ) for Europe. € CODE/NAME DESCRIPTION SELECTION LIST Selects the baud rate for data transmission through the serial port. 600, 1200, 2400, Baud Rate This menu selection has two sub-menus;... - Page 15 CODE/NAME DESCRIPTION SELECTION LIST Selects the printed format for time. This menu selection has two sub- 0 (NA) Time Format menus; “A8U1” (COM1) and “A8U2” (COM2), both with identical 1 (€) selections. "0" = AM/PM "1" = 24 Hr Selects the printed format for date. This menu selection has two sub- 1 (NA) Date Format menus;...
-
Page 16: User Menu Procedures
USER MENU PROCEDURES This section provides instructions for all of the User Menu procedures. Set Time (A6) Your indicator will keep track of the current time for you, which can then be printed on the print ticket. Use this procedure to set the time, which must be entered in military (24-hr) format. For example, for 9:00 AM, you would enter 09.00.00. - Page 17 Diagnostics (A12) Here is a brief description of each test mode: A12U1 Display Test – Lights up all display segments, counting down from 666666 to 11111. Test ends automatically when complete. A12U2 ADC Test – Shows internal A/D converter counts – useful for troubleshooting weighing issues.
-
Page 18: Batch Menu Descriptions
BATCH MENU DESCRIPTIONS This section provides more detailed descriptions of the selections found in the Batch Menu Chart. Factory-set defaults are shown in bold; (NA) for North America and ( ) for Europe. € CODE/NAME DESCRIPTION SELECTION LIST Use this menu to assign a keyboard function to the input terminal 0 (NA/€) Input Function (J4:3). -
Page 19: Exiting The Menus
EXITING THE MENUS Exit any configuration menu by pressing the C/CE key. To exit the PASS screen, move the slide switch back to its original position. The display will go through a digit check, and then settle into Normal Operating mode. -
Page 20: Calibration
CALIBRATION CALIBRATION OVERVIEW If your indicator was shipped as a complete scale, then calibration is not necessary. Please check with your installer or supplier if you are unsure. Transcell recommends having your weighing equipment checked by a qualified scale technician at least once a year depending on its intended use and working environment. -
Page 21: View Calibration Values (F18)
6. At this time it is suggested that the calibration values be recorded for future use (see next section). If the calibration was not successful, one of the error messages below will appear. Take the indicated action to correct the problem, and then perform a new calibration. "Err0"... -
Page 22: Key-In Zero Calibration Value (F19)
KEY-IN ZERO CALIBRATION VALUE (F19) Note: This procedure is intended for emergency use only in the case of non-volatile memory loss. A valid zero calibration value, obtained from a successful F16 calibration procedure, must be used. 1. While in the Setup mode, scroll to "F 19" and then scroll down once using the ZERO key. The display will momentarily show "CAL 0", followed by a value of zero 2. -
Page 23: Display
Checkweighing mode only – indicates that the weight on the platform is above the target weight TI-1680 Annunciator Definitions NOTE: When not in checkweighing mode, the tri-color LED bar graph shows the status (ON/OFF) of each of the four outputs:... -
Page 24: Keyboard
KEYBOARD The keyboard is composed of a total of twenty-four (24) keys. There are twelve (12) function keys and twelve (12) numeric keypad keys. FUNCTION KEYS UNITS – This key toggles the indicator among lb, kg and third unit if enabled in the Setup (“F”) menu. -
Page 25: Numeric Keys
ID –This key is used to enter in a system ID number which can be sent out to any serial port (COM1 or COM2). See Entering an ID Number for more information. ENTER – Main key used to enter information or selections into the indicator. NUMERIC KEYS 0 - 9 –... -
Page 26: Entering A Known Tare Weight
ENTERING A KNOWN TARE WEIGHT 1. Select the weighing unit (lb or kg) of the known tare weight by pressing the UNITS key until that unit is indicated on the display. 2. Using the front panel numeric keys (0-9), enter the known tare weight. (decimal point position is fixed) 3. -
Page 27: Programming Over/Under Values
5. Repeat Step 3 and 4 until all four values are programmed. If you do not wish to utilize a set point, then please set its value to zero. The indicator returns to normal operating mode at the completion of the programming sequence. PROGRAMMING OVER/UNDER VALUES For certain applications, (see next section) the indicator supports one ‘over’... -
Page 28: Advanced Scale Operation
ADVANCED SCALE OPERATION APPLICATION (F30) SUMMARY The following table summarizes the various parameters and operation for each application programmed in the F30 setup menu: Set Point key Over/Under Keys Output Function * key operation F1 key operation Gross/Net/Tare (0) Active (4) Not active Standard Outputs No function... -
Page 29: Standard Outputs
STANDARD OUTPUTS Each output tracks its corresponding set point. For example, Output 1 tracks Set Point 1; Output 2 tracks Set Point 2, etc. Note that the outputs continuously track the weight, i.e. they will re-fire when the weight drops back below a set point. For in-flight compensation, use the Cutoff delay (B6) Graph of OUTx versus Weight for SPx... -
Page 30: Percentage Application (F30 = 4)
The indicator uses the sampling method to determine the average piece weight (APW) of the items you wish to count. When sampling items, always count the parts in your hand and place them on the platform all at once. If the APW of the items is too light or the total weight of the sample is too light, accuracy cannot be guaranteed. -
Page 31: Hold Application (F30 = 5)
The indicator uses the sampling method to determine the reference weight. This indicator does not retain the piece weight when powered down. 1. Press the F1 key. The screen shows “100 -” which means “100%”. 2. Place the reference weight on the platform and allow the weight indication to stabilize. 3. -
Page 32: Batching Application (F30 = 7)
The batching application is designed for gain-in weight material batching. The TI-1680 will allow batching of up to four materials using in-flight compensation or up to two material using fast/slow valves. The TI-1680 does not have a provision for dumping the batch when complete, so this must be done manually. -
Page 33: Truck Weigh In/Weigh Out Application (F30 = 8)
The truck weigh in/weigh out application is designed for weighing material being loaded or unloaded on a vehicle. The TI-1680 will allow for up 256 individual vehicles to be weighed in & out. All instructions can be found below. After a successful operation, the indicator will automatically revert back to normal operating mode. -
Page 34: Legal For Trade Sealing
Truck In – Store keyboard tare weight NOTE: First make sure F38 (permanent tare) is set to ‘1’ With the truck on the scale, press the F1 key. “Ent Id” will be displayed. Use the 0-9 keys to key-in an ID number and then press the Tare key. The indicator will display “In”... -
Page 35: Appendix A: Specifications
APPENDIX A: SPECIFICATIONS ANALOG SPECIFICATIONS Full Scale Input Signal ±3.125 mV/V 0.3 µV / grad Minimum Sensitivity - Non trade 0.6 µV / grad Minimum Sensitivity - H-44 Input Impedance 30MΩ, typical Internal Resolution Approximately 130,00 counts @ 1mV/V input Display Resolution 50,000 display division max Measurement Rate... -
Page 36: Appendix B: Serial Port Information
APPENDIX B: SERIAL PORT INFORMATION SERIAL PORT MODES DEMAND DUPLEX MODE The Demand Duplex Mode provides a two way serial transmission mode. In this mode, the output information is transmitted on demand; either by pressing the PRINT key on the indicator’s front panel or upon receiving a recognized command from a host device (i.e. -
Page 37: Output String
OUTPUT STRING The indicator contains one editable output string (print format). You can simply choose one of three output strings already created for you or you can edit one of the pre-defined output strings to suit your application. Output strings are created by assigning a hexadecimal value to a decimal address. The addresses start at 0 (displayed as 00) and end at 94. -
Page 38: Text Print Ticket
TEXT PRINT TICKET The Text Print Ticket is designed specifically for a serial printer. ID.NO. 123456 DATE 01/28/09 TIME 10:23 AM GROSS 1067 lb TARE 67 lb 1000 lb Address Value Chart Address Value Charts (Dec) (Hex) (Dec) (Hex) (GWT) (UN) (PRID) ‘... -
Page 39: String Format 1 (Condec Demand String)
STRING FORMAT 1 (Condec Demand String) String Format 1 is designed for two-way communication. <STX> <POL> xxxxx.xx <SP> <LB/KG> <SP> <GR/NT> <CR> <LF> Start Weight Data Space Space Carriage Transmission Return Units: Gross/Net: Line Polarity: LB = pound GR = Gross Feed <SP>... -
Page 40: String Format 2 (Condec Continuous String)
STRING FORMAT 2 (Condec Continuous String) String Format 2 is designed for one-way communication, e.g. remote display. <STX> <POL> xxxxx.xx <L/K> <G/N> <STAT> <CR> <LF> Gross/Net: Start Weight Data Carriage G = Gross Transmission Return N = Net Polarity: Line <SP>... - Page 41 Edit Output String (A14) The programming format is AA__vv where AA is the address (00 to 94) and vv is the programming value (remember a value can be either a printable ASCII character or a print command.) 1. While in the User Menu mode, scroll to "A 14", and then scroll down once using the ZERO key to the A14 U1 level.
-
Page 42: Appendix C: Displayed Error Codes
APPENDIX C: DISPLAYED ERROR CODES CODE MODE MEANING / POSSIBLE SOLUTION Normal Operating Gross Overload. A weight greater than the rated capacity has been Mode applied to the scale. Remove the weight from the platter or try re- calibrating the scale. Otherwise, check for a bad load cell connection or possible load cell damage due to overloading. -
Page 43: Appendix D: Wiring External Output Relays
The outputs can be wired thru an external relay(s) (not included) to switch on/off inductive loads. There are two ways to drive the external relay(s): 1. Using internal power supply from TI-1680 2. Using an external power supply (not included) If you are using the internal power supply, then your relay must be able to operate with 5VDC. -
Page 44: Inputs
External Power Supply Indicator External Relay External Power V LOAD CATCH DIODE OUTPUTx Ctrl (*) External power source must be: 5V <V ≤ 24V NOTE: The CATCHDIODE connection is not required when using a solid state relay(s). INPUTS You can wire a remote switch (not included) to act as the batch start/stop switch. This can be used in addition to - or instead of - the front panel UNITS key. -
Page 45: Appendix E: Info On Analog Output Option
APPENDIX E: INFO ON ANALOG OUTPUT OPTION GENERAL INFORMATION This Digital indicator provides one passive 4-20 mA or active 0-5 V analog output in lieu of the UART#1 serial port. Default setting is passive 4-20 mA. The digital indicator provides an analog output on two wires designated AA and BB. The output tracks the weight displayed on the indicator, so you must first have the indicator configured and calibrated correctly in order for it to work properly. - Page 46 Passive 4-20 mA Analog Output A 12-bit DAC is used along with a current loop transmitter. Since the output is passive, you will need an external 24 VDC power supply. You can get the output through pins 2 and 3 of the D-SUB9 connector.
- Page 47 Here is how to test to see if it is working correctly: 1. Configure and calibrate the indicator to your load device. Ensure the weighing function is working properly. 2. Connect the AA and BB output wires to an external 24 VDC power supply and 250 resistor as shown in the above test diagram.
